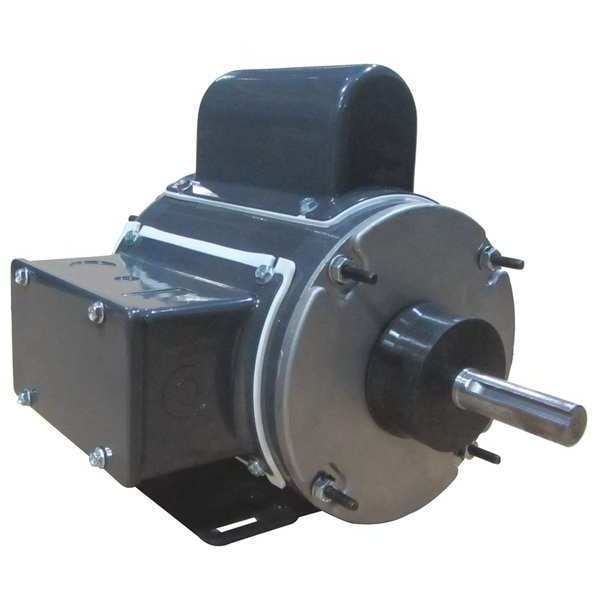

Dayton Definite Purpose HVAC Motor, 3/4 hp VED140U2913.6G - main

Definite Purpose HVAC Motor, 3/4 hp

  • Mfr # VED140U2913.6G

  • Zoro # G7468925

product price:  $431.99
/ea
Free Shipping & Returns

Key Features

For Use With Mfr. Model Number
10D968D, 10D987D, 10D990D
Fits Brand
Dayton
For Use With
Grainger Item Number: 10D968D, 10D987D, 10D990D; Mfr. Model Number: 10D968D, 10D987D, 10D990D
Insulation Class
B
Frame Material
Steel
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
VED140U2913.6G
Zoro #
G7468925
UPC #
00194484307714
Country of Origin
China

Dimensions

Shaft Length
240 mm
Shaft Diameter
15 7/8 mm
Frame Size
48YZ
Length Less Shaft
6 13/16 in
Bolt Circle Diameter
130 mm
Body Diameter
144 mm

Details

For Use With Mfr. Model Number
10D968D, 10D987D, 10D990D
Fits Brand
Dayton
Item
Motor
For Use With
Grainger Item Number: 10D968D, 10D987D, 10D990D; Mfr. Model Number: 10D968D, 10D987D, 10D990D
Insulation Class
B
Frame Material
Steel
Compatible Manufacturer Part Number
10D968D, 10D987D, 10D990D
Usable @ 200V
Not Usable at 200V
Duty
Continuous
Efficiency Rating
Standard Efficiency (IE1)
Mounting Position
Horizontal
Bearing Type
Ball
Compatible Brand
Dayton
Conduit Box Position
F2
Motor Design
Permanent Split Capacitor
Usable @ 208V
Not Usable at 208V
Conduit Box Location
Exterior
Ambient Temperature - Maximum
40 Degrees C
Product Type
Definite Purpose HVAC Motor
Phase
Single
Drive Type
Direct Drive
Full Load Current @ 60 Hz
7.0/3.5 A
Manufacturers Warranty
1 yr
Frequency
60 Hz
Capacitor Required
Capacitor Included

Description

Definite Purpose HVAC Motor, Single Phase, Motor Design Permanent Split Capacitor, 3/4 hp HP, Nameplate RPM 1,700 RPM, Voltage 115/230V AC, Full Load Amps 7.0/3.5 A, 48YZ Frame, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, 60 Hz Hz, Ins. Class B, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, Motor Mounting Position Horizontal, Motor Frame Material Steel
