  13. Definite Purpose Magnetic Contactor, 120V AC, 3 P, Non-Reversing, 3 Phase, Box Lug

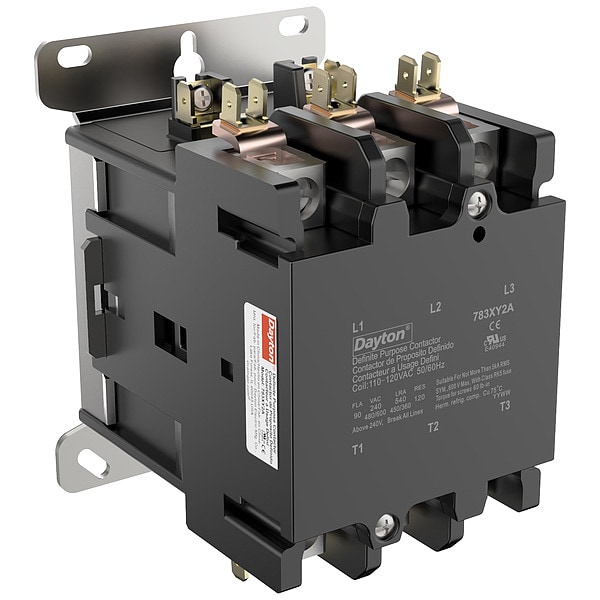

Dayton Definite Purpose Magnetic Contactor, 120V AC, 3 P, Non-Reversing, 3 Phase, Box Lug 783XY2 - main

Definite Purpose Magnetic Contactor, 120V AC, 3 P, Non-Reversing, 3 Phase, Box Lug

  • Mfr # 783XY2

  • Zoro # G007195089

product price: $156.99
/ea
Free Shipping & Returns

Key Features

Coil Voltage
120V AC
Number of Poles
3
Reversing Capability
Non-Reversing
Full Load Current - Resistive
120 A
Full Load Current - Inductive
90 A
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
783XY2
Zoro #
G007195089
UPC #
-
Country of Origin
China

Dimensions

Height
4.31 in
Width
3.5 in
Depth
5.03 in
Mounting Hole Distance - Height
4.53 in
Overall Depth
5.03 in
Mounting Hole Distance - Width
2.68 in
Overall Height
4.31 in
Overall Width
3.5 in

Details

Item
Definite Purpose Magnetic Contactor
Coil Voltage
120V AC
Number of Poles
3
Reversing Capability
Non-Reversing
Full Load Current - Resistive
120 A
Full Load Current - Inductive
90 A
Phase
3
Terminal Connection Type
Box Lug
HP @ 3 Phase - 575V
50 hp
Enclosure NEMA Rating
No Enclosure
Reversing
No
Standards
CE, cRUus
Maximum Voltage Rating
600V AC
NEMA Enclosure Rating
No Enclosure
Number of Normally Closed Main Contacts
0
Mechanical Operating Durability
500,000
Number of Terminals
8
Response Time
30 msec
Horsepower @ Three Phase - 480V AC
50 hp
Horsepower @ Single Phase - 120V AC
7 1/2 hp
Number of Normally Open Main Contacts
3
Horsepower @ Three Phase - 600V AC
50 hp
Horsepower @ Three Phase - 208V AC
25 hp
Auxiliary Contact Module Capacity
2
Mounting Style
Through Panel
Maximum Operating Temperature
158 Degrees F
Status Indicator
No Indicator
Electrical Operating Durability
200,000
Contact Material
Silver Cadmium Oxide
Mounting Postion
Horizontal, Vertical
Horsepower @ Three Phase - 240V AC
30 hp
Locked Rotor Load
360 A @ 600V AC, 450 A @ 480V AC, 540 A @ 240V AC
Frequency
50/60 Hz
Horsepower @ Single Phase - 240V AC
20 hp
Minimum Operating Temperature
-40 Degrees F
Series
783X

Description

Definite Purpose Magnetic Contactor, LED Lighting Current Rating Not Applicable, Coil Voltage 120V AC, Number of Poles 3, NEMA Enclosure Rating No Enclosure, Tungsten Lighting Current Rating Not Applicable, Fluorescent Lighting Current Rating Not Applicable, Reversing Capability Non-Reversing, Frame Size Not Applicable, Horsepower @ Single Phase - 240V AC 20 hp, Horsepower @ Single Phase - 120V AC 7 1/2 hp, Full Load Current - Resistive 120 A, Full Load Current - Inductive 90 A
