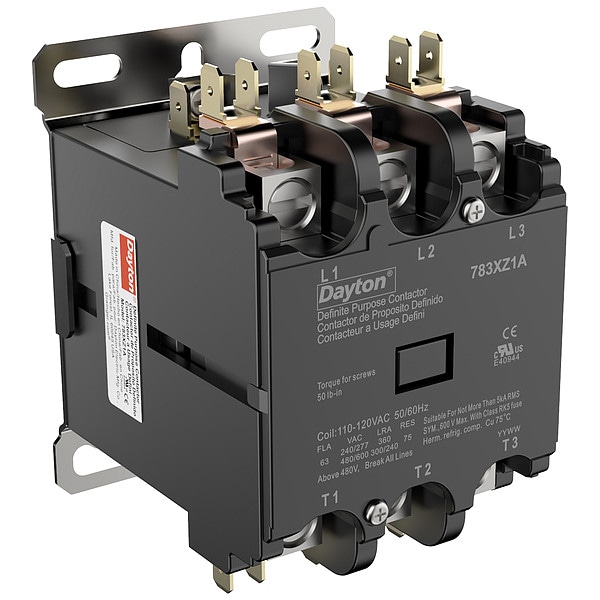

Dayton Definite Purpose Magnetic Contactor, 120V AC, 3 P, Non-Reversing, 3 Phase, Box Lug 783XZ1 - main

Definite Purpose Magnetic Contactor, 120V AC, 3 P, Non-Reversing, 3 Phase, Box Lug

  • Mfr # 783XZ1

  • Zoro # G507195091

product price: $98.69
/ea
Free Shipping & Returns

Key Features

Coil Voltage
120V AC
Number of Poles
3
Reversing Capability
Non-Reversing
Full Load Current - Resistive
75 A
Full Load Current - Inductive
63 A
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
783XZ1
Zoro #
G507195091
UPC #
-
Country of Origin
China

Dimensions

Depth
4.04 in
Height
3.15 in
Width
2.76 in
Overall Height
3.15 in
Overall Width
2.76 in
Mounting Hole Distance - Width
1.86 in
Overall Depth
4.04 in
Mounting Hole Distance - Height
3.25 in

Details

Item
Definite Purpose Magnetic Contactor
Coil Voltage
120V AC
Number of Poles
3
Reversing Capability
Non-Reversing
Full Load Current - Resistive
75 A
Full Load Current - Inductive
63 A
Phase
3
Terminal Connection Type
Box Lug
Reversing
No
HP @ 3 Phase - 575V
25 hp
Enclosure NEMA Rating
No Enclosure
Standards
CE, cRUus
Locked Rotor Load
240 A @ 600V AC, 300 A @ 480V AC, 360 A @ 240/277V AC
NEMA Enclosure Rating
No Enclosure
Frequency
50/60 Hz
Number of Terminals
8
Mounting Postion
Horizontal, Vertical
Horsepower @ Single Phase - 240V AC
10 hp
Horsepower @ Three Phase - 240V AC
25 hp
Electrical Operating Durability
200,000
Auxiliary Contact Module Capacity
2
Number of Normally Open Main Contacts
3
Status Indicator
Mechanical Flag
Mounting Style
Through Panel
Maximum Voltage Rating
600V AC
Horsepower @ Single Phase - 120V AC
5 hp
Response Time
20 msec
Maximum Operating Temperature
158 Degrees F
Horsepower @ Three Phase - 600V AC
30 hp
Minimum Operating Temperature
-40 Degrees F
Contact Material
Silver Cadmium Oxide
Number of Normally Closed Main Contacts
0
Mechanical Operating Durability
500,000
Horsepower @ Three Phase - 480V AC
30 hp
Horsepower @ Three Phase - 208V AC
20 hp
Series
783X

Description

Definite Purpose Magnetic Contactor, LED Lighting Current Rating Not Applicable, Coil Voltage 120V AC, Number of Poles 3, NEMA Enclosure Rating No Enclosure, Tungsten Lighting Current Rating Not Applicable, Fluorescent Lighting Current Rating Not Applicable, Reversing Capability Non-Reversing, Frame Size Not Applicable, Horsepower @ Single Phase - 240V AC 10 hp, Horsepower @ Single Phase - 120V AC 5 hp, Full Load Current - Resistive 75 A, Full Load Current - Inductive 63 A
