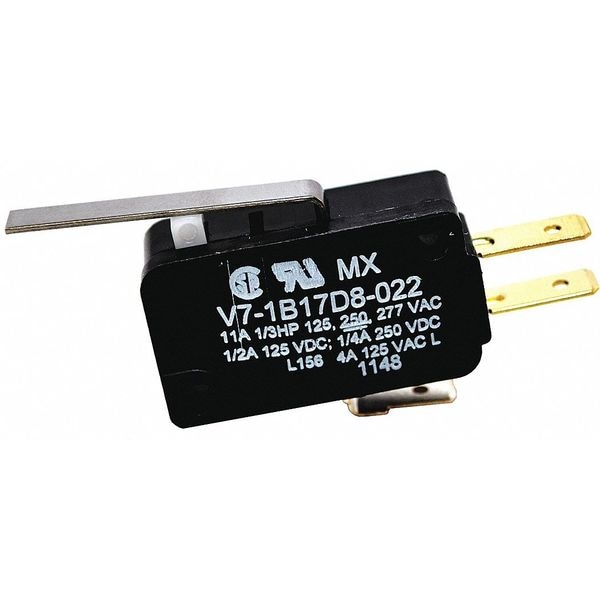

Snap Action Switch - V7 Series, SPDT, Roller Lever, 11A, Quick Connect

  • Mfr # V7-1B17D8-022

  • Zoro # G4555896

product price:
$
6.19
/ea

Key Features

Actuator Type - Snap Action Switch
Lever, Short
AC Contact Rating - Snap Action Switch
11 A 1/3 HP 125 V, 250 V or 277 V
DC Contact Rating - Snap Action Switch
1/2 A 125 V; 1/4 A 250 V
Contact Form- Switches
SPDT
Lever Actuator Length - Snap Action Switch
1.41 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
V7-1B17D8-022
Zoro #
G4555896
UPC #
-
Country of Origin
Mexico

Dimensions

Lever Actuator Length - Snap Action Switch
1.41 in
Height - Snap Action Switch
0.63 in
Width - Snap Action Switch
1.14 in
Depth - Snap Action Switch
0.4 in
Depth
0.4"
Length
1.14"
Mounting Dimension
0.41 x 0.87" Centers
Actuator Length
1.41"
Mounting Dimension - Snap Action Switch
0.87 in Centers
Height
0.63"
Overall Height
0.63 in
Lever Actuator Length
1.41 in
Body Width
1.14 in
Body Depth
0.4 in
Overall Width
1.14 in
Body Height
0.63 in
Mounting Hole Diameter
1/8 in
Overall Depth
0.4 in

Details

Item
Miniature Snap Action Switch
Actuator Type - Snap Action Switch
Lever, Short
AC Contact Rating - Snap Action Switch
11 A 1/3 HP 125 V, 250 V or 277 V
DC Contact Rating - Snap Action Switch
1/2 A 125 V; 1/4 A 250 V
Contact Form- Switches
SPDT
Terminal Type
Quick Connect
Voltage Rating
250VAC
Electrical Connection - Snap Action Switch
3/16 in Quick Connect
Max. Pretravel
0.12 in
Differential Travel
0.027 in
Standards
CSA, ENEC, RoHS, UL Listed
Contact Form
1NO/1NC
Release Force
0.28 ozf
Housing Material
PCT Polyester Thermoplastic
Over Travel
0.067 in
Operating Temp. Range
-40 Degrees C to 85 Degrees C [-40 Degrees F to 185 Degrees F], options for 175 Degrees C [347 Degrees F]
Series
V7
Current Rating
3A
Type of Actuator
Short Straight Lever
Watertight - Snap Action Switch
No
Operating Force
0,80 N [2.9 oz]
DC Contact Rating
0.25 A @ 250 V, 0.5 A @ 125 V
AC Contact Rating
11 A @ 277 V
Operator Configuration
Straight
Differential-Travel - max
0.03 in (0.75mm) DT
Pre-Travel - max
0.12 in (3.05mm) PT
Connection
Quick Connect Terminal
Current Rating - nominal
10A
Head
Lever
Connection Configuration
Spade Tab, 0.188 in.Wide x 0.020 in.Thick
Type
Miniature Limit Switch
Contact Rating
11A 125-277V AC 0.25A 250V DC
Force to Operate
2.8 oz (0.8N) OF
Over-Travel
0.09 in (2.29mm) OT
Head Action
Spring Return, Standard
Operating Temperature
-40°F (-40°C) to 185°F (85°C)
Operating Temperature - Maximum
365 Degrees F
Operating Temperature - Minimum
-40 Degrees F
Operating Force - Maximum
2.8 ozf
Overtravel
0.067 in
Actuator Style
Roller Lever
Electrical Connection
Quick Connect
Pretravel
0.12 in
Operating Force - Minimum
0.78 N
Center Mounting Hole Distance
0.88 in
Differential Travel - Maximum
0.027 in
Body Material
Polyester
Mounting Hole Horizontal Center to Center Distance
22 mm

Description

Honeywell’s MICRO SWITCH V7 Miniature Snap Action Switch is rated for operation within the specified environmental and electrical parameters in a compact thermoplastic housing. This switch features a short straight lever actuator with spring return and standard head action, which may be used in applications that require on/off limit detection or presence/absence sensing, subject to compatibility with product specifications. The device offers both normally open and normally closed contacts (SPDT) and supports quick connect terminals for straightforward installation.

Key Features:

  • Contact Rating: 11A at 125–277V AC; 0.25A at 250V DC; 0.5A at 125V DC
  • Actuator Style: Roller lever, short straight type with a length of 1.41"
  • Body Dimensions: Width—1.14", Height—0.63", Depth—0.4"
  • Housing Material: PCT polyester thermoplastic
  • Electrical Connection: Quick connect spade tabs (0.188" wide x 0.020" thick)
  • Mounting Hole Distance: Center-to-center spacing of 0.87"; hole diameter of 1/8"
  • Operating Force: Maximum of 2.8 ozf (0.80 N)
  • Travel Parameters: Pretravel up to 0.12", overtravel up to 0.067", differential travel max of 0.027"
  • Temperature Range: -40°F (-40°C) to +185°F (+85°C)
  • Standards Compliance: CSA, ENEC, RoHS, UL Listed
