Definite Purpose Magnetic Contactor, 120V AC, 3 P, Non-Reversing, 3 Phase, Box Lug

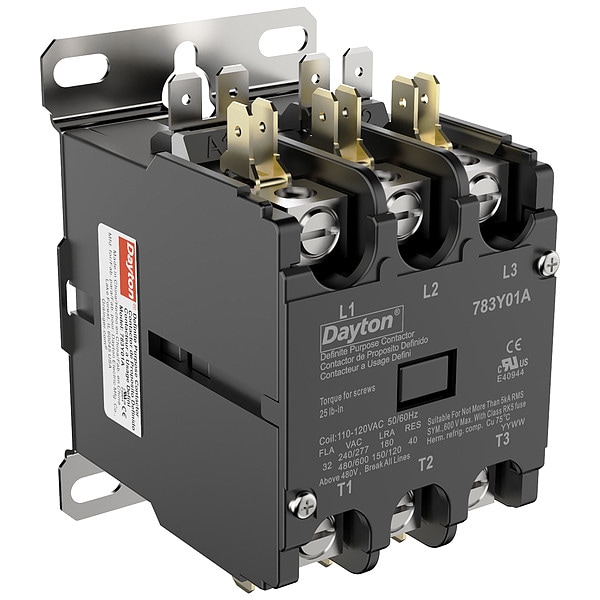

The DAYTON - 783Y01 is a Definite Purpose Magnetic Contactor, an industrial electrical device designed to control the flow of power in heavy-duty applications. It operates by responding to electrical impulses, allowing or interrupting power supply based on the need. This tool is commonly used by industry professionals for managing and automating machinery operations in various sectors like HVAC, data processing, and manufacturing.

• Auxiliary Contact Module Capacity: The contactor has a capacity for two additional secondary circuits providing flexibility in managing multiple electrical loads or signals.
• Coil Voltage: Rated for operation within the specified coil voltage range of 120V AC, suitable for managing power flow in industrial and commercial applications.
• Contact Material: Made from Silver Cadmium Oxide which influences conductivity, durability, and resistance to corrosion.
• Electrical Operating Durability: Has been tested to operate electrically up to 200000 times under standard conditions. Actual performance may vary based on usage conditions.
• Frequency: Specified for operation within the frequency ranges of 50/60 Hz, affecting its compatibility with various power systems.
• Full Load Amps-Inductive & Resistive: Rated for continuous handling of maximum current when controlling both inductive (32 A) and resistive (40 A) loads. Overheating or damage may occur if used outside these specifications.
• Horsepower @ Three Phase - Various Voltages : Horsepower capacity varies according to the voltage level; it is compatible with controlling up to a maximum of 10 hp at a three-phase power supply of either specified voltages -480 volts or 575 volts
