  7. DIN Rail & Top Flange, Enclosed Power Relay, 6, 1/4 in Tab Terminal

This item is Discontinued.

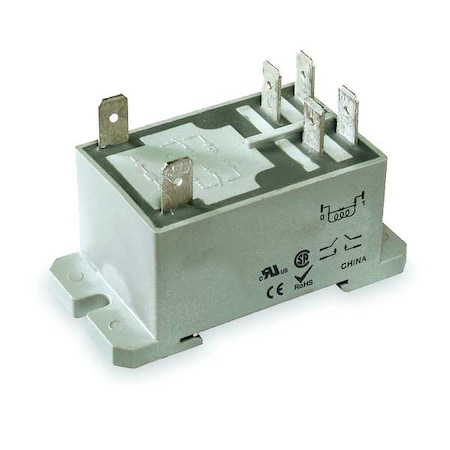

Dayton DIN Rail & Top Flange, Enclosed Power Relay, 6, 1/4 in Tab Terminal 1EJH5

DIN Rail & Top Flange, Enclosed Power Relay, 6, 1/4 in Tab Terminal (Discontinued)

  • Mfr # 1EJH5
  • Zoro # G1183551
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
1EJH5
Zoro #
G1183551
UPC #
190735140185
Country of Origin
China

Dimensions

Dimensions
1.61"H, 1.40"W, 2.68"D
Overall Height - Relay
1.61 in
Overall Depth
1.61 in
Body Height
1.61 in
Body Depth
2.68 in
Body Width
1.4 in
Body Height - Relay
1.61 in
Body Depth - Relay
2.68 in
Body Width - Relay
1.4 in

Details

Item
Enclosed Power Relay
Mounting Style
DIN Rail & Top Flange
Electrical Connection
1/4 in Tab Terminal
Number of Pins
6
Coil Voltage
240V AC
Contact Form
DPST-NO
Contact Rating (AC)
30 A @ 277V
Contact Rating (DC)
20 A @ 28V
Power Consumption - Relay
4.0 VA
Contact Amp Rating (Resistive)
30A @ 277VAC, 20A @ 28VDC
AC Contact Rating - Relay
30A @ 277V
HP @ 240V
3
DC Contact Rating - Relay
20A @ 28V
Mounting - Relay
Bottom Flange, DIN Rail
HP @ 120V
1
Coil Volts
240V AC
Standards
E40944
Number of Pins - Relay
6
Hz - Electrical
50/60 Hz
Number of Poles
2
Contact Form - Relay
DPST-NO
Hz
50/60
Contact Material
Silver Alloy
Coil Rating
4.0VA, 1.7W
Electrical Connection - Power Relay
1/4 in Tab Terminal
Item - Relay
Enclosed Power Relay
Pins
6
Mounting
Flange, Bottom/Din Rail
Base Type
DIN Rail/Flange
For Use With
Air Handling, Elevators, HVAC Equipment, Machine Tools
Electrical Connection Type
Tab
Relay Mounting Style
DIN-Rail & Surface
Coil Voltage Type
AC
Series
Dayton Power Series
Minimum Operating Temperature
-22 Degrees F
Horsepower @ 120V AC
1 hp
Frequency
50/60 Hz
Socket Code Configurator
DIN-Rail & Surface / 6
Power Consumption
4 VA
Motor Rated
Yes
Maximum Operating Temperature
149 Degrees F
Horsepower @ 240V AC
3 hp
Status Indicator
No Indicator
Type
Power

Description

Enclosed Power Relay, Coil Voltage 240V AC, Contact Form DPST-NO, Electrical Connection 1/4 in Tab Terminal, Number of Pins 6, Status Indicator No Indicator, Contact Rating (AC) 30 A @ 277V, Contact Rating (DC) 20 A @ 28V, Horsepower @ 120V AC 1 hp, Horsepower @ 240V AC 3 hp, Mounting Style DIN Rail & Top Flange, Body Depth 2.68 in, Body Height 1.61 in, Body Width 1.4 in, Contact Material Silver Alloy, For Use With Air Handling, Elevators, HVAC Equipment, Machine Tools, Frequency 50/60 Hz
