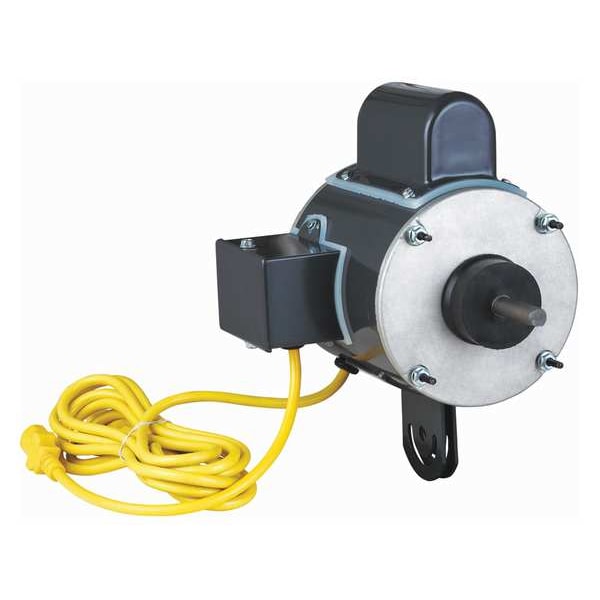

Direct Drive Blower Motor, 1/2 hp
Mfr # GGS_47829
Zoro # G6424017
product price:Â $259.99
/ea
Free Shipping & Returns
Key Features
Length Less Shaft
3 in
Hz
60
Ins. Class
B
RPM Range
1,001-1,100
Voltage Compatibility
115V AC, 120V AC, 115/230V AC, 115/208-230V AC, 120/240V AC
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- GGS_47829
- Zoro #
- G6424017
- UPC #
- 190735957646
- Country of Origin
- China
Dimensions
- Length Less Shaft
- 3 in
- Bolt Circle Dia.
- 5 1/8 in
- Manufacturers Warranty Length
- 1 yr
- Shaft Dia.
- 1/2 in
- Overall Length
- 9 1/2 in
- Body Dia.
- 5.7 in
- Shaft Length
- 241 mm
- Bolt Circle Diameter
- 130 mm
- Body Diameter
- 144 mm
- Shaft Diameter
- 12 11/16 mm
- Frame Size
- Non-Standard
- Wire Rope Length
- 9 1/2 in
Description
Definite Purpose HVAC Motor, Single Phase, Motor Design Permanent Split Capacitor, 1/2 hp HP, Nameplate RPM 1,100/850 RPM, No. of Speeds 2, Voltage 115V AC, Full Load Amps 4.2/3.3 A, Non-Standard Frame, Replacement For Dayton 1VCH5D, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, 60 Hz Hz, Motor Thermal Protection Auto, Ins. Class B, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, Motor Shaft Rotation CWSE, Motor Enclosure Design Totally Enclosed Air-Over
