Shop DAYTON

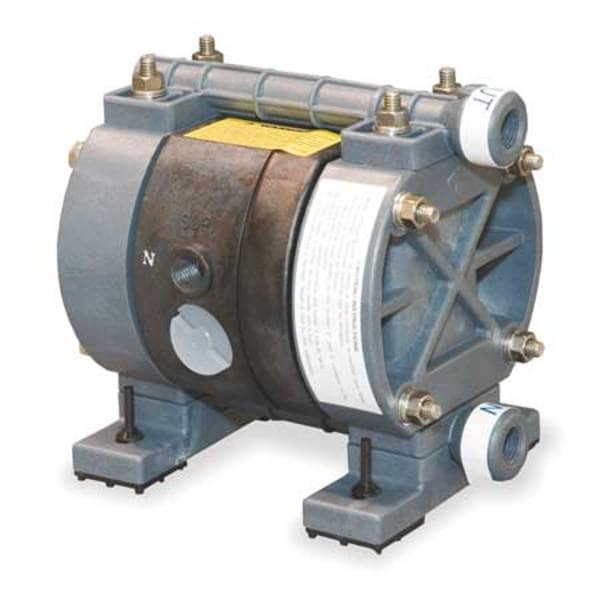

Double Diaphragm Pump, Acetal, Air Operated, PTFE, 3.25 GPM

  • Mfr # 6PY38

  • Zoro # G1123482

product price:
$
652.99
/ea
Free Shipping & Returns
Zoro's best price: not eligible for any other offers or promotions

Key Features

Housing Material - Pumps
Acetal
Pump Assembly Type
Bolt
Manifold Connection
Single Port
Valve Material
PTFE
Valve Type
Flat
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
6PY38
Zoro #
G1123482
UPC #
190735370605
Country of Origin
Japan
Item
Double Diaphragm Pump
Housing Material - Pumps
Acetal
Pump Assembly Type
Bolt
Manifold Connection
Single Port
Valve Material
PTFE
Valve Type
Flat
Air Consumption (Maximum)
9 scfm
Air Intake Connection Type
FNPT
Check Seat Material
Acetal
Diaphragm Material
PTFE
Media Temperature (Maximum)
180 Degrees F
Media Temperature (Minimum)
40 Degrees F
Operating Pressure (Maximum)
100 psi
Self-Priming Dry
5 ft
Self-Priming Wet
28 ft
Pump Operation Type
Air
Inlet/Outlet
1/4 in
Media Intake Location
Bottom
Viscosity (Maximum)
500 cps
Flow Rate @ 20 psi
2 gpm
Flow Rate @ 40 psi
10 gpm
Priming
Self-Priming
Wetted Housing Material
Acetal
Flow Rate @ 60 psi
2.75 gpm
Manifold Connection Type
NPT
Flow Rate @ 80 psi
3.1 gpm
Flow Rate (Maximum)
3.3 gpm
Media Discharge Connection Type
NPT
Air Intake Pressure (Maximum)
100 psi
Media Discharge Location
Top
Flow Rate @ 100 psi
3.5 gpm
Feet of Head (Maximum)
231 ft
Media Intake Connection Type
NPT
For Use With Potable Systems
No
Duty Cycle
Continuous
Mounting Hardware Material
Steel
Wetted Body Material
Acetal
Diaphragm Base Material
PTFE
Material Conductivity
Conductive
Includes
Ball Valve, Manual
Fluid Chamber Assembly Type
Bolted
Media Discharge Port Configuration
Side
Diaphragm Reinforcement
Not Reinforced
Displacement Per Stroke
0.0039 gal
Includes Clean In Place Technology
No Clean In Place Included
Manifold Port Connection Type
Single Port
Manifold Connection Standard
NPT
Media Intake Port Configuration
Side
Center Section Material
Polypropylene
Chemical Compatibility
Antifreeze, Calcium Carbonate, Detergents, Kerosene, Water
Includes Solenoid
No Solenoid Included

Description

Double Diaphragm Pump, Air Consumption (Maximum) 9 scfm, Air Intake Connection Size 1/4 in, Air Intake Connection Type FNPT, Check Seat Material Acetal, Diaphragm Material PTFE, Feet of Head (Maximum) Not Applicable, Flow Rate (Maximum) 3.3 gpm, Manifold Connection Single Port, Media Discharge Connection Size 1/4 in, Media Discharge Connection Type NPT, Media Discharge Location Top, Media Intake Connection Size 1/4 in, Media Intake Connection Type NPT, Media Intake Location Bottom
