Shop DAYTON

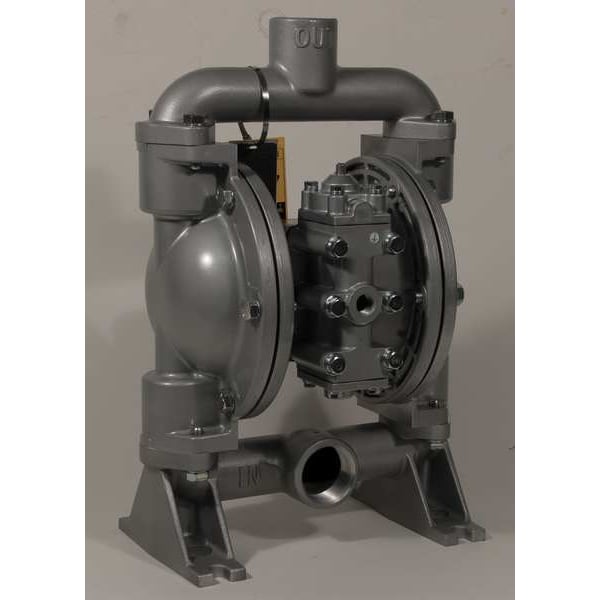

Double Diaphragm Pump, Aluminum, Air Operated, Buna N, 50 GPM

  • Mfr # 22A594

  • Zoro # G5526552

product price:  $1,388.99
/ea
Free Shipping & Returns

Key Features

Housing Material - Pumps
Aluminum
Pump Assembly Type
Bolt
Manifold Connection
Single Port
Valve Material
Buna-N
Valve Type
Ball
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
22A594
Zoro #
G5526552
UPC #
190735168417
Country of Origin
Japan

Dimensions

Air Intake Connection Size
3/8 in
Manufacturers Warranty Length
1 yr
Overall Length
8.5 in
Overall Width
11.3 in
Overall Height
17.3 in
Solid Diameter (Maximum)
0.19 in
Media Intake Connection Size
1 1/2 in
Media Discharge Connection Size
1 1/4 in

Details

Item
Double Diaphragm Pump
Housing Material - Pumps
Aluminum
Pump Assembly Type
Bolt
Manifold Connection
Single Port
Valve Material
Buna-N
Valve Type
Ball
Air Consumption (Maximum)
55 scfm
Air Intake Connection Type
FNPT
Check Seat Material
Aluminum
Diaphragm Material
Buna-N
Media Temperature (Maximum)
180 Degrees F
Media Temperature (Minimum)
10 Degrees F
Operating Pressure (Maximum)
100 psi
Self-Priming Wet
28 ft
Self-Priming Dry
18 ft
Pump Operation Type
Air
Includes
Ball Valve
Inlet/Outlet
1 1/4 in
For Use With
General Indsutrial Use Including Waste Oils, Water Based Chemicals and Fluids with A Neutral Ph. Handles Suspended Solids and Shear Sensative Fluids
Duty Cycle
Continuous
Flow Rate @ 30 psi
29 gpm
Wetted Housing Material
Aluminum
Air Intake Pressure (Maximum)
100 psi
Media Discharge Location
Top
Media Discharge Connection Type
NPT
Flow Rate @ 70 psi
45 gpm
For Use With Potable Systems
No
Media Intake Location
Bottom
Feet of Head (Maximum)
231 ft
Flow Rate @ 60 psi
45 gpm
Priming
Self-Priming
Mounting Hardware Material
Steel
Flow Rate (Maximum)
50 gpm
Flow Rate @ 100 psi
50 gpm
Media Intake Connection Type
NPT
Viscosity (Maximum)
40,000 cps
Manifold Connection Type
NPT
Fluid Chamber Assembly Type
Bolted
Media Discharge Port Configuration
Center Vertical
Chemical Compatibility
Antifreeze, Calcium Carbonate, Detergents, Diesel, Motor Oil, Water
Displacement Per Stroke
0.11 gal
Diaphragm Reinforcement
Fabric Reinforced
Manifold Port Connection Type
Single Port
Material Conductivity
Conductive
Wetted Body Material
Aluminum
Manifold Connection Standard
NPT
Center Section Material
Aluminum
Diaphragm Base Material
Buna-N
Media Intake Port Configuration
Center Horizontal
Includes Clean In Place Technology
No Clean In Place Included
Includes Solenoid
No Solenoid Included

Description

Double Diaphragm Pump, Air Consumption (Maximum) 55 scfm, Air Intake Connection Size 3/8 in, Air Intake Connection Type FNPT, Check Seat Material Aluminum, Diaphragm Material Buna-N, Feet of Head (Maximum) Not Applicable, Flow Rate (Maximum) 50 gpm, Manifold Connection Single Port, Media Discharge Connection Size 1 1/4 in, Media Discharge Connection Type NPT, Media Discharge Location Top, Media Intake Connection Size 1 1/4 in, Media Intake Connection Type FNPT, Media Intake Location Bottom
