Dayton

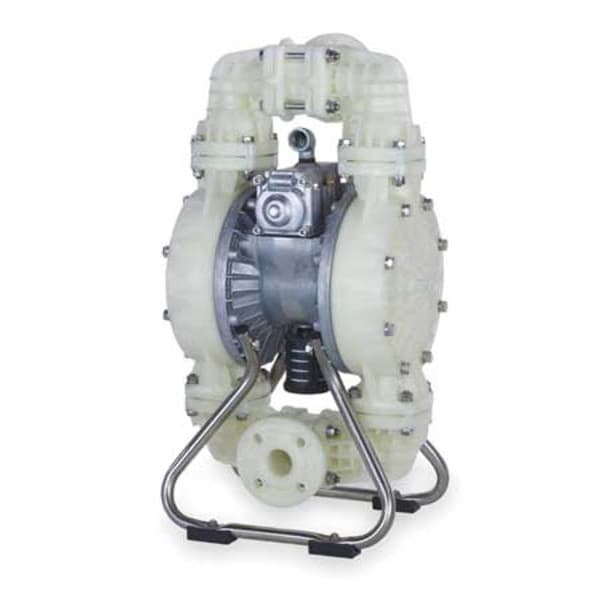

Double Diaphragm Pump, Polypropylene, Air Operated, Santoprene

product price: $3,039.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Housing Material - Pumps Polypropylene
  • Diaphragm Material - Pumps Santoprene(R)
  • Max. Flow 115 gpm
  • Pump Operation Type Air
  • Max. Temp - Pumps 180 Degrees F
See all product information

Product Information

Dimensions

Inlet/Outlet Size 1 1/2 in
Air Inlet Size 1/2 in FNPT
Length 16 in
Manufacturers Warranty Length 1 yr
Width 12 1/4 in
Height 29 5/8 in
Max. Dia. Solids 9/32 in
Overall Length 16 in
Overall Height 29.6 in
Overall Width 12.3 in
Media Intake Connection Size 1 1/2 in
Air Intake Connection Size 1/2 in
Media Discharge Connection Size 1 1/2 in
Solid Diameter (Maximum) 0.28 in

Details

Housing Material - Pumps Polypropylene
Diaphragm Material - Pumps Santoprene(R)
Max. Flow 115 gpm
Item - Air Operated Pumps Double Diaphragm Pump
Pump Operation Type Air
Max. Temp - Pumps 180 Degrees F
Connection Style Flange
Check Seat Material Polypropylene
Manifold Connection Single Port
Self-Priming Wet 28 ft
Item Double Diaphragm Pump
Self-Priming Dry 18 ft
Max. Operating Pressure 100 psi
Max. Flow GPM 115 gpm
Diaphragm Material Santoprene
Body Material Polypropylene
Max. Temp. 180 Degrees F
Ball Material EPDM
Operation Type Air Operated
Valve Type Ball
Media Discharge Location Top
Media Discharge Connection Type Flange
Wetted Housing Material Polypropylene
Pump Assembly Type Bolt
For Use With Potable Systems No
Flow Rate @ 15 psi 62 gpm
Media Intake Location Bottom
Flow Rate @ 90 psi 100 gpm
Flow Rate @ 20 psi 65 gpm
Operating Pressure (Maximum) 100 psi
Air Intake Connection Type Flange
Flow Rate (Maximum) 115 gpm
Viscosity (Maximum) 50,000 cps
Non-Wetted Housing Material Aluminum
Media Temperature (Maximum) 180 Degrees F
Duty Cycle Continuous
Flow Rate @ 30 psi 70 gpm
Mounting Hardware Material Stainless Steel, Steel
Air Intake Pressure (Maximum) 100 psi
Media Temperature (Minimum) 0 Degrees F
Flow Rate @ 40 psi 78 gpm
Valve Material EPDM
Manifold Connection Type Flange
Air Consumption (Maximum) 100 scfm
Media Intake Connection Type Flange
Priming Self-Priming
Flow Rate @ 60 psi 90 gpm

Description

Double Diaphragm Pump, Air Consumption (Maximum) 100 scfm, Air Intake Connection Size 1/2 in, Air Intake Connection Type Flange, Check Seat Material Polypropylene, Diaphragm Material Santoprene, Feet of Head (Maximum) Not Applicable, Flow Rate (Maximum) 115 gpm, Manifold Connection Single Port, Media Discharge Connection Size 1 1/2 in, Media Discharge Connection Type Flange, Media Discharge Location Top, Media Intake Connection Size 1 1/2 in, Media Intake Connection Type Flange
