Shop DAYTON

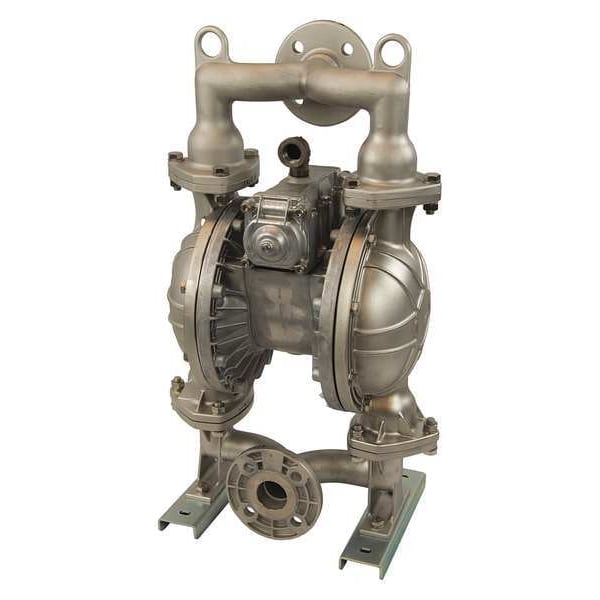

Double Diaphragm Pump, Stainless steel, Air Operated, Santoprene

  • Mfr # 34TJ44

  • Zoro # G9346967

product price:
$
6,184.99
/ea
Free Shipping & Returns

Key Features

Housing Material - Pumps
Stainless Steel
Manifold Connection
Single Port
Valve Material
Santoprene
Valve Type
Ball
Air Intake Connection Size
1/2 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
34TJ44
Zoro #
G9346967
UPC #
190735266373
Country of Origin
Japan

Dimensions

Air Intake Connection Size
1/2 in
Manufacturers Warranty Length
1 yr
Overall Length
11.3 in
Overall Height
27.8 in
Overall Width
16.2 in
Media Intake Connection Size
1 1/2 in
Solid Diameter (Maximum)
0.28 in
Media Discharge Connection Size
1 1/2 in
Wire Rope Length
11.3 in
Length
11.3 in

Details

Item
Double Diaphragm Pump
Housing Material - Pumps
Stainless Steel
Manifold Connection
Single Port
Valve Material
Santoprene
Valve Type
Ball
Air Intake Connection Type
Flange
Check Seat Material
Santoprene
Diaphragm Material
Santoprene
Media Temperature (Maximum)
180 Degrees F
Operating Pressure (Maximum)
100 psi
Pump Operation Type
Air
Self-Priming Dry
18 ft
Self-Priming Wet
28 ft
Inlet/Outlet
1 1/2 in
Manifold Connection Type
Flange
Media Intake Connection Type
Flange
Media Discharge Connection Type
Flange
Wetted Housing Material
316 Stainless Steel
Flow Rate (Maximum)
102 gpm
Priming
Self-Priming
Manifold Port Connection Type
Single Port
Diaphragm Base Material
Santoprene
Flow Rate @ 30 psi
25 gpm
Pump Assembly Type
Bolt
Diaphragm Reinforcement
Not Reinforced
Flow Rate @ 60 psi
50 gpm
Media Intake Port Configuration
Center Horizontal
Media Intake Location
Bottom
Includes Clean In Place Technology
No Clean In Place Included
Mounting Hardware Material
Steel
Media Discharge Port Configuration
Center Horizontal
Flow Rate @ 80 psi
70 gpm
Includes
Ball Valve, Manual
Wetted Body Material
316 Stainless Steel
Includes Solenoid
No Solenoid Included
Chemical Compatibility
Alcohol, Ammonium Hydroxide, Antifreeze, Calcium Carbonate, Detergents, Diesel Exhaust Fluid, Phosphoric Acid 50%, Potassium Hydroxide, Sulfuric Acid 80%, Sulfuric Acid 90%, Water
Duty Cycle
Continuous
Flow Rate @ 50 psi
50 gpm
Manifold Connection Standard
Flange
Material Conductivity
Conductive
Flow Rate @ 100 psi
107 gpm
Feet of Head (Maximum)
231 ft
Air Intake Pressure (Maximum)
100 psi
Fluid Chamber Assembly Type
Bolted
Viscosity (Maximum)
50,000 cps
Flow Rate @ 40 psi
25 gpm
Flow Rate @ 70 psi
70 gpm
For Use With Potable Systems
No
Center Section Material
Aluminum
Air Consumption (Maximum)
90 scfm
Flow Rate @ 90 psi
90 gpm
Displacement Per Stroke
0.365 gal
Media Discharge Location
Top
Media Temperature (Minimum)
-10 Degrees F

Description

Double Diaphragm Pump, Air Intake Connection Size 1/2 in, Air Intake Connection Type Flange, Check Seat Material Santoprene, Diaphragm Material Santoprene, Flow Rate (Maximum) 102 gpm, Manifold Connection Single Port, Media Discharge Connection Size 1 1/2 in, Media Discharge Connection Type Flange, Media Intake Connection Size 1 1/2 in, Media Intake Connection Type Flange, Media Temperature (Maximum) 180 Degrees F, Solid Diameter (Maximum) 0.28 in, Valve Material Santoprene
