Shop DAYTON

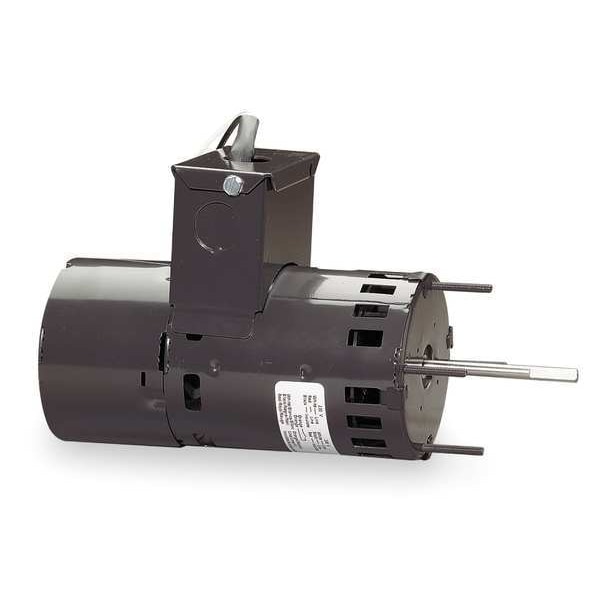

Draft Booster Motor, 1/15 hp

  • Mfr # 71219124M

  • Zoro # G0615754

product price:  $137.99
/ea
Free Shipping & Returns

Key Features

Motor Design
Shaded Pole
Motor Enclosure Design
Open Air-Over
HP
1/15
RPM Range
1,801-3,000
Nameplate RPM
3,000
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
71219124M
Zoro #
G0615754
UPC #
190735131824
Country of Origin
Mexico

Dimensions

Shaft Length
3 3/4 in
Body Dia.
3 5/16 in
Shaft Dia.
1/4 in
Frame Size
Non-Standard
Overall Length
9 5/8 in
Shaft Diameter
1/4 in
Body Diameter
3.3 in
Wire Rope Length
9 5/8 in

Details

Item
Draft Booster Motor
Motor Design
Shaded Pole
Motor Enclosure Design
Open Air-Over
HP
1/15
RPM Range
1,801-3,000
Nameplate RPM
3,000
Voltage
115/230V AC
Frame
Non-Standard
Motor Thermal Protection
Auto
Phase
Single
Mounting Pattern
B
Contact Break
800 RPM
Duty
Continuous
Max. Ambient Temp.
40 Degrees C
Full Load Amps
2.2/1.1 A
Footnotes
14
Motor Bearings
Ball
Motor Shaft Rotation
CCWSE
Motor Service Factor
1
Ins. Class
B
Hz
60 Hz
Includes
Centrifugal Safety Switch
Voltage Compatibility
115/200-230V AC, 115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 230V AC, 240V AC
Motor Mounting Type
Stud
Contact Make
2,500 RPM
Standards
UL Recognized and CSA Certified
Motor Application
HVAC/R
No. of Speeds
1
Usable @ 200V
Not Usable at 200V
Motor Mounting Position
All Angle
Usable @ 208V
Not Usable at 208V
Duty Cycle
Continuous
Type
Draft Booster
Efficiency Rating
Standard Efficiency (IE1)
Drive Type
Direct Drive
Product Type
Draft Booster Motor
Sub Application
Draft Booster
Full Load Current @ 60 Hz
2.2/1.1 A
Ambient Temperature - Maximum
40 Degrees C
Wattage
49 W
Application
Draft Inducer
Frame Material
Steel
Frequency
60 Hz
Bearing Type
Ball
Nameplate Service Factor @ 60 Hz
1
Number of Speeds
1
Insulation Class
B
Motor Enclosure Type
Open Air Over

Description

Draft Booster Motor, Single Phase, Motor Design Shaded Pole, 1/15 HP, Nameplate RPM 3,000, No. of Speeds 1, Voltage 115/230V AC, 2.2/1.1 A Full Load Amps, Non-Standard Frame, 60 Hz Hz, Usable @ 208V No, Usable @ 200V No, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Duty Cycle Continuous, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CCWSE, Motor Enclosure Design Open Air-Over, Motor Mounting Type Stud, Motor Mounting Position All Angle, Shaft Length 3 3/4 in
