Shop DAYTON

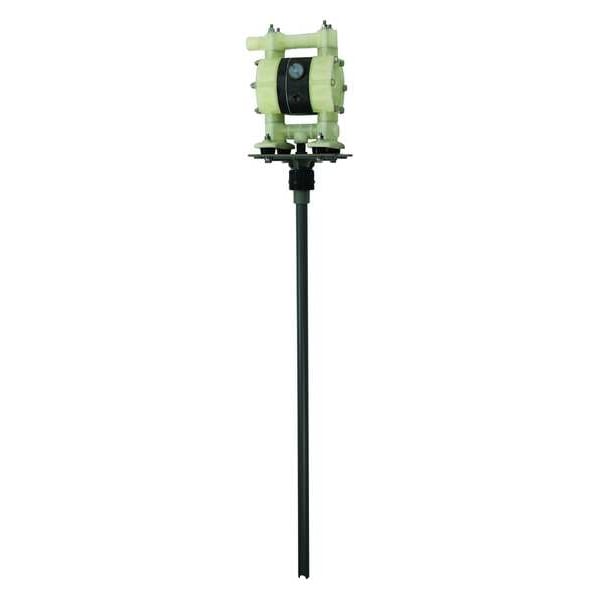

Drum Pump, Inlet 1/2", Max. Flow 12.5 gpm

  • Mfr # 53JU96

  • Zoro # G8095991

product price:
$
597.99
/ea
Free Shipping & Returns

Key Features

For Media Type
For Container Size
55 gal
Max. Flow Rate
12.5 gpm
Max. Viscosity
15,000 cps
Diesel Exhaust Fluid Compatible
No
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
53JU96
Zoro #
G8095991
UPC #
00194484302924
Country of Origin
Japan

Dimensions

For Container Size
55 gal
Inlet Size
1/2"
Air Inlet Size
1/4 in FNPT
Suction Tube Length
40 1/2 in
Hose Length
120 in
Adapter Dia.
2"
Discharge Tube Length
10 ft.
Discharge Size FPT (In.)
1/2
Manufacturers Warranty Length
1 yr.
Height Above Container
14 in
Hose Outside Dia.
3/4 in
Overall Length
56 9/16 in
Air Outlet Size
3/8 in
Bung Connection Dia.
2 in
Overall Width
9-1/64 in
Overall Height
56-9/16 in
Hose Inside Diameter
1/2 in
Hose Outside Diameter
3/4 in
Air Inlet Connection Size
1/4 in
Adapter Connection Diameter
2 in
Wire Rope Length
56 9/16 in
Length
56 9/16 in

Details

Item
Air Drum Pump
For Media Type
Max. Flow Rate
12.5 gpm
Max. Viscosity
15,000 cps
Diesel Exhaust Fluid Compatible
No
Wetted Materials
Santoprene
Includes Suction Tube
Yes
For Use With
Acids, Caustics, Chemicals, General Automtive Service Fluids, Soap Solutions
Hose Tube Material
PVC
Discharge Tube Outlet ID
1/2 in
Discharge Tube Outlet OD
3/4 in
Max. Flow GPM
12.5 gpm
Adapter Material
Polypropylene
Max. Air Inlet (PSI)
100
Includes
Ball Valve, Dip Tube, Grounding Strap, Hose
Discharge Tubing Material
PVC
Delivers
3000 CPS
Adapter Type
Bung
Self-Priming
Yes
Suction Tube Material
PVC
Seal Material
Santoprene
Metered
No
Max. Fluid Temp.
180 Degrees F
For Container Type
Drum
Runs Dry
Yes
Discharge Connection Type
FNPT
Not Recommended Chemicals
Includes Discharge Hose
Yes
Max. Oil Flow
12 gpm
Food Grade
No
Suction Tube ID
1/2 in
Pump Connection ID
1/2 in
Compatible Chemicals
Suction Tube OD
3/4 in
Max. Air Pressure
100 psi
Includes Spout
No
Variable Speed
Yes
Power Source
Air
Housing Material - Pumps
Polypropylene
Duty Cycle
Continuous
Noise Level
77.5 dB
Min. Air Pressure
20 psi
Pump Connection Type
FNPT
Max. Head Pressure
100 psi
Pump Connection OD
3/4 in
Includes Bung Adapter
Yes
Includes Nozzle
No
Adapter Connection Type
FNPT
Max. Head - Pumps
231 ft
Gear Lube
NT
Explosion Proof
No
Pump Ratio
1:1
Maximum Oil Flow
12 gpm
Features
Intrinsically Safe
Air Consumption
12 cfm
Maximum Viscosity
15,000 cps
Includes Follower Plate
No Follower Plate Included
Minimum Fluid Temperature
32 Degrees F
Pump Technology
Diaphragm
Static Protection
Not Groundable
Housing Material
Polypropylene
Maximum Air Pressure
100 psi
Adapter Connection Standard
FNPT
Maximum Flow Rate
12.5 gpm
Minimum Air Pressure
20 psi
Wetted Material
Santoprene
Mounting Bracket Included
Drum Mounting Bracket
Thermal Protection
No
Pressure Ratio
1:1
Maximum Outlet Pressure
100 psi
Maximum Fluid Temperature
180 Degrees F
Meter Type Included
No Meter Included
Air Inlet Connection Type
FNPT
Chemical Compatibility
Hazardous Location Class
Not Rated
Nozzle Material
Polypropylene
Container Cover Type Included
No Cover Included
Maximum Head Pressure
100 psi
Maximum Head
231 ft
Hose Cover Material
PVC
Power Source - TS Only
Air
Power Source - old
Air

Description

Air Drum Pump, Max. Air Pressure 100 psi, Spout Connection Size Not Applicable, Suction Tube Material PVC, Self-Priming Yes, Overall Length 56 9/16 in, Explosion Proof No, Discharge Connection Type FNPT, Features Intrinsically Safe, Spout Length Not Applicable, Food Grade No, Thermal Protection No, Air Outlet Size 3/8 in, Bung Connection Dia. 2 in, Air Consumption 12 cfm, Hose Length 120 in, Variable Speed Yes, Includes Discharge Hose Yes, Noise Level 77.5 dB, Max. Viscosity 15,000 cps
