MFR # W54285
Zoro # G715079046
UPC # 039564107351
Country of Origin China

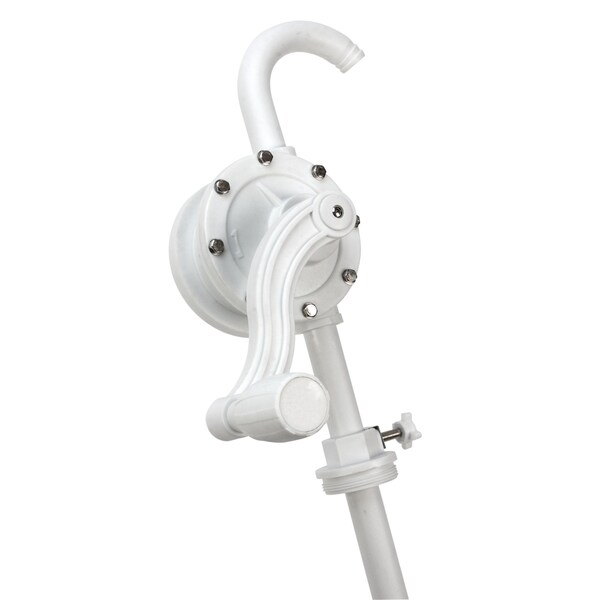

Item DEF Rotary Barrel Pump
Action Type Lever
For Media Type Acidic Fluid, Alcohol, Diesel, Gasoline, Machine Oil
Max. Flow Rate 7 gallons per 100 revolutions
Wetted Materials Polypropylene body with PTFE vanes
For Use With DEF (Diesel Exhaust Fluid)
Includes Bung Adapter Yes
Includes Check Valve
Spout Material Polypropylene
Nozzle Material Polypropylene
Compatible Chemicals Acidic Fluid, Alcohol, Diesel, Gasoline, Machine Oil
Features DEF Fluid Compatible, Dispenses 7 gal. per 100 Revolutions, Fits 5-55 gal Drums, One Way Valve, Telescoping Suction Tube
For Container Type Drum, Bucket
Suction Tube Material Polypropylene
Power Source Manual
Includes Discharge Hose No
Nozzle Operation Manual
Adapter Connection Type standard bung fitting
Mount Type Bung
Discharge Connection Type Hose Barb
Self-Priming No
Piston Material Polypropylene
Discharge Tube Outlet ID 7/8 in
Pump Connection OD 1 1/2 in
Pump Connection ID 1 in
Maximum Head 10 ft
Suction Tube OD 1 in
Chemical Compatibility Alcohol, Diesel, Gasoline, Machine Oil
Runs Dry Yes
Adapter Connection Standard Standard Bung
Includes Nozzle Yes
Maximum Oil Flow 10 oz per stroke
Maximum Fluid Temperature 170 Degrees F
Housing Material Polypropylene
Discharge Tube Outlet OD 1 in
Suction Tube ID 13/16 in Not Recommended Chemicals
See full list of Not Recommended Chemicals Acetone,Benzene,Chromic Acid 10%,Chromic Acid 30%,Chromic Acid 5%,Chromic Acid 50%,Citric Acid 50%,Concentrated Nitric Acid,Cyclohexane,Formaldehyde,Formaldehyde 40%,Formic Acid,Hydrochloric Acid 10%,Hydrochloric Acid 100%,Hydrochloric Acid 20%,Hydrochloric Acid 30%,Hydrochloric Acid 37%,Hydrochloric Acid 40%,Hydrochloric/Muriatic Acid 100%,Hydrochloric/Muriatic Acid 20%,Hydrochloric/Muriatic Acid 37%,Hydrofluoric Acid 100%,Hydrofluoric Acid 20%,Hydrofluoric Acid 75%,Nitric Acid,Nitric Acid 10% Solution,Nitric Acid 20% Solution,Nitric Acid 50% Solution,Oil,Oil-Based Paint,Paint,Paint Thinner,Pesticides,Petroleum Oil,Phosphoric Acid 100%,Phosphoric Acid 40%,Phosphoric Acid 40% Solution,Phosphoric Acid 50%,Phosphoric Acid 60%,Phosphoric Acid 70%,Phosphoric Acid 80%,Phosphoric Acid 90%,Potassium Hydroxide 50%,Salt Water,Sodium Bicarbonate 10%,Sodium Bisulfate,Sodium Bisulfite,Sodium Hydroxide,Sodium Hydroxide 20%,Sodium Hydroxide 50%,Sodium Hydroxide 80%,Sodium Hypochlorite 10%,Sodium Hypochlorite 20%,Sodium Hypochlorite 5%,Stoddard Solvent,Sulfuric Acid 10%,Sulfuric Acid 10% to 75%,Sulfuric Acid 100%,Sulfuric Acid 20%,Sulfuric Acid 30%,Sulfuric Acid 40%,Sulfuric Acid 50%,Sulfuric Acid 60%,Sulfuric Acid 70%,Sulfuric Acid 75% to 100%,Sulfuric Acid 80%,Sulfuric Acid 90%,Sulfuric Acid up to 10%,Toluene,Trichlorethylene 50%,Xylene
Includes Suction Tube Yes
Meter Type Included No Meter Included
Includes Spout Yes
Maximum Head Pressure 3 psi
Maximum Outlet Pressure 3 psi
Duty Cycle Continuous
Maximum Flow Rate 8.96 oz per stroke
Maximum Viscosity 5,000 SUS
Seal Material PTFE/Viton
Minimum Operating Temperature 35 Degrees F
Hose Tube Material Polypropylene
Adapter Material Polypropylene, PTFE
Power Source - TS Only Manual
Power Source - old Manual
