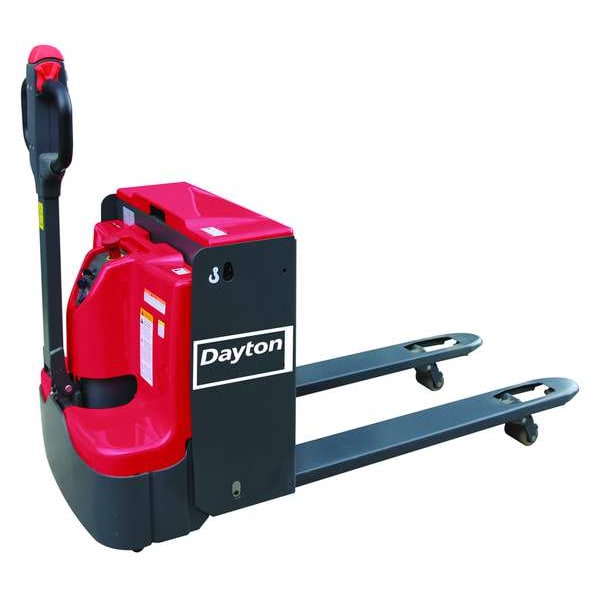

Dayton Electric Pallet Jack (478N31), 4,000 lb Capacity, 48 in Forks 478N31 - main

Electric Pallet Jack (478N31), 4,000 lb Capacity, 48 in Forks

  • Mfr # 478N31

  • Zoro # G6567537

product price: $6,595.99
/ea
Additional $270.00 delivery surcharge applies per item.
See details

Key Features

Overall Height
52 in
Overall Length
70 in
Overall Width
27 in
Color
Red
Load Capacity
4,000 lb
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
478N31
Zoro #
G6567537
UPC #
00194484270162
Country of Origin
China

Dimensions

Overall Height
52 in
Overall Length
70 in
Overall Width
27 in
Fork Height Raised
7 3/4 in
Fork Length
48 in
Width Between Forks
14 1/2 in
Fork Width
6 3/8 in
Fork Height Lowered
3 in
Width Across Forks
27 in
Main Wheel Size
9 in
Roller Dia.
3 5/16 in
Maximum Lifting Height
7 in
Load Wheel Width
3 7/8 in
Load Wheel Diameter
2 7/8 in
Handle Height
52 in
Steer Wheel Diameter
9 in
Steer Wheel Axle Diameter
3/4 in
Steer Wheel Width
2 3/8 in
Turning Radius
4 ft. 11"
Axle Dia.
3/4 in
Fork Thickness
2 in
Overall LxWxH
70 in x 27 in x 52 in
Minimum Lifting Height
3 in

Details

Color
Red
Load Capacity
4,000 lb
Item
Powered Pallet Jack
Wheel Type
Tread on Core
Handle Type
Ergonomic
Assembled
Yes
Construction
Steel
Bearings
Sealed Ball
Handle
Steel and Plastic
Voltage
24 V
Grease Fittings
Yes
Steering Arc
180 Degrees
Features
4000 lb Capacity, Economic Build Electric
Wheel Base
53 1/2 in
Includes
Battery, Charger
Finish
Powder Coated
Pallet Jack Operation
Electric
Wheel Material
Rubber
Roller Material
Polyurethane
Battery Amp Hours
160 Ah
Weight
1,000 lb
Fluid Type
8W32
Fork Style
Standard
Maximum Decline
20 Degrees
Operation
Electric
Steer Wheel/Tread Material
Polyurethane
For Surface Type
Concrete, Wood
Frame Material
Steel
Load Wheel/Tread Material
Polyurethane
Charger Type
On-Board
Charger Voltage
110 V AC
Maximum Incline
20 Degrees
Load Wheel Bearing Type
Ball Bearing
Fork Type
Fixed
Frame Finish
Powder Coated
Handle Material
Steel
Battery Type
Sealed Lead Acid
Power Connection Type
Plug In
Standards
CE
Number of Batteries
2
Charge Time
4 hr
For Pallet Type
Open/Closed
Steer Wheel Bearing Type
Ball Bearing
Battery Voltage
AC
Run Time
5 hr

Description

The DAYTON 478N31 Powered Pallet Jack is an electric pallet handling unit designed for lifting and transporting palletized loads up to 4,000 lb. It operates on a 24V system powered by two sealed lead-acid batteries and includes an onboard 110V AC charger. The unit has a welded steel frame with a powder-coated finish and features an ergonomic handle with electric lift and drive controls. Polyurethane wheels and rollers provide smooth operation on concrete and wood surfaces.

Key Features:

  • Load Capacity: 4,000 lb
  • Power Source: 24V electric with sealed lead-acid batteries (160 Ah)
  • Run/Charge Time: 5 hr run time; 4 hr charge time
  • Construction: Steel frame with powder-coated finish
  • Fork Dimensions: 48 in L × 6 3/8 in W × 2 in thick; 27 in overall fork width
  • Lifting Range: 3 in minimum to 7 3/4 in maximum height
  • Wheels: 9 in polyurethane steer wheels; 2 7/8 in polyurethane load wheels
  • Turning Radius: 4 ft 11 in; steering arc 180°
  • Handle Type: Ergonomic steel and plastic handle
  • Charger Type: Onboard, 110V AC plug-in
  • Overall Dimensions: 70 in L × 27 in W × 52 in H; weight 1,000 lb
  • Standards: CE certified
