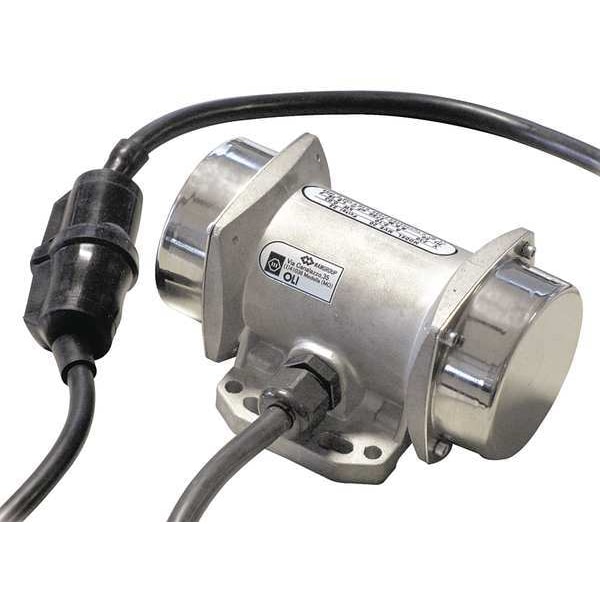

Dayton Electric Vibrator, 0.5 A, 115VAC, 1 Phase 23Y181 - main

Electric Vibrator, 0.5 A, 115VAC, 1 Phase

  • Mfr # 23Y181

  • Zoro # G6163482

product price:  $279.99
/ea
Free Shipping & Returns

Key Features

Force Rating
143 lb
Power Source
Electric
Voltage
115VAC
Phase
1
Overall Length
6-3/8"
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
23Y181
Zoro #
G6163482
UPC #
190735190746
Country of Origin
Malta

Dimensions

Overall Length
6-3/8"
Overall Width
4-5/16"
Overall Height
3-1/8"

Details

Item
Electric Vibrator
Force Rating
143 lb
Power Source
Electric
Voltage
115VAC
Phase
1
Speed
3600 vpm
Bin Weight Capacity
1433 lb
Mounting Plate
No
HP
0.068
Standards
CE Certified
Force
Mechanically Adjustable
Max. Temp.
100 Degrees C
Housing Material
Aluminum
Enclosure
Totally Enclosed Non-Ventilated
End Bell Material
Steel
dBA
60
Application
Chutes and Pipes, Small size Bins Containing Fine to Granular Materials or Feeding Parts in Conveyor Lines
Duty
Continuous
Includes
Start Capacitor
Amps
0.5
Sound Level
60 dBA
Operating Voltage
115V AC
Mount Plate Included
No
Horsepower Rating
0.068 hp
Resistance Properties
Dust Proof
Maximum Bin Weight Capacity
1,433 lb
Maximum Vibration Speed
3,600 vpm
Duty Cycle
Continuous
Voltage Type
AC
Maximum Operating Temperature
100 Degrees C
Motor Enclosure
Totally Enclosed Nonventilated
Adjustable Force
Yes
Maximum Force
143 lbf
Mount Plate Required
No
Weight
5.3 lb
Full Load Current
0.5 A

Description

Electric Vibrator, Duty Cycle Continuous, Maximum Force 143 lbf, Voltage Type AC, Phase Single, Motor Enclosure Totally Enclosed Nonventilated, Sound Level 60 dBA, Power Source Electric Motor, Operating Voltage 115V AC, Maximum Bin Weight Capacity 1,433 lb, Full Load Current 0.5 A, Overall Length 6.38 in, Overall Width 4.31 in, Overall Height 3.13 in, Standards CE Certified, Weight 5.3 lb, Horsepower Rating 0.068 hp, Adjustable Force Yes
