Shop DAYTON

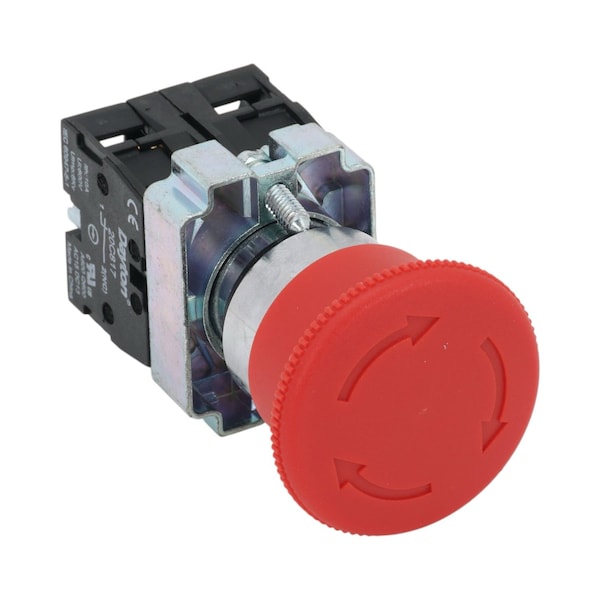

Emergency Stop Push Button, Metal, IP65

  • Mfr # GGS_116327

  • Zoro # G615705441

product price:  $45.69
/ea

Key Features

Push Button Style
Mushroom Head
Action
Maintained
Maintained Action Release
Twist
Operator Illumination
Non-Illuminated
Panel Cutout Diameter
22 mm
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
GGS_116327
Zoro #
G615705441
UPC #
-
Country of Origin
China

Dimensions

Panel Cutout Diameter
22 mm
Mushroom Head Diameter
40 mm
Overall Height
2.89 in
Overall Width
1.57 in
Overall Depth
1.59 in

Details

Item
Emergency Stop Push Button
Push Button Style
Mushroom Head
Action
Maintained
Maintained Action Release
Twist
Operator Illumination
Non-Illuminated
Head Color
Red
Head Material
Metal
Terminal Connection
Screw Clamp
Standards
cULus Listed
Number of Indicator Lights
0
Operating Temperature - Maximum
158 Degrees F
AC Contact Rating
1.2 A @ 600 V, 3 A @ 240 V, 6 A @ 120 V
NEMA Enclosure Rating
13, 4
Number of Operators
1
Operator Material
Plastic
IP Rating
IP65
Product Type
Emergency Stop Push Buttons
Resistance Properties
Corrosion Resistant
Mechanical Operating Durability
3.00 x 10^5
Bezel Material
Zinc Die Cast
Contact Form
2NC
Legend
No Legend
Operating Temperature - Minimum
-13 Degrees F
Operator Voltage Rating - Maximum
600 V AC/DC
DC Contact Rating
0.1 A @ 600 V, 0.27 A @ 250 V, 0.55 A @ 125 V

Description

Emergency Stop Push Button, Maintained Action, Head Material Metal, Contact Form 2NC, Number of Operators 1, IP Rating IP65, Legend Not Applicable, Standards cULus Listed, Terminal Connection Screw Clamp, Features Not Applicable
