Shop DAYTON

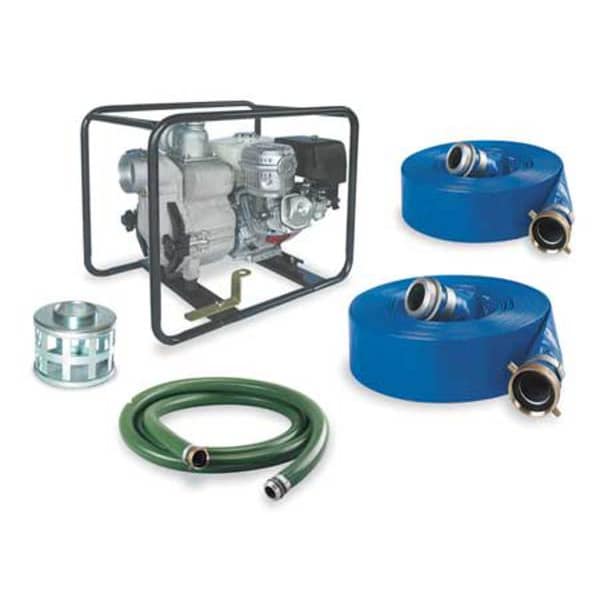

Engine Drive Pump Kit, 9.5HP, Honda Engine

  • Mfr # 7AJ16

  • Zoro # G1092253

product price:  $4,270.99
/ea
Additional $335.00 delivery surcharge applies per item.
See details

Key Features

Volute/Wear Plate
Cast Iron/Stainless Steel
Ignition Type
Electronic
Number of Impellers
1
Max. Suction Lift
25 ft
Impeller Material
Cast Iron
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
7AJ16
Zoro #
G1092253
UPC #
00799471519479
Country of Origin
Multiple

Dimensions

Length
28-3/4"
Width
19"
Engine Size
337 cc
Height
24"
Discharge Dia.
4 in
Overall Length
28 3/4 in
Overall Width
19 in
Max. Diameter Solids
1 1/8 in
Inlet Dia.
4 in
Overall Height
24 in
Solids Diameter - Maximum
1 1/8 in
Inlet Diameter
4 in
Discharge Diameter
4 in
Wire Rope Length
28 3/4 in

Details

Volute/Wear Plate
Cast Iron/Stainless Steel
Ignition Type
Electronic
Number of Impellers
1
Max. Suction Lift
25 ft
Impeller Material
Cast Iron
Tank Capacity
1.72 gal
Inlet
4 in NPSM
Material of Construction
Aluminum
Temp. Range
35 Degrees to 105 Degrees F
Engine RPM
3600
HP
9 1/2 hp
GPM of Water @ 70 Ft. of Head
75
GPM of Water @ 10 Ft. of Head
430
Includes
(2) 4 in x 50 ft Blue Discharge Hoses, 4 in Strainer, 4 in x 20 ft Green Suction Hose
GPM of Water @ 50 Ft. of Head
220
Outlet
4" NPSM
Mechanical Seal
Silicon Carbide, Buna N
GPM of Water @ 40 Ft. of Head
290
Engine/Motor Type
Gas
GPM of Water @ 30 Ft. of Head
360
Max. Pressure
35 psi
Max. Head
80 ft
Agency Compliance
EPA and CARB Certified Engine
Seal Material
Buna-N/Silicon Carbide
Application
Trash
Roll Bar Frame
Steel
Casing Adapter
Aluminum
Impeller Type
Semi-Open
Item
Engine Driven Pump
Check Valve
Buna N
GPM of Water @ 20 Ft. of Head
410
GPM of Water @ 60 Ft. of Head
150
Engine Brand
Honda
Sensor Type
Low Oil
Solids Handling Capacity
1-1/8"
Body Material
Aluminum
Pump Mechanism
Centrifugal
Discharge Standard
NPSM
Power Source
Gas Engine
Maximum Discharge Pressure
35 psi
Flow Rate @ 60 Ft. of Head
150 gpm
Frame Design
Roll Cage
RPM
3,600 RPM
Frame Material
Steel
Inlet Standard
NPSM
Discharge
4 in NPSM
Impeller Design
Semi-Open
Flow Rate @ 40 Ft. of Head
290 gpm
Flow Rate @ 10 Ft. of Head
430 gpm
Volute Material
Cast Iron/Stainless Steel
Flow Rate @ 20 Ft. of Head
410 gpm
Frame Design - Pumps
Full Tubular Frame
Standards
CARB Certified Engine, EPA Certified Engine
Discharge Pressure - Maximum
35 psi
Flow Rate @ 20 ft of Head
410 gpm
Rotation Speed - Maximum
3,600 RPM
Flow Rate @ 10 ft of Head
430 gpm
Suction Lift - Maximum
25 ft
Horsepower
9 1/2 hp
Feet of Head - Maximum
80 ft
Power Source - TS Only
Gas Engine

Description

Engine Driven Pump, Engine Size 337 cc, HP 9 1/2 hp, Tank Capacity 1.72 gal, Ignition Type Electronic, Pump Mechanism Centrifugal, Body Material Aluminum, Volute Material Cast Iron/Stainless Steel, Seal Material Buna-N/Silicon Carbide, Frame Material Steel, Flow Rate @ 10 Ft. of Head 430 gpm, Flow Rate @ 20 Ft. of Head 410 gpm, Flow Rate @ 40 Ft. of Head 290 gpm, Flow Rate @ 60 Ft. of Head 150 gpm, Max. Head 80 ft, Max. Suction Lift 25 ft, Frame Design - Pumps Full Tubular Frame
