Product Information
MFR #
44YU19
Zoro #
G1840085
UPC #
190735299890
Country of Origin
United States
Dimensions
Mesh Size
1.8 in spacing cone guard
Venturi Depth (In.)
4 1/2 in
Dimension L (In.)
13 5/8 in
Max. Depth (In.)
51 47/100 in
Cone Depth (In.)
19 in
Cone Dia. (In.)
66 63/100 in
Shaft Dia. (In.)
1 in
Dimension B (In.)
64 3/4 in
Height (In.)
58 5/8 in
Dimension J (In.)
66 5/8 in
Propeller Dia. (In.)
54 in
Dimension G (In.)
33 3/4 in
Dimension A (In.)
62 5/8 in
Dimension K (In.)
74 1/4 in
Dimension AA (In.)
58 1/8 in
Width (In.)
58 39/64 in
Dimension F (In.)
64 1/2 in
Dimension C (In.)
28 3/4 in
Flange Width (In.)
2 in
Venturi Clearance Dia. (In.)
5/16 in
Dimension H (In.)
51 1/2 in
Dimension D (In.)
13 1/8 in
Dimension BB (In.)
60 1/8 in
Dimension E (In.)
4 1/8 in
Overall Width
58 5/8 in
Overall Height
58 5/8 in
Flange Width
2 in
Venturi Depth
4 1/2 in
For Cut-Out Width
59 1/2 in
Overall Depth
51 1/2 in
Blade Diameter
54 in
Overall Diameter
59 1/8 in
Grille Width
60 1/8 in
Grille Length
58 1/8 in
For Cutout HxW
62 1/2 in x 59 1/2 in
For Cut-Out Height
62 1/2 in
Shaft Diameter
1 in
For Maximum Wall Thickness
8 in
Cone Depth
19 in
For Minimum Wall Thickness
6 in
Manufacturer Warranty Length
1 yr
Description

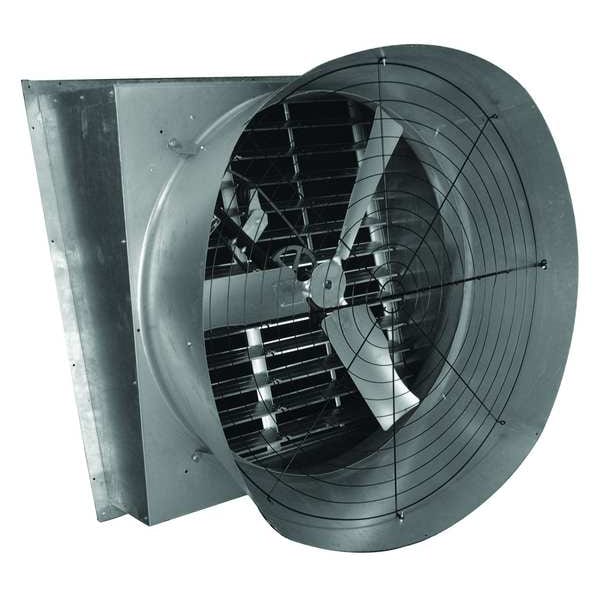

Agricultural Exhaust Fan, Assembled Unassembled, Blade Diameter 54 in, Blade Material Steel, Drive Type Belt Drive, Exhaust Airflow @ 0.000 in SP 27,300 cfm, For Cut-Out Height 62 1/2 in, For Cut-Out Width 59 1/2 in, For Maximum Wall Thickness 8 in, For Minimum Wall Thickness 6 in, Frame Finish Galvanized, Frame Material Steel, Guard Finish Zinc Plated, Guard Material Steel, Guard Type Exhaust, Housing Material Steel, Housing Finish Galvanized
