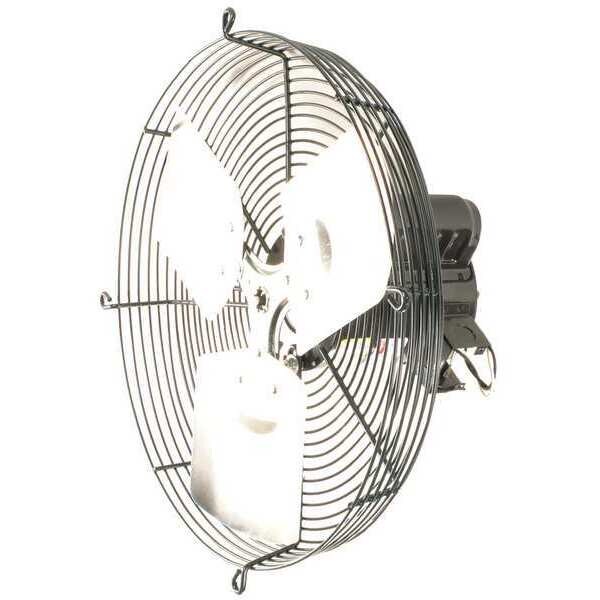

Dayton Exhaust Fan, 16 In, 115V, 1280 CFM 1HKL5

Exhaust Fan, 16 In, 115V, 1280 CFM (Discontinued)

  • Mfr # 1HKL5
  • Zoro # G1552783
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
1HKL5
Zoro #
G1552783
UPC #
190735141915
Country of Origin
China

Dimensions

Max. Depth
7 7/8 in
Blade Dia.
16 in
Outside Dia.
17 5/8 in
Blade Diameter
16 in
Overall Diameter
17 5/8 in
Overall Depth
7 7/8 in

Details

Item
Guard-Mounted Exhaust Fan
Mounting Holes O.C.
12 29/32 in
Standards
UL/cUL UL705 E53236
Blade Material
Aluminum
Exhaust/Supply Fan Motor HP
1/20 hp
Motor Enclosure
Totally Enclosed Air Over
Number of Blades
3
Motor RPM
1,550 RPM
CFM @ 0.125-In. SP
540 cfm
Sones @ 0.000-In. SP @ 5 Ft.
6.14
Operating Amps
0.85
Hz
60
Max. Ambient Temp.
104 Degrees F
Includes
Wiring, Junction Box, and Leads
Bearing Type
Ball
Guard Material
Steel
Wire Guard Finish
Gray Polyester
Exhaust/Supply Fan Item
Exhaust Fan
Mounting Position
Horizontal or Vertical
Thermal Protection
Auto
Phase
1
CFM @ 0.000-In. SP
1,280 cfm
Motor Insulation
Class B
Fan Voltage
115V AC
Motor Type
3-Phase
Drive Package Included
No
Voltage
115
Fan Style
Guard-Mounted
Motor Enclosure Design
Totally Enclosed Air Over (TEAO)
Exhaust Airflow @ 0.125 in SP
540 cfm
Mounting Orientation
Horizontal, Vertical
Guard Finish
Polyester
Nameplate Voltage
115V AC
Maximum Ambient Operating Temperature
104 Degrees F
Includes Motor
Yes
Exhaust Airflow @ 0.000 in SP
1,280 cfm
Motor Speed
1,550 RPM
Maximum Noise Level
6.14 sones
Motor Horsepower
1/20 hp
Ventilation Type
Exhaust
Noise Level @ 0.000 in SP @ 5 ft
6.14 sones

Description

Guard-Mounted Exhaust Fan, Blade Diameter 16 in, Blade Material Aluminum, Duct Diameter Not Applicable, Exhaust Airflow @ 0.000 in SP 1,280 cfm, Guard Finish Polyester, Guard Material Steel, Includes Wiring, Junction Box, and Leads, Maximum Noise Level 6.14 sones
