  9. Exhaust Fan, 20 In, Hazardous Location
Shop All Exhaust and Supply Fan Accessories
Dayton

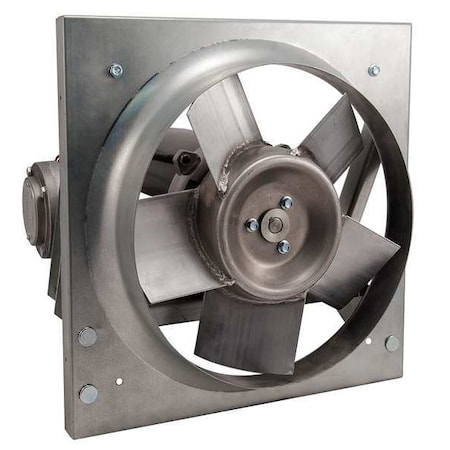

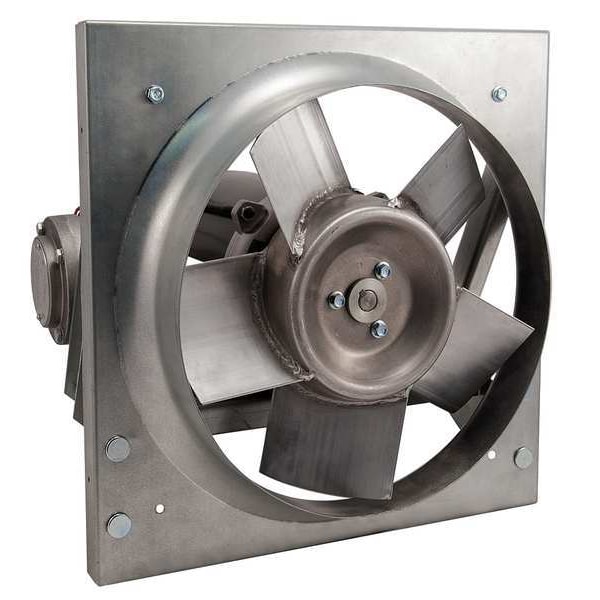

Exhaust Fan, 20 In, Hazardous Location

product price: $1,162.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Type Direct Drive, Hazardous Location
  • Blade Dia. 20 in
  • Fan Voltage 115/208-230V AC
  • Exhaust/Supply Fan Motor HP 1/2 hp
  • Drive Package With Motor Included No
See all product information

Product Information

Dimensions

Blade Dia. 20 in
Flange Width (In.) 1 in
Dimension A (In.) 24 in
Venturi Depth (In.) 3 1/2 in
Height (In.) 24 in
Shaft Dia. (In.) 5/8 in
Dimension B (In.) 11 1/2 in
Width (In.) 24 in
Max. Depth (In.) 15 3/8 in
Dimension D (In.) 20 1/2 in
Dimension C (In.) 3 3/4 in
Flange Width 24 in
Venturi Depth 4 in
Overall Depth 15 1/4 in
For Cut-Out Length 22 1/2 in
Blade Diameter 20 in
Shaft Diameter 5/8 in
Overall Height 24 in
For Cut-Out Width 22 1/2 in
Venturi Diameter 20 1/2 in
Overall Width 24 in
Manufacturer Warranty Length 1 yr

Details

Item Panel Exhaust Fan
Exhaust/Supply Fan Item Exhaust Fan
Type Direct Drive, Hazardous Location
Fan Voltage 115/208-230V AC
Exhaust/Supply Fan Motor HP 1/2 hp
Drive Package With Motor Included No
CFM @ 0.000-In. SP 4,557 cfm
Sones @ 0.000-In. SP @ 5 Ft. 23
Full Load Amps 7.4/3.9-3.7
CFM @ 0.500-In. SP 3,101 cfm
Intake Guard No. 1WBU2
Frame Material Steel
Drive Package Included No
CFM @ 0.375-In. SP 3,542 cfm
Number of Blades 3
Motor RPM 1,750 RPM
Watts 373 W
Agency Compliance UL and cUL Listed, AMCA, CSA Certified Motor
CFM @ 0.125-In. SP 4,254 cfm
For Use With NEC Class I, Div 1, Group C and D; NEC Class II, Div 1, Group F and G
Hz 60
Bearing Type Ball
Mounting Position Vertical or Horizontal
Propeller Material Aluminum
Aluminum Wall Shutter No. 4C559
Motor Enclosure Totally Enclosed Fan Cooled
Max. Ambient Temp. (F) 104 Degrees F
Phase 1
CFM @ 0.250-In. SP 3,919 cfm
Motor Insulation Class B
Frame Finish Zinc Plated
Motor Type 3-Phase
Hazardous Location Class Class I, Div 1, Group C and D; Class II, Div 1, Group F and G
Includes Hazardous Location Motor
Standards AMCA, C-UL Listed, CSA, UL Listed
Number of Fans 1
Maximum Ambient Operating Temperature 104 Degrees F
Housing Finish Galvanized
Blade Material Aluminum
Full Load Current 7.4 A
Fan Style Panel
Exhaust Airflow @ 0.125 in SP 4,254 cfm
Includes Grill No
Includes Motor Yes
Exhaust Airflow @ 0.000 in SP 4,557 cfm
Housing Material Steel
Noise Level @ 0.125 in SP @ 5 ft 22 sones
Maximum Inlet Temperature 104 Degrees F
Exhaust Airflow @ 0.500 in SP 3,101 cfm
Vent Design Ductless
Includes Dehumidistat No
Maximum Noise Level 23 sones
Motor Horsepower 1/2 hp
Motor Speed 1,750 RPM
Nameplate Voltage 115/208-230V AC
Wattage 373 W
Noise Level @ 0.000 in SP @ 5 ft 23 sones
Speed Controllable No
Frequency 60 Hz
Maximum Airflow 4,557 cfm
Ventilation Type Exhaust
Drive Type Direct Drive
Guard Type None
Method of Construction Stamped
Exhaust Airflow @ 0.375 in SP 3,542 cfm
Assembled Assembled
Mounting Orientation Horizontal, Vertical
Exhaust Airflow @ 0.250 in SP 3,919 cfm
Number of Speeds 1
Voltage 115/208-230

Description

Panel Exhaust Fan, Assembled Assembled, Blade Diameter 20 in, Blade Material Aluminum, Drive Type Direct Drive, Duct Diameter Not Applicable, Exhaust Airflow @ 0.000 in SP 4,557 cfm, For Cut-Out Width 22 1/2 in, Frame Finish Zinc Plated, Frame Material Steel, Guard Type None, Hazardous Location Class Class I, Div 1, Group C and D; Class II, Div 1, Group F and G, Housing Material Steel, Housing Finish Galvanized, Includes Hazardous Location Motor, Includes Dehumidistat No

Restrictions

  • This item has been restricted from sale in the following states: NJ
