  9. Exhaust Fan, 24 In, 4430 CFM
Shop All Exhaust and Supply Fan Accessories
Dayton

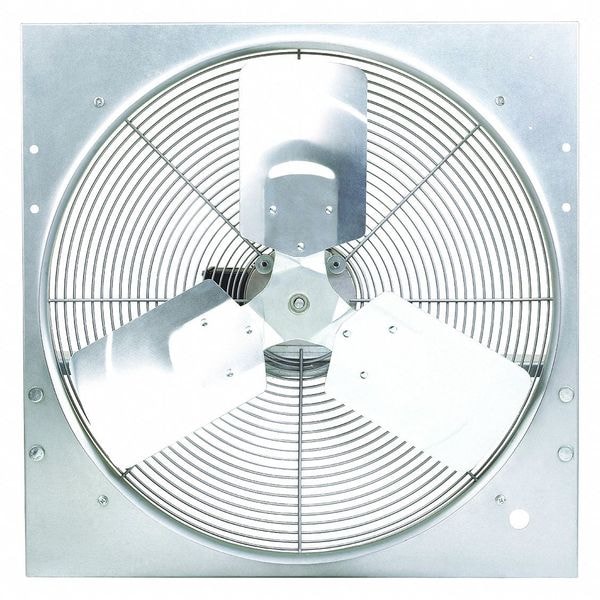

Exhaust Fan, 24 In, 4430 CFM

product price: $561.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Number of Blades 3
  • Frame Finish Galvanized
  • Blade Dia. 24 in
  • Max. Ambient Temp. (F) 104 Degrees F
  • Galvanized Wall Shutter No. 1C746
See all product information

Product Information

Dimensions

Blade Dia. 24 in
Dimension A (In.) 28 in
Outside Dia. (In.) 28 in
Venturi Clearance Dia. (In.) 24 3/8 in
Height (In.) 28 in
Width (In.) 28 in
Dimension C (In.) 3 3/4 in
Max. Depth (In.) 10 3/4 in
Inside Dia. (In.) 24 3/8 in
Flange Width (In.) 1 in
Dimension B (In.) 7 in
Dimension D (In.) 24 1/2 in
Venturi Depth (In.) 3 1/4 in
Overall Width 28 in
Overall Height 28 in
Flange Width 1 in
Venturi Depth 3 1/2 in
Venturi Diameter 24 1/2 in
Overall Diameter 28 in
Blade Diameter 24 in
Overall Depth 10 3/4 in
Duct Diameter 24 1/2 in
For Cut-Out Diameter 24 1/2 in

Details

Item Exhaust Fan
Number of Blades 3
Frame Finish Galvanized
Max. Ambient Temp. (F) 104 Degrees F
Galvanized Wall Shutter No. 1C746
Speed Control No
Phase 1
Voltage 115/230
Frame Material Steel
CFM @ 0.000-In. SP 4,770 cfm
CFM @ 0.125-In. SP 4,198 cfm
For Use With General Ventilation Applications
Hz 60
CFM @ 0.250-In. SP 3,498 cfm
Aluminum Wall Shutter No. 3C308
Agency Compliance UL and cUL Listed, AMCA
Motor RPM 1,150 RPM
Exhaust/Supply Fan Motor HP 1/3 hp
Full Load Amps 3.3/1.8
Motor Enclosure Totally Enclosed Air Over
Guard Material Steel
Motor Insulation Class B
Sones @ 0.125-In. SP @ 5 Ft. 21
Type Medium Duty Direct Drive
Mounting Position Vertical
Sones @ 0.000-In. SP @ 5 Ft. 16.6
Fiberglass Wall Shutter No. 5C215
Propeller Material Aluminum
Drive Package Included No
CFM @ 0.375-In. SP 2,764 cfm
Bearing Type Ball
Fan Voltage 115/230V AC
Watts 280 W
Wire Guard Finish Zinc Plated
Exhaust/Supply Fan Item Exhaust Fan
Standards AMCA, UL and cUL Listed
Vent Design Ductless
Electrical Connection Hardwired
Motor Speed 1,150 RPM
Speed Controllable No
Wattage 290 W, 305 W
Maximum Noise Level 16.6 sones
Fan Style Panel
Guard Type Intake
Exhaust Airflow @ 0.125 in SP 4,198 cfm
Drive Type Direct Drive
Exhaust Airflow @ 0.000 in SP 4,770 cfm
Noise Level @ 0.125 in SP @ 5 ft 21 sones
Blade Material Aluminum
Guard Finish Zinc Plated
Assembled Assembled
Nameplate Voltage 115/230V AC
Includes Motor Yes
Exhaust Airflow @ 0.250 in SP 3,498 cfm
Motor Horsepower 1/3 hp
Maximum Ambient Operating Temperature 104 Degrees F
Exhaust Airflow @ 0.100 in SP 4,198 cfm
Number of Speeds 1
Duct Shape Round
Exhaust Airflow @ 0.375 in SP 2,764 cfm
Ventilation Type Exhaust
Includes Dehumidistat No
Noise Level @ 0.000 in SP @ 5 ft 16.6 sones
Method of Construction Stamped

Description

Exhaust Fan, Assembled Assembled, Blade Diameter 24 in, Blade Material Aluminum, Drive Type Direct Drive, Duct Diameter 24 1/2 in, Exhaust Airflow @ 0.000 in SP 4,770 cfm, Frame Finish Galvanized, Frame Material Steel, Guard Finish Zinc Plated, Guard Material Steel, Guard Type Intake, Includes Dehumidistat No, Maximum Noise Level 16.6 sones
