  9. Exhaust Fan, 20 In, 3491 CFM
Shop All Exhaust and Supply Fan Accessories
Dayton

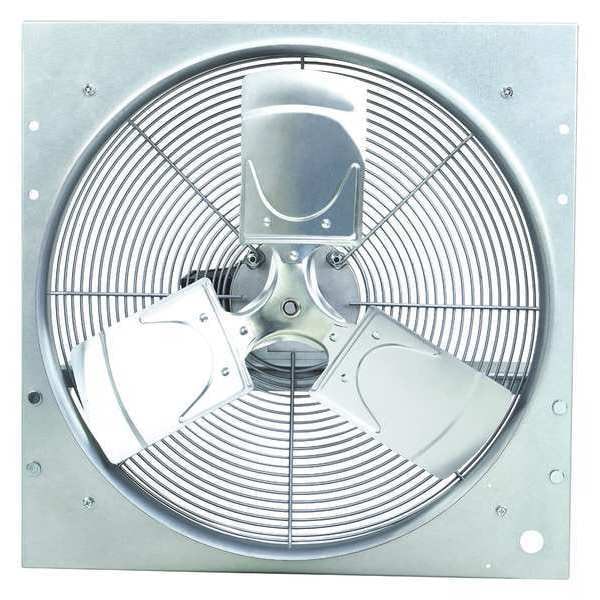

Exhaust Fan, 20 In, 3491 CFM

product price: $556.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Hz 60
  • Motor RPM 1,150 RPM
  • For Use With General Ventilation Applications
  • Fan Voltage 115V AC
  • Blade Dia. 20 in
See all product information

Product Information

Dimensions

Blade Dia. 20 in
Dimension C (In.) 3 3/8 in
Dimension A (In.) 24 in
Inside Dia. (In.) 20 1/2 in
Venturi Depth (In.) 3 1/4 in
Dimension B (In.) 7 in
Dimension D (In.) 20 5/8 in
Max. Depth (In.) 10 3/8 in
Venturi Clearance Dia. (In.) 20 1/2 in
Outside Dia. (In.) 24 in
Width (In.) 24 in
Flange Width (In.) 1 in
Height (In.) 24 in
Overall Height 24 in
Overall Width 24 in
Venturi Depth 3 1/2 in
Flange Width 1 in
Overall Diameter 24 in
Duct Diameter 20 1/2 in
For Cut-Out Diameter 20 1/2 in
Blade Diameter 20 in
Venturi Diameter 20 1/2 in
Overall Depth 10 3/8 in

Details

Item Exhaust Fan
Hz 60
Motor RPM 1,150 RPM
For Use With General Ventilation Applications
Fan Voltage 115V AC
Full Load Amps 2.8
CFM @ 0.125-In. SP 3,280 cfm
Aluminum Wall Shutter No. 4C559
Exhaust/Supply Fan Motor HP 1/4 hp
Motor Enclosure Totally Enclosed Air Over
Sones @ 0.000-In. SP @ 5 Ft. 15.3
Guard Material Steel
Motor Insulation Class B
Max. Ambient Temp. (F) 104 Degrees F
CFM @ 0.250-In. SP 2,629 cfm
Number of Blades 3
Mounting Position Vertical
Wire Guard Finish Zinc Plated
CFM @ 0.000-In. SP 3,647 cfm
Speed Control 48C172
Fiberglass Wall Shutter No. 5C214
Drive Package Included No
Propeller Material Aluminum
Frame Finish Galvanized
Phase 1
Agency Compliance UL and cUL Listed, AMCA
Watts 260 W
Frame Material Steel
Sones @ 0.125-In. SP @ 5 Ft. 17.4
Galvanized Wall Shutter No. 1C745
Exhaust/Supply Fan Item Exhaust Fan
Type Medium Duty Direct Drive
Voltage 115
Bearing Type Ball
CFM @ 0.375-In. SP 1,781 cfm
Standards AMCA, UL and cUL Listed
Ventilation Type Exhaust
Blade Material Aluminum
Exhaust Airflow @ 0.000 in SP 3,647 cfm
Vent Design Ductless
Electrical Connection Hardwired
Assembled Assembled
Number of Speeds 1
Guard Finish Zinc Plated
Noise Level @ 0.125 in SP @ 5 ft 17 sones
Includes Motor Yes
Wattage 260 W
Exhaust Airflow @ 0.100 in SP 3,280 cfm
Duct Shape Round
Fan Style Panel
Exhaust Airflow @ 0.375 in SP 1,781 cfm
Guard Type Intake
Maximum Noise Level 15.3 sones
Drive Type Direct Drive
Motor Speed 1,150 RPM
Noise Level @ 0.000 in SP @ 5 ft 15.3 sones
Exhaust Airflow @ 0.125 in SP 3,280 cfm
Motor Horsepower 1/4 hp
Speed Controllable Yes
Exhaust Airflow @ 0.250 in SP 2,629 cfm
Nameplate Voltage 115V AC
Method of Construction Stamped
Maximum Ambient Operating Temperature 104 Degrees F
Includes Dehumidistat No

Description

Exhaust Fan, Assembled Assembled, Blade Diameter 20 in, Blade Material Aluminum, Drive Type Direct Drive, Duct Diameter 20 1/2 in, Exhaust Airflow @ 0.000 in SP 3,647 cfm, Frame Finish Galvanized, Frame Material Steel, Guard Finish Zinc Plated, Guard Material Steel, Guard Type Intake, Includes Dehumidistat No, Maximum Noise Level 15.3 sones
