Shop DAYTON

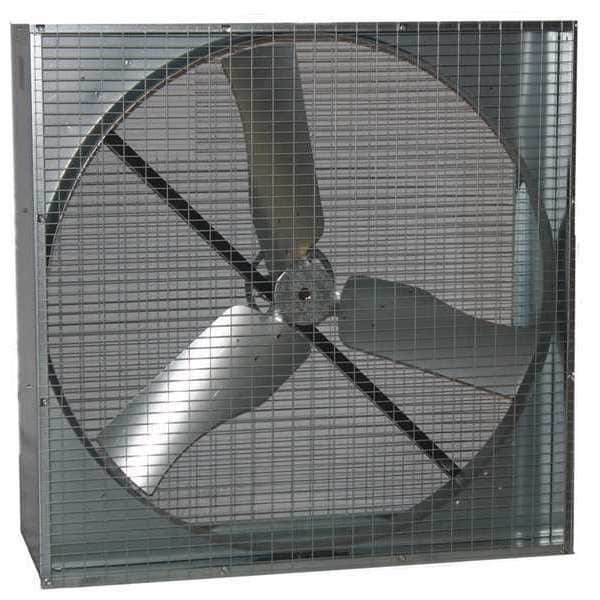

Exhaust Fan, 48In, Belt Drive Less Motor

  • Mfr # 44YU20

  • Zoro # G1840076

product price:
$
1,534.99
/ea
Additional $80.00 delivery surcharge applies per item.
See details

Key Features

Type
Belt Drive, Less Motor
Frame Material
Steel
Requires
1 hp Capacitor Start Totally Enclosed 1725 RPM Motor
CFM/Watt @ 0.050-In. SP
19.5
Opening Required W (In.)
52 7/8 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
44YU20
Zoro #
G1840076
UPC #
190735299906
Country of Origin
United States

Dimensions

Width (In.)
52 1/8 in
Venturi Depth (In.)
4 1/2 in
Height (In.)
52 1/8 in
Mesh Size
1 in x 2 in
Dimension D (In.)
3/8 in
Venturi Clearance Dia. (In.)
5/16 in
Shaft Dia. (In.)
1 in
Dimension C (In.)
22 in
Propeller Dia. (In.)
48 in
Dimension A (In.)
52 1/8 in
Max. Depth (In.)
17 in
Dimension B (In.)
17 in
Overall Height
52 1/8 in
Overall Width
52 1/8 in
Venturi Depth
4 1/2 in
Blade Diameter
48 in
Venturi Diameter
3/8 in
Shaft Diameter
1 in
For Cut-Out Height
53 in
Overall Depth
17 in
For Cut-Out Width
53 in

Details

Type
Belt Drive, Less Motor
Frame Material
Steel
Requires
1 hp Capacitor Start Totally Enclosed 1725 RPM Motor
CFM/Watt @ 0.050-In. SP
19.5
Opening Required W (In.)
52 7/8 in
Propeller Material
Galvanized Steel
Bearing Type
Permanently Lubricated Sealed Ball
Number of Blades
3
Frame Finish
Zinc-Plated
Motor RPM
1725
CFM @ 0.150-In. SP
15,347
Item
Agricultural Exhaust Fan
CFM/Watt @ 0.000-In. SP
21.6
Fan RPM
608
CFM @ 0.100-In. SP
16,773
Opening Required H (In.)
52 7/8 in
CFM/Watt @ 0.150-In. SP
15.4
Max. Ambient Temp. (F)
104 Degrees F
CFM/Watt @ 0.100-In. SP
17.3
Includes
Intake And Discharge Screens, Drive Sheaves And Belt, Mounting Frame
For Use With
Farm Duty Motor (not Included)
Mounting Location
Vertical
HP
1 hp
CFM @ 0.000-In. SP
19,608
CFM @ 0.050-In. SP
18,228
Standards
OSHA, UL
Ventilation Type
Exhaust
Blade Finish
Galvanized
Maximum Static Pressure
0.3 in wg
Maximum Ambient Operating Temperature
104 Degrees F
Drive Type
Belt Drive
For Maximum Motor Speed
1,725 RPM
For Maximum Motor Horsepower
1 hp
Mounting Orientation
Vertical
Includes Motor
No
For Minimum Motor Speed
525 RPM
Blade Material
Steel
Fan Style
Guard-Mounted
Guard Type
Intake
Assembled
Unassembled
Minimum Airflow
19,000 cfm
For Minimum Motor Horsepower
1 hp
Maximum Airflow
19,608 cfm

Description

Agricultural Exhaust Fan, Assembled Unassembled, Blade Diameter 48 in, Blade Material Steel, Frame Material Steel, For Maximum Motor Horsepower 1 hp, For Maximum Motor Speed 1,725 RPM, For Minimum Motor Horsepower 1 hp, For Minimum Motor Speed 525 RPM, Maximum Airflow 19,608 cfm, Maximum Static Pressure 0.3 in wg, Minimum Airflow 19,000 cfm, For Cut-Out Height 53 in, For Cut-Out Width 53 in, Guard Type Intake, Number of Blades 3, Includes Motor No, Overall Depth 17 in, Overall Height 52 1/8 in
