Dayton

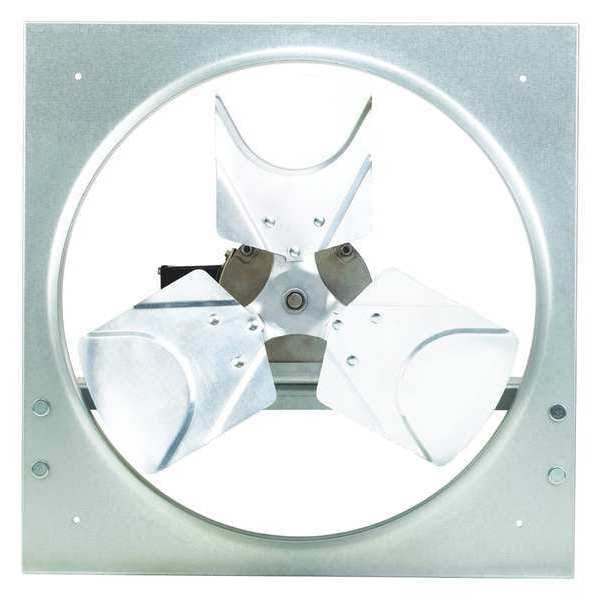

Exhaust/Supply Fan, 16 In

product price: $409.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Drive Package With Motor Included No
  • Exhaust/Supply Fan Motor HP 1/4 hp
  • Blade Dia. 16 in
  • Fan Voltage 115/230V AC
  • Motor Enclosure Totally Enclosed Air Over
See all product information

Product Information

Dimensions

Blade Dia. 16 in
Shaft Dia. (In.) 1/2 in
Dia. Opening Required (In.) 18 in
Dimension D (In.) 16 3/8 in
Max. Depth (In.) 9 3/4 in
Dimension C (In.) 2 3/4 in
Height (In.) 20 in
Width (In.) 20 in
Dimension B (In.) 7 in
Dimension A (In.) 20 in
Overall Depth 9 3/4 in
Overall Width 20 in
Overall Diameter 1/2 in
Overall Height 20 in
Blade Diameter 16 in
For Cut-Out Diameter 18 in

Details

Exhaust/Supply Fan Item Reversible Exhaust/Supply Fan
Drive Package With Motor Included No
Exhaust/Supply Fan Motor HP 1/4 hp
Fan Voltage 115/230V AC
Motor Enclosure Totally Enclosed Air Over
Fan RPM 1750/1741
Exhaust/Supply CFM @ 0.000-In. SP 2027/1811
Operating Amps 2.8/1.5
Type Direct Drive Reversible
Recommended Wall Housing 3FKF5
Speed 1
Max. Inlet Temp. (Deg. F) 104 Degrees F
Item Exhaust/Supply Fan
Includes Reversing Switch
Number of Blades 3
Phase 1
Recommended Intake Guards 1WBT9
Motor RPM 1750/1741
Propeller Material Aluminum
Motor Insulation Class B
Max. Ambient Temp. (F) 104 Degrees F
Mounting Position Vertical
Recommended Wall Collar 16D552
Exhaust/Supply CFM @ 0.250-In. SP 1370/1340
Hz 60
Agency Compliance UL and cUL Listed, AMCA
Bearing Type Ball
Drive Package Included Yes
Frame Finish Galvanized
Exhaust/Supply CFM @ 0.125-In. SP 1755/1625
Exhaust/Supply CFM @ 0.375-In. SP 995/940
Motor Type 3-Phase
Exhaust Airflow @ 0.375 in SP 940 cfm
Maximum Ambient Operating Temperature 104 Degrees F
Fan Style Panel
Supply Airflow @ 0.375 in SP 940 cfm
Exhaust Airflow @ 0.250 in SP 1,370 cfm
Standards AMCA, UL and cUL Listed
Blade Material Aluminum
Motor Speed 1,750 RPM
Frame Material Steel
Motor Horsepower 1/4 hp
Supply Airflow @ 0.000 in SP 1,811 cfm
Exhaust Airflow @ 0.125 in SP 1,755 cfm
Nameplate Voltage 115/230V AC
Exhaust Airflow @ 0.000 in SP 2,027 cfm
Supply Airflow @ 0.125 in SP 1,625 cfm
Supply Airflow @ 0.250 in SP 1,340 cfm
Includes Motor Yes
Ventilation Type Reversible
Mounting Orientation Vertical
Maximum Inlet Temperature 104 Degrees F
Voltage 115/230

Description

Exhaust/Supply Fan, Blade Diameter 16 in, Blade Material Aluminum, Exhaust Airflow @ 0.000 in SP 2,027 cfm, Frame Finish Galvanized, Frame Material Steel, Includes Reversing Switch
