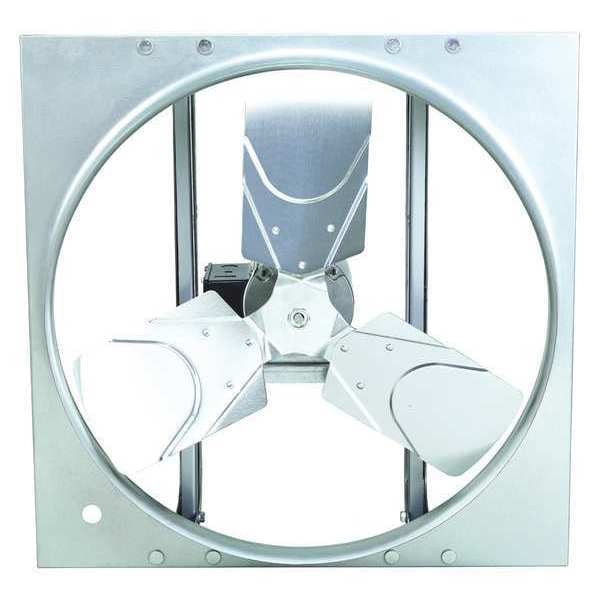

Dayton Exhaust/Supply Fan, 24 In 10E026 - main

Exhaust/Supply Fan, 24 In

  • Mfr # 10E026

  • Zoro # G4105857

product price: $562.99
/ea
Item requires special delivery charges. A $130.00 per item surcharge will be applied.

Key Features

Exhaust/Supply Fan Item
Reversible Exhaust/Supply Fan
Drive Package With Motor Included
No
Exhaust/Supply Fan Motor HP
1/2 hp
Blade Dia.
24 in
Fan Voltage
115/230V AC
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
10E026
Zoro #
G4105857
UPC #
190735109489
Country of Origin
China

Dimensions

Blade Dia.
24 in
Shaft Dia. (In.)
1/2 in
Dia. Opening Required (In.)
26 in
Width (In.)
28 in
Height (In.)
28 in
Dimension A (In.)
28 in
Dimension D (In.)
24 1/2 in
Max. Depth (In.)
11 3/4 in
Dimension C (In.)
3 3/4 in
Dimension B (In.)
8 in
Overall Depth
11 3/4 in
Overall Height
28 in
Blade Diameter
24 in
For Cut-Out Diameter
26 in
Overall Width
28 in
Overall Diameter
1/2 in

Details

Exhaust/Supply Fan Item
Reversible Exhaust/Supply Fan
Drive Package With Motor Included
No
Exhaust/Supply Fan Motor HP
1/2 hp
Fan Voltage
115/230V AC
Motor Enclosure
Totally Enclosed Air Over
Fan RPM
1150/1150
Exhaust/Supply CFM @ 0.000-In. SP
5352/4516
Operating Amps
5.4/2.8
Type
Direct Drive Reversible
Recommended Intake Guards
1WBU3
Recommended Wall Housing
3FKF8
Number of Blades
3
Max. Inlet Temp. (Deg. F)
104 Degrees F
Mounting Position
Vertical
Exhaust/Supply CFM @ 0.125-In. SP
4742/4071
Motor Insulation
Class B
Exhaust/Supply CFM @ 0.250-In. SP
3986/3604
Bearing Type
Ball
Item
Exhaust/Supply Fan
Frame Finish
Galvanized
Recommended Wall Collar
1WBV1
Agency Compliance
UL and cUL Listed, AMCA
Hz
60
Includes
Reversing Switch
Speed
1
Phase
1
Propeller Material
Aluminum
Drive Package Included
Yes
Exhaust/Supply CFM @ 0.375-In. SP
2620/2703
Motor RPM
1150/1150
Max. Ambient Temp. (F)
104 Degrees F
Motor Type
3-Phase
Supply Airflow @ 0.125 in SP
4,071 cfm
Maximum Inlet Temperature
104 Degrees F
Supply Airflow @ 0.000 in SP
4,516 cfm
Motor Horsepower
1/2 hp
Blade Material
Aluminum
Ventilation Type
Reversible
Exhaust Airflow @ 0.375 in SP
2,703 cfm
Frame Material
Steel
Exhaust Airflow @ 0.250 in SP
3,604 cfm
Maximum Ambient Operating Temperature
104 Degrees F
Mounting Orientation
Vertical
Exhaust Airflow @ 0.125 in SP
4,742 cfm
Nameplate Voltage
115/230V AC
Includes Motor
Yes
Standards
AMCA, UL and cUL Listed
Fan Style
Panel
Motor Speed
1,150 RPM
Supply Airflow @ 0.250 in SP
3,604 cfm
Exhaust Airflow @ 0.000 in SP
5,352 cfm
Supply Airflow @ 0.375 in SP
2,703 cfm
Voltage
115/230

Description

Exhaust/Supply Fan, Blade Diameter 24 in, Blade Material Aluminum, Exhaust Airflow @ 0.000 in SP 5,352 cfm, Frame Finish Galvanized, Frame Material Steel, Includes Reversing Switch
