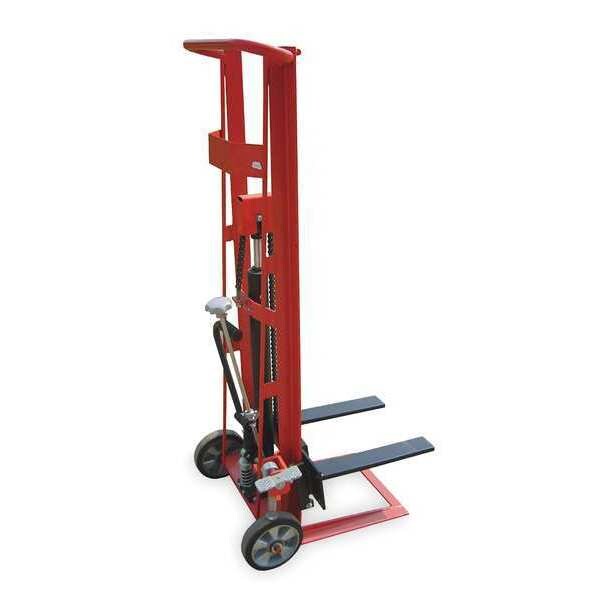

Fixed Base Hydraulic Stacker, Load Cap. 750 lb.

  • Mfr # 2MPU9
  • Zoro # G2835729
product price:
$
1,093.99
/ea
Additional $205.00 delivery surcharge applies per item.
See details

Key Features

Overall Height
60 1/2 in
Overall Length
30 in
Overall Width
21 7/8 in
Color
Red
Load Capacity
750 lb
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
2MPU9
Zoro #
G2835729
UPC #
190735226827
Country of Origin
China

Dimensions

Overall Height
60 1/2 in
Overall Length
30 in
Overall Width
21 7/8 in
Front Caster Dia.
5 in
Fork Length
18 in
Rear Wheel Dia.
8 in
Rear Caster Dia.
8 in
Lifting Height Min.
1/2 in
Fork Width
3 in
Lifting Height Max.
54 in
Minimum Lifting Height
1/2 in
Caster Wheel Dia.
8 in
Overall LxWxH
30 in x 21 7/8 in x 60 1/2 in
Width Between Forks
15 7/8 in
Fork Thickness
3/4 in
Maximum Lifting Height
54 in
Width Across Forks
7 in to 21 7/8 in
Overall Height with Forks Raised
60 1/2 in
Base Outside Width
15 3/8 in
Overall Height with Forks Lowered
60 1/2 in
Lifting Height Range
1/2 in to 4 ft 6 in
Base Inside Width
11 3/8 in
Axle-Mounted Wheel Dia.
8 in
Wire Rope Length
30 in
Length
30 in

Details

Color
Red
Load Capacity
750 lb
Item
Manual Fork-Over Stacker
Lift Mechanism
Hydraulic
Base Legs Inside Dim.
11-3/8 in
Powered By
Manual Foot Pump
Lift Base Style
Fixed Straddle
Invertible Forks
No
Base Legs Outside Dim.
15-3/8 in
Load Center
10 in
Lift Mobility
Manual Lift, Manual Push
Lift Control
Foot Pump
Frame Material
Steel
Caster Wheel Type
(2) Rigid, (2) Swivel
Operation
Manual
Caster Brake Type
No Caster Brake
Frame Finish
Powder Coated
Base Style
Fixed Forkover
Fork Type
Adjustable
Caster/Wheel Configuration
(2) Axle Mounted
For Pallet Type
Open
Number of Batteries
0
Non-Marking Casters/Wheels
No
Axle-Mounted Wheel/Tread Material
Polyurethane
Frame Type
Flat Back
Axle-Mounted Wheel Type
Tread on Core
Non-Marking Axle-Mounted Wheels
No
Caster Wheel/Tread Material
Polyurethane
Base Material
Steel
Base Type
Fixed Forkover
Wire Color
Red

Description

Manual, Base Type Fixed Forkover, Lift Control Foot Pump, Lift Mechanism Hydraulic, Fork Type Adjustable, Load Capacity 750 lb, Fork Length 18 in, Fork Width 3 in, Width Between Forks 15 7/8 in, Width Across Forks 7 in to 21 7/8 in, Minimum Lifting Height 1/2 in, Maximum Lifting Height 54 in, Lifting Height Range 1/2 in to 4 ft 6 in, Overall Length 30 in, Overall Width 21 7/8 in, Overall Height with Forks Lowered 60 1/2 in, Overall Height with Forks Raised 60 1/2 in, Base Outside Width 15 3/8 in
