Shop DAYTON

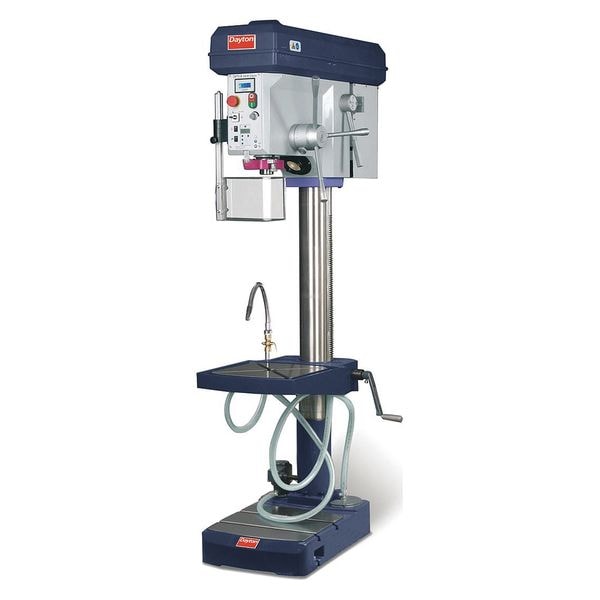

Floor Drill Press, Belt Drive, 3 hp, 230V AC V, 22 in Swing, Variable Speed

  • Mfr # 53UH06

  • Zoro # G9188956

product price:  $8,926.99
/ea
Additional $180.00 delivery surcharge applies per item.
See details

Key Features

Drive Type
Belt
Swing
22 in
Voltage
230V AC
Motor HP
3 hp
Chuck Size
5/8 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
53UH06
Zoro #
G9188956
UPC #
00194484303938
Country of Origin
China

Dimensions

Chuck Size
5/8 in
Table Slot Size
1/2 in
Overall Depth
36 in
Quill Dia.
2 3/4 in
Column Dia.
4 1/2 in
Overall Width
23 in
Base Size
15-3/8 in x 15-3/8 in
Overall Height
76 in
Column Diameter
4 1/2 in
Maximum Spindle-to-Base Height
40 3/8 in
Maximum Overall Height
76 in
Base Length
15 3/8 in
Quill Diameter
2 3/4 in
Table Width
15 3/4 in
Table Length
16 1/2 in
Maximum Spindle-to-Table Height
31 in
Base Height
4 in

Details

Item
Floor Drill Press
Drive Type
Belt
Swing
22 in
Voltage
230V AC
Motor HP
3 hp
Number of Speeds
Variable
Capacity Steel
1 5/32 in
Spindle Speed
40 to 5000 rpm
Corded/Banded
Corded
Corded/Cordless
Corded
Capacity Cast Iron
1 1/2 in
Spindle Travel
6 1/3 in
Drilling Capacity Wood
Not Specified
Max. Spindle To Base
40 3/8 in
Phase
Single-Phase
Number of T-Slots
4
Spindle Taper
JT3
Tilting Angle
Non-Tilting
Includes
Arbor, Chuck, Coolant System, Digital Depth Gauge and Speed Readout, Guard, Light, Tapping Mode, Tool Ejector
Spindle to Table
31 in
Hz
60
Table Work Surface
19-5/8 in x 15-3/4 in
Power Down Feed Included
No
Amps AC
10 A
Application
Production Drill Press
Chuck Capacity
5/8 in
Table Shape
Rectangular
Number of Spindle Speeds
Variable
Guard Included
Yes
Spindle-to-Column Distance
11 in
Drill Press Type
Floor Stand
Number of Pieces
10
Speed Adjustment
Potention Meter
Maximum Spindle Speed
4,000 RPM
Power Source
Corded
Primary Material Application
Metal
Speed Control
Variable
Horsepower
3 hp
Minimum Spindle Speed
75 RPM
Drilling Capacity in Steel
1 5/32 in
Table Slot
Yes
Current
10 A
Speed Range
75 to 4000 RPM
Drill Press Application
Boring, Countersinking, Drilling, Reaming, Tapping
Coolant System
Yes

Description

Floor Drill Press, Primary Material Application Metal, Power Down Feed Included No, Drill Press Type Floor Stand, Drill Press Application Boring, Countersinking, Drilling, Reaming, Tapping, Speed Control Variable, Speed Adjustment Potention Meter, Swing 22 in, Spindle-to-Column Distance 11 in, Horsepower 3 hp, Voltage 230V AC, Spindle Taper JT3, Number of Speeds Variable, Chuck Size 5/8 in, Guard Included Yes, Coolant System Yes, Quill Diameter 2 3/4 in, Drilling Capacity in Steel 1 5/32 in
