  6. Floor Drill Press, Geared Head Drive, 1 1/2 to 2 hp, 230V AC V, 20 in Swing, 8 Speed

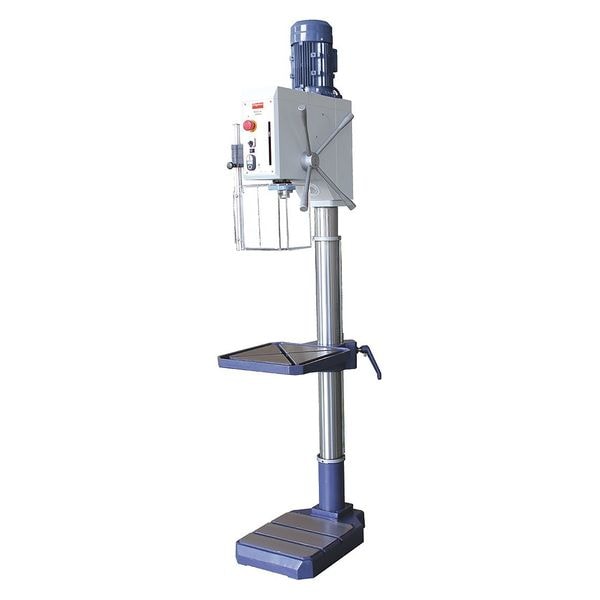

Dayton Floor Drill Press, Geared Head Drive, 1 1/2 to 2 hp, 230V AC V, 20 in Swing, 8 Speed 53UH02 - main

Floor Drill Press, Geared Head Drive, 1 1/2 to 2 hp, 230V AC V, 20 in Swing, 8 Speed

  • Mfr # 53UH02

  • Zoro # G9188971

product price:  $6,672.99
/ea
Item requires special delivery charges. A $215.00 per item surcharge will be applied.

Key Features

Drive Type
Geared Head
Swing
20 in
Voltage
230V AC
Motor HP
1 1/2 to 2 hp
Chuck Size
5/8 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
53UH02
Zoro #
G9188971
UPC #
00194484303891
Country of Origin
China

Dimensions

Chuck Size
5/8 in
Quill Dia.
2 1/2 in
Overall Depth
25 in
Overall Height
82 in
Overall Width
15 in
Table Slot Size
1/2 in
Column Dia.
3 3/8 in
Base Size
12-1/2 in x 15-3/4 in
Maximum Spindle-to-Table Height
34 3/8 in
Column Diameter
3 3/8 in
Quill Diameter
2 1/2 in
Table Width
14 7/8 in
Table Length
15 1/2 in
Base Height
4 in
Maximum Spindle-to-Base Height
47 1/4 in
Maximum Overall Height
82 in
Base Length
15 3/4 in

Details

Item
Floor Drill Press
Drive Type
Geared Head
Swing
20 in
Voltage
230V AC
Motor HP
1 1/2 to 2 hp
Number of Speeds
8
Capacity Steel
1 1/8 in
Spindle Speed
130 to 3480 rpm
Max. Spindle To Base
47 1/4 in
Phase
Three-Phase
Hz
60
Corded/Banded
Corded
Number of T-Slots
4
Includes
Chuck Guard and Halogen Light
Spindle Travel
5 in
Spindle to Table
34-3/8"
Corded/Cordless
Corded
Amps AC
10.0
Tilting Angle
Non-Tilting
Drilling Capacity Wood
Not Specified
Table Work Surface
15-1/2 in x 14-13/16 in
Power Down Feed Included
No
Capacity Cast Iron
1 1/2 in
Spindle Taper
3MT
Application
Production Drill Press
Maximum Spindle Speed
3,480 RPM
Speed Adjustment
Knob
Power Source
Corded
Table Slot
Yes
Current
10 A
Spindle-to-Column Distance
10 in
Drilling Capacity in Steel
1 1/8 in
Speed Range
90 to 3480 RPM
Table Shape
Rectangular
Number of Pieces
3
Guard Included
Yes
Drill Press Type
Floor Stand
Drill Press Application
Boring, Countersinking, Drilling, Reaming, Tapping
Minimum Spindle Speed
90 RPM
Speed Control
Fixed
Chuck Capacity
5/8 in
Horsepower
1 1/2 to 2 hp
Primary Material Application
Metal
Coolant System
No
Number of Spindle Speeds
8

Description

Floor Drill Press, Primary Material Application Metal, Power Down Feed Included No, Drill Press Type Floor Stand, Drill Press Application Boring, Countersinking, Drilling, Reaming, Tapping, Speed Control Fixed, Speed Adjustment Knob, Swing 20 in, Spindle-to-Column Distance 10 in, Horsepower 1 1/2 to 2 hp, Voltage 230V AC, Spindle Taper 3MT, Number of Speeds 8, Chuck Size 5/8 in, Guard Included Yes, Coolant System No, Quill Diameter 2 1/2 in, Drilling Capacity in Steel 1 1/8 in
