Shop DAYTON

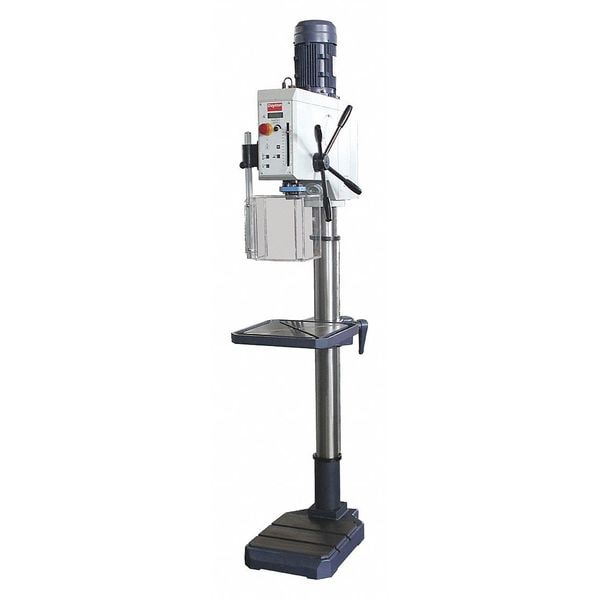

Floor Drill Press, Geared Head Drive, 2 hp, 460V AC V, 20 in Swing, Variable Speed

  • Mfr # 467K98

  • Zoro # G7127053

product price:  $8,816.99
/ea
Additional $180.00 delivery surcharge applies per item.
See details

Key Features

Drive Type
Geared Head
Swing
20 in
Voltage
460V AC
Motor HP
2 hp
Chuck Size
Not Included
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
467K98
Zoro #
G7127053
UPC #
00194484265618
Country of Origin
China

Dimensions

Chuck Size
Not Included
Overall Height
81 in
Overall Depth
25 in
Column Dia.
3 5/8 in
Overall Width
15 in
Quill Dia.
2 7/16 in
Base Size
13-3/4 in x 12-5/8 in
Table Slot Size
14 mm
Base Length
12 5/8 in
Maximum Spindle-to-Table Height
34 1/2 in
Table Length
15 in
Quill Diameter
2 7/16 in
Maximum Spindle-to-Base Height
47 in
Table Width
15 in
Column Diameter
3 5/8 in
Maximum Overall Height
81 in
Base Height
4 in

Details

Item
Floor Drill Press
Drive Type
Geared Head
Swing
20 in
Voltage
460V AC
Motor HP
2 hp
Number of Speeds
Variable
Capacity Steel
1 in
Spindle Speed
54 to 3800 rpm
Capacity Cast Iron
1 1/8 in
Tilting Angle
Non-Tilting
Amps AC
3.2 A
Corded/Cordless
Corded
Number of T-Slots
4
Includes
Chuck Guard with Limit Switch, Digital Speed Display, Halogen Work Light
Hz
60
Table Work Surface
15-1/2 in x 14-13/16 in
Spindle to Table
34 1/2 in
Max. Spindle To Base
47 in
Phase
Three-Phase
Power Down Feed Included
No
Drilling Capacity Wood
Not Specified
Spindle Taper
3MT
Corded/Banded
Corded
Spindle Travel
5 in
Application
Production Drill Press
Horsepower
2 hp
Table Slot
Yes
Primary Material Application
Metal
Drill Press Type
Floor Stand
Number of Spindle Speeds
Variable
Speed Control
Variable
Drilling Capacity in Steel
1 in
Maximum Spindle Speed
3,200 RPM
Power Source
Corded
Table Shape
Rectangular
Number of Pieces
4
Drill Press Application
Boring, Countersinking, Drilling, Reaming, Tapping
Current
2.95 A
Coolant System
No
Minimum Spindle Speed
45 RPM
Guard Included
Yes
Spindle-to-Column Distance
10 in
Speed Range
45 to 3200 RPM

Description

Floor Drill Press, Primary Material Application Metal, Power Down Feed Included No, Drill Press Type Floor Stand, Drill Press Application Boring, Countersinking, Drilling, Reaming, Tapping, Speed Control Variable, Swing 20 in, Spindle-to-Column Distance 10 in, Horsepower 2 hp, Voltage 460V AC, Spindle Taper 3MT, Number of Speeds Variable, Guard Included Yes, Coolant System No, Quill Diameter 2 7/16 in, Drilling Capacity in Steel 1 in
