  6. Floor Drill Press, Geared Head Drive, 4 to 5 hp, 230V AC V, 32 in Swing, 16 Speed

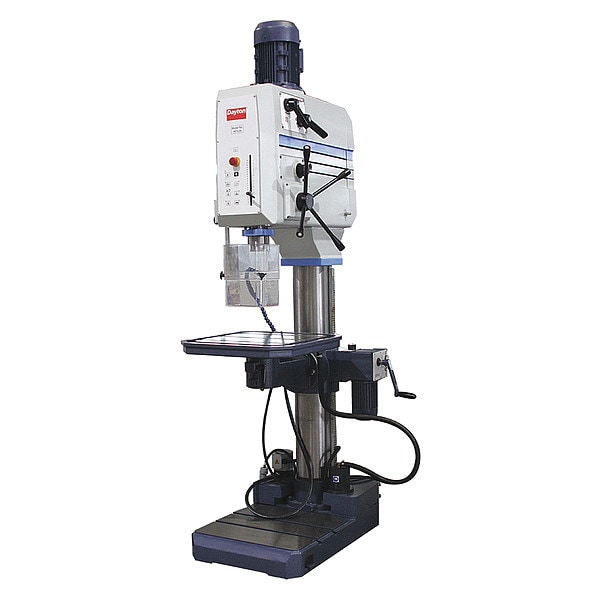

Dayton Floor Drill Press, Geared Head Drive, 4 to 5 hp, 230V AC V, 32 in Swing, 16 Speed 467L04 - main

Floor Drill Press, Geared Head Drive, 4 to 5 hp, 230V AC V, 32 in Swing, 16 Speed

  • Mfr # 467L04

  • Zoro # G7135602

product price:  $21,100.99
/ea
Item requires special delivery charges. A $630.00 per item surcharge will be applied.

Key Features

Drive Type
Geared Head
Swing
32 in
Voltage
230V AC
Motor HP
4 to 5 hp
Chuck Size
Not Included
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
467L04
Zoro #
G7135602
UPC #
00194484265663
Country of Origin
China

Dimensions

Chuck Size
Not Included
Quill Dia.
3 29/64 in
Table Slot Size
18 mm
Column Dia.
7 7/8 in
Base Size
35-3/4 in x 23-5/8 in
Overall Width
29 in
Overall Height
92 1/2 in
Overall Depth
40 5/16 in
Base Height
8 in
Maximum Overall Height
98 1/2 in
Base Length
23 5/8 in
Maximum Spindle-to-Table Height
28 1/2 in
Table Length
23 1/2 in
Quill Diameter
3 29/64 in
Maximum Spindle-to-Base Height
51 in
Table Width
23 1/2 in
Column Diameter
7 7/8 in

Details

Item
Floor Drill Press
Drive Type
Geared Head
Swing
32 in
Voltage
230V AC
Motor HP
4 to 5 hp
Number of Speeds
16
Capacity Steel
2 in
Spindle Speed
54 to 2400 rpm
Table Work Surface
25-1/2 in x 25-1/2 in
Amps AC
16.0
Max. Spindle To Base
51 in
Number of T-Slots
3
Capacity Cast Iron
2 5/32 in
Phase
Three-Phase
Includes
5/8 in JT3 Chuck Key, Chuck Guard with Limit Switch, Coolant System, Motor for Raising and Lowering Table, MT4/JT3 Arbor, Reversing Foot Switch, Reversing Switch, Threading Mechanism
Spindle Taper
4MT
Corded/Banded
Corded
Corded/Cordless
Corded
Spindle Travel
7 7/8 in
Spindle to Table
28 1/2 in
Power Down Feed Included
Yes
Tilting Angle
90 Degrees
Hz
60
Drilling Capacity Wood
Not Specified
Application
Production Drill Press
Table Tilt
90 Degrees
Current
10/12 A
Primary Material Application
Metal
Spindle-to-Column Distance
15.9 in
Horsepower
3 to 3.8 hp
Maximum Spindle Speed
2,400 RPM
Coolant System
Yes
Number of Spindle Speeds
16
Speed Range
54 to 2,400 RPM
Table Shape
Square
Speed Control
Fixed
Minimum Spindle Speed
54 RPM
Reversible
Yes
Drilling Capacity in Steel
2 in
Table Slot
Yes
Drill Press Application
Boring, Countersinking, Drilling, Reaming, Tapping
Number of Pieces
5
Speed Adjustment
Knob
Guard Included
Yes
Drill Press Type
Floor Stand
Power Source
Corded

Description

Floor Drill Press, Primary Material Application Metal, Power Down Feed Included Yes, Drill Press Type Floor Stand, Drill Press Application Boring, Countersinking, Drilling, Reaming, Tapping, Speed Control Fixed, Speed Adjustment Knob, Swing 32 in, Spindle-to-Column Distance 15.9 in, Horsepower 3 to 3.8 hp, Voltage 230V AC, Spindle Taper 4MT, Number of Speeds 16, Guard Included Yes, Coolant System Yes, Quill Diameter 3 29/64 in, Drilling Capacity in Steel 2 in
