Shop DAYTON

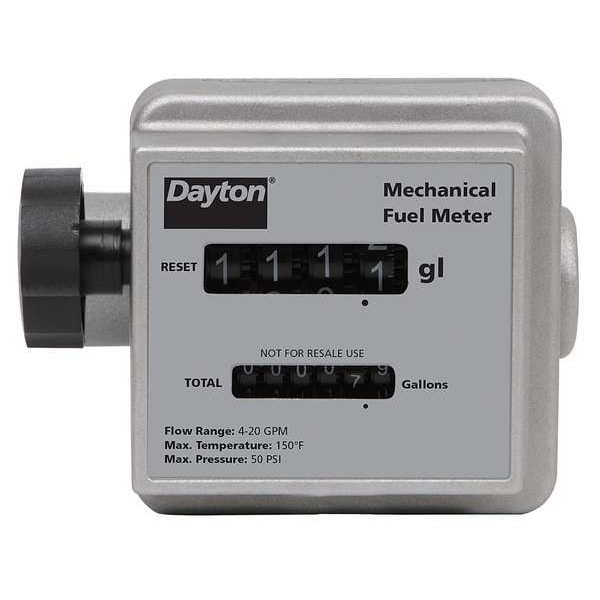

Flowmeter, Mechanical, 3/4 In, 4 to 20 gpm

  • Mfr # 40M286

  • Zoro # G5838567

product price:
$
274.99
/ea
Free Shipping & Returns

Key Features

Housing Material
Aluminum
Type
Mechanical
For Pipe Size
3/4 in
Connection Size
3/4 in
Flow Material
Bio Diesel, Diesel, Gasoline, Low to Medium Viscosity Oils
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
40M286
Zoro #
G5838567
UPC #
190735297674
Country of Origin
India

Dimensions

For Pipe Size
3/4 in
Connection Size
3/4 in
Height (In.)
4-1/8
Width (In.)
5-5/16"
Width
5 5/16 in
Length
6 in
Length (In.)
6"
Depth
6 in
Connection Size (In.)
3/4 FNPT
Height
4 1/8 in
Manufacturers Warranty Length
1 yr
Manufacturer Warranty Length
1 yr
Overall Length
6 in
Overall Height
4.1 in
Overall Width
5.3 in
Wire Rope Length
6 in

Details

Item
Mechanical Flowmeter
Housing Material
Aluminum
Type
Mechanical
Flow Material
Bio Diesel, Diesel, Gasoline, Low to Medium Viscosity Oils
Connection Type
FNPT
Max. Pressure
50 psi
Wetted Materials
Aluminum, Poly Butylene terephathalate (PBT) Stainless Steel, Viton
Max. Viscosity
9,088 SUS
Flow Range
4 to 20 gpm
Fluid Temp. Range
-10 Degrees to 150 Degrees F
Thread
3/4 in FNPT
Flow Range (LPM)
15 to 75
Master Totalizer
99,999.9 gal
O-Ring
Viton
Chamber Material
Aluminum
Flow Range (GPM)
4 to 20
Temp.
150 Degrees F
Display
Mechanical
Resetable Cumulative Totalizer
999.9 gal
Max. Viscosity (SSU)
9088
Max. Temp. (F)
150 Degrees F
Max. Pressure (PSI)
50
GPM Max.
20 gpm
Application
For use with Gasoline, Bio Diesel, Low to Medium Viscosity Oils
Pressure Drop - 100% Flow (PSI)
3.0 psi
Accuracy (%)
+/-1
Seal Material
Viton
Display Type
Mechanical
Product Type
Mechanical Flowmeter
Accuracy
+/-1%
Compatible Flow Material
Diesel, Gasoline, Oils
Operating Pressure - Maximum
50 psi
Flow Rate - Maximum
20 gpm
Media Temperature - Maximum
150 Degrees F
Flow Rate - Minimum
4 gpm
Media Temperature - Minimum
-10 Degrees F
Viscosity - Maximum
9,088 SUS
O-Ring Material
Viton
Wetted Material
Aluminum, PBT, Stainless Steel, Viton

Description

Mechanical Flowmeter, Product Type Mechanical Flowmeter, Accuracy +/-1 Percent, Connection Size 3/4 in, Connection Type FNPT, Compatible Flow Material Diesel, Gasoline, Oils, Media Temperature - Maximum 150 Degrees F, Media Temperature - Minimum -10 Degrees F, Viscosity - Maximum 9,088 SUS, Housing Material Aluminum, O-Ring Material Viton, Seal Material Viton, Wetted Material Aluminum, PBT, Stainless Steel, Viton, Display Type Mechanical, Flow Rate - Maximum 20 gpm, Flow Rate - Minimum 4 gpm

Restrictions

WARNING: This product can expose you to chemicals including Lead, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
