  9. Fuel Transfer Pump, 110V AC, 10.5 gpm Max. Flow Rate , 7/16 HP, Acetal Resin, POM, 3/4 in HB Inlet
Shop All Fuel Transfer Pumps
Dayton

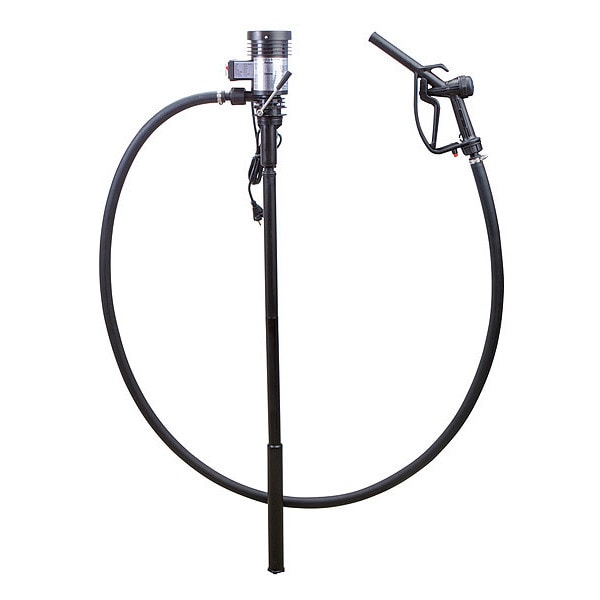

Fuel Transfer Pump, 110V AC, 10.5 gpm Max. Flow Rate , 7/16 HP, Acetal Resin, POM, 3/4 in HB Inlet

product price: $313.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Voltage 110V AC
  • Application Industrial; Automotive; Heating and Marine
  • HP 7/16
  • Housing Material Acetal Resin, POM
  • GPM 10.5 gpm
See all product information

Product Information

Dimensions

Inlet Size 3/4 in HB
Hose Length 8 ft
Outlet Size 3/4 in HB
Overall Width 13 3/8 in
Overall Length 5 3/4 in
Manufacturers Warranty Length 1 yr
Suction Tube Length 39 3/8 in
Overall Height 4 in
Power Cord Length 6 1/2 ft
Cord Length 6 1/2 ft

Details

Voltage 110V AC
Application Industrial; Automotive; Heating and Marine
HP 7/16
Housing Material Acetal Resin, POM
GPM 10.5 gpm
Seal Material Nitrile, PTFE, Viton
RPM 9500
Pump Design Centrifugal
Self-Priming No
Max. Viscosity 530 SUS
Item Fuel Transfer Pump
Metered No
Nozzle Type Manual
Features Built-In Anti Siphoning System
Amps AC 2.9
Duty Cycle Continuous
Bypass Valve No
Nozzle Material Polypropylene
Includes Discharge Hose, Hose Clamp, Nozzle, Pump, Suction Tube
Compatible Fluids Diesel & Oil
Bearing Type Ball
Motor RPM 9,500 RPM
Housing Material - Pumps Acetal Resin, Polyoxymethylene
Rated Voltage 110V AC
Max. Flow Rate 10.5 gpm
Discharge Connection Type Hose Barb
Motor HP 7/16 hp
Includes Nozzle Yes
Mount Type Bung
Nozzle Operation Manual
For Media Type Diesel, Oil
Includes Discharge Hose Yes
Full Load Amps 2.9 A
Includes Suction Tube Yes
Compatible Chemicals Diesel, Oil

Description

Fuel Transfer Pump, Rated Voltage 110V AC, Hose Length 8 ft, Suction Tube Length 39 3/8 in, Cord Length 6 1/2 ft, Nozzle Operation Manual, Includes Discharge Hose Yes, Self-Priming No, Compatible Chemicals Diesel, Oil, Discharge Connection Type Hose Barb, Features Built-In Anti Siphoning System, Includes Nozzle Yes, Nozzle Material Polypropylene

Restrictions

  • WARNING: This product can expose you to chemicals including Lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Hazardous material
