Shop FILL-RITE

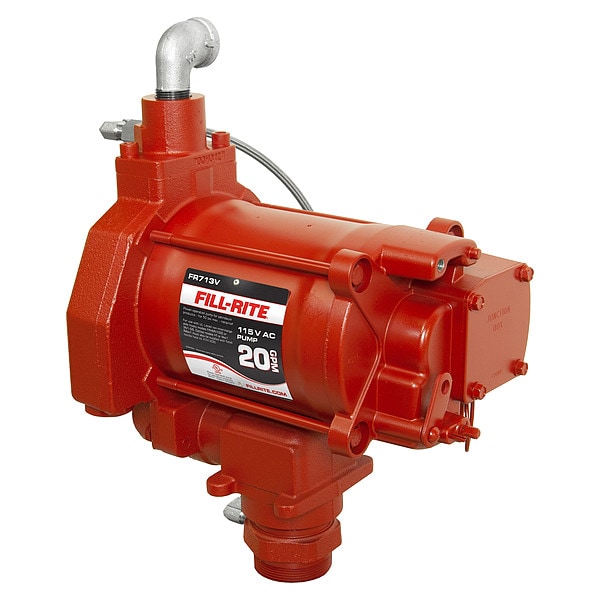

Fuel Transfer Pump, 115V AC, 18 gpm Max. Flow Rate , 1/3 HP, Cast Iron, 1-1/4 in Inlet

  • Mfr # FR713V

  • Zoro # G4315827

product price:  $754.99
/ea
Free Shipping & Returns

Key Features

Voltage
115V AC
Application
Fuel Transfer Remote Pump Designed For Gasoline, Diesel, B20, E-15 and Kerosene
HP
1/3
Housing Material
Cast Iron
GPM
18 gpm
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
FR713V
Zoro #
G4315827
UPC #
089404006450
Country of Origin
United States

Dimensions

Inlet Size
1-1/4 in
Manufacturers Warranty Length
2 yr
Outlet Size
3/4 in NPT
Overall Length
15 in
Pump Mount Size
2 in
Overall Width
15 in
Overall Height
11 1/4 in
For Container Size
35 gal, 55 gal, 275 gal, 500 gal, 5,000 gal
Adapter Connection Diameter
2 in

Details

Voltage
115V AC
Application
Fuel Transfer Remote Pump Designed For Gasoline, Diesel, B20, E-15 and Kerosene
HP
1/3
Housing Material
Cast Iron
GPM
18 gpm
Seal Material
Carbon
RPM
1725
Pump Design
Rotary Vane
Self-Priming
Yes
Seal Type
Mechanical
Max. Viscosity
34.3 SUS
Item
Electric Drum Pump
Duty Cycle
30 Minutes On/30 Minutes Off
For Use With
Bio-Diesel up to B20 E15. Kerosene, Diesel, Gasoline
Amps AC
5.5 A
Bypass Valve
Yes
Transfer Pump Application
Agriculture, Construction, Farming
Features
Iron Rotor with Carbon Rotary Vanes, Pressure Relief Valve, Self Priming
Metered
No
Standards
cULus
Bearing Type
Sealed Ball
Compatible Fluids
Biodiesel up to B20, Diesel, E15, Gasoline, Kerosene
Pressure Range
0 psi to 16 psi
Includes
Anti-Siphon Kit, Installation Components
Motor Type
Permanent Magnet
Agency Compliance
cULus
Housing Material - Pumps
Cast Iron
Motor RPM
1,725 RPM
Pump Connection Type
NPT
Discharge Connection Type
FNPT
Power Source
Corded Electric
Includes Nozzle
No
Rated Voltage
115 V AC
Compatible Chemicals
Biodiesel, Diesel, E15, Gasoline, Kerosene
Max. Flow Rate
20 gpm
Full Load Amps
5.5 A
For Media Type
Biodiesel, Diesel, E15, Gasoline, Kerosene
Motor HP
1/3 hp
Max. Outlet Pressure
23 psi
Max. Head Pressure
23 psi
Mount Type
Bung
Includes Discharge Hose
No
Motor Speed
1,725 RPM
Full Load Current
5.5 A
Adapter Connection Standard
MNPT
Maximum Head Pressure
23 psi
Maximum Viscosity
34.3 SUS
Motor Horsepower
1/3 hp
Static Protection
No Grounding Line Included
Includes Spout
No
Minimum Fluid Temperature
-40 Degrees F
Container Type Included
Drum
Includes Bung Adapter
Yes
Pump Connection ID
1 in
Includes Follower Plate
No Follower Plate Included
Variable Speed
No
Frequency
60 hz
For Container Type
Tank
Maximum Outlet Pressure
23 psi
Pump Connection OD
1 3/8 in
Hazardous Location Class
Class I/Division 1
Pump Technology
Vane
Includes Suction Tube
No
Wetted Material
Buna-N/Ceramic/Cork/Fluorocarbon/Stainless Steel/Steel/Thermoset
Maximum Head
53 ft
Container Cover Type Included
No Cover Included
Phase
Single
Chemical Compatibility
Biodiesel, Diesel, E15, Gasoline, Kerosene
Maximum Fluid Temperature
150 Degrees F
Maximum Flow Rate
20 gpm
Motor Enclosure Design
Totally Enclosed Non-Ventilated
Housing Finish
Baked Enamel
Meter Type Included
No Meter Included

Description

Electric Drum Pump, Hose Inside Dia. Not Applicable, Max. Head Pressure 23 psi, Max. Outlet Pressure 23 psi, For Use With Bio-Diesel up to B20 E15. Kerosene, Diesel, Gasoline, Rated Voltage 115 V AC, Plug Type Not Applicable, Pump Connection ID 1 in, Suction Tube OD Not Applicable, Hose Length Not Applicable, Suction Tube Length Not Applicable, Includes Bung Adapter Yes, Nozzle Operation Not Applicable, Power Source Corded Electric, Variable Speed No, Includes Discharge Hose No, Self-Priming Yes
