  13. Gas Unit Heater, NG, 200,000, 3,200 cfm, Direct, Propeller, 1/2 in

This item is Discontinued.

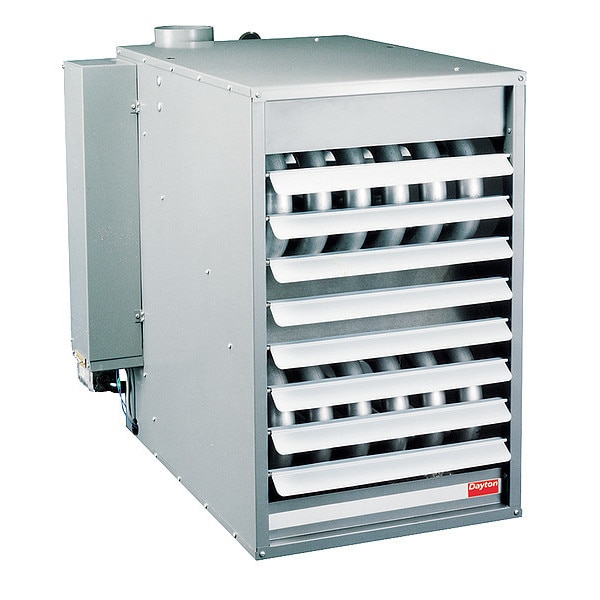

Dayton Gas Unit Heater, NG, 200,000, 3,200 cfm, Direct, Propeller, 1/2 in 4LX60

Gas Unit Heater, NG, 200,000, 3,200 cfm, Direct, Propeller, 1/2 in (Discontinued)

  • Mfr # 4LX60
  • Zoro # G0659111
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
4LX60
Zoro #
G0659111
UPC #
190735329672
Country of Origin
United States

Dimensions

Height
33 3/4 in
Width
37 1/4 in
Flue Dia.
5 in
Indoor Air Discharge Width
30 3/4 in
Manufacturers Warranty Length
1 yr All Components, Additional 9 yr on Heat Exchanger, Flue Collector and Burners
Depth
43 1/2 in
Indoor Air Discharge Height
24 1/2 in
Burner Air Inlet Size
5 in
Installation Height
8 to 20 ft
Overall Height
33 3/4 in
Overall Width
37 1/4 in
Flue Diameter
5 in
Gas Connection Size
1/2 in
Overall Depth
43 1/2 in
Overall Dimensions - H x W x D
33 3/4 in x 37 1/4 in x 43 1/2 in

Details

BtuH Input
200,000
Gas Type
NG
Combustion Type
Field Convertible
BtuH Output
162,000
Gas Connection
1/2 in
Fan Type
Propeller
Air Flow
3,200 cfm
Item
Gas Wall and Ceiling Unit Heater
Full Load Amps
8.0 A
Standards
Certified in accordance with both Categories I and III venting requirements
O.C. Mounting
30 5/8 in
Heater Voltage
120 V AC
Drive Type
Direct
Primary Heat Exchanger Material
20 ga Aluminized Steel
Air Temp. Rise
47 Degrees F
Hz
60
Ignition System
Direct Spark
Vent
Power
Fuel Type
Natural Gas
Profile Type
Standard
Heating Capacity Input
200,000 BtuH
Fuel Type, Combustion Type
Natural Gas, Field Convertible
Air Temperature Rise
47 Degrees F
Vent Type
Power
Heat Exchanger Gauge
20 ga
Product Type
Standard-Profile Unit Heater
Maximum Amperage
8 A
Heat Exchanger Material
Aluminized Steel
Heating Capacity Output
162,000 BtuH
Ignition Type
Direct Spark
Gas Connection Type
NPT, Male
Off Center Mounting
30 5/8 in
Heat Output
162,000 BtuH
Frequency
60 Hz
Air Flow Direction
Horizontal
Heating Method
Fan Forced
Mounting Location
Ceiling

Description

Gas Wall and Ceiling Unit Heater, Gas Type NG, Combustion Type Field Convertible, Fan Type Propeller, BtuH Input 200,000, BtuH Output 162,000, 3,200 cfm Air Flow, 8.0 A Full Load Amps, Gas Connection 1/2 in, Flue Dia. 5 in, O.C. Mounting 30 5/8 in, Height 33 3/4 in, Width 37 1/4 in, Depth 43 1/2 in, Indoor Air Discharge Height 24 1/2 in, Indoor Air Discharge Width 30 3/4 in, Heater Voltage 120 V AC, 60 Hz, Air Temp. Rise 47 Degrees F, Installation Height 8 to 20 ft, Ignition System Direct Spark
