Shop DAYTON

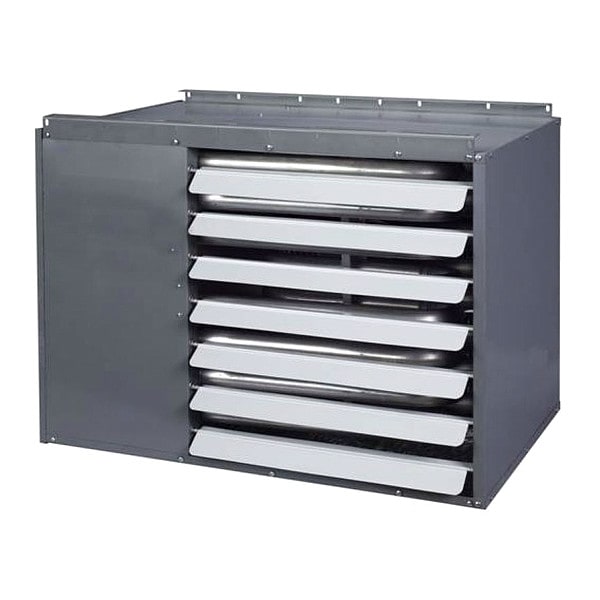

Gas Wall and Ceiling Unit Heater, NG/LP, 90,000, 1,100 cfm, Direct, Propeller, 1/2 in

  • Mfr # 2RYV2A

  • Zoro # G0656783

product price:
$
1,623.99
/ea
Free Shipping & Returns

Key Features

BtuH Input
90,000
Gas Type
NG/LP
Combustion Type
Field Convertible
BtuH Output
72,900
Gas Connection
1/2 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
2RYV2A
Zoro #
G0656783
UPC #
190735231081
Country of Origin
United States

Dimensions

Height
22 5/8 in
Installation Height
8 ft
Burner Air Inlet Size
5 in
Indoor Air Discharge Height
22 5/8 in
Manufacturers Warranty Length
10 yr on Heat Exchanger, Burners, And Flue Collector. All Other Parts are 1 yr
Indoor Air Discharge Width
30 in
Depth
26 3/8 in
Width
30 in
Flue Dia.
4 in
Overall Height
22 5/8 in
Overall Width
30 in
Mounting Height
8 ft to 10 ft
Flue Diameter
5 in
Fan Diameter
16 in
Mounting Hole Diameter
3/4 in
Gas Connection Size
1/2 in
Overall Dimensions - H x W x D
22 5/8 in x 30 in x 26 3/8 in
Overall Depth
26 3/8 in

Details

BtuH Input
90,000
Gas Type
NG/LP
Combustion Type
Field Convertible
BtuH Output
72,900
Gas Connection
1/2 in
Fan Type
Propeller
Air Flow
1,100 cfm
Item
Gas Wall and Ceiling Unit Heater
Full Load Amps
6.4 A
Hz
60
Primary Heat Exchanger Material
20 ga Aluminized Steel
Air Temp. Rise
60 Degrees F
Drive Type
Direct
Vent
Power
O.C. Mounting
Adjustable
Heater Voltage
115 V AC
Standards
ETL, ETLc Certified
Ignition System
Direct Spark
Includes
LP Gas Conversion Kit
Features
Power Venting Allows Horizontal Venting Through Side Walls or Vertical Venting, Tubular Heat Exchanger And Single Burner Design with Gas Conversion Kit Included
Ignition Type
Direct Spark
Maximum Amperage
6.4 A
Mounting Location
Ceiling
Thermal Efficiency Rating
82%
Heat Exchanger Material
Aluminized Steel
Fuel Type
Natural Gas, Propane
Profile Type
Low
Product Type
Low-Profile Unit Heater
Air Flow Direction
Horizontal
Thermostat Included
No
Frequency
60 Hz
Fuel Type, Combustion Type
Natural Gas/Propane, Field Convertible
Heating Capacity Output
73,800 BtuH
Phase
1
Air Temperature Rise
60 Degrees F
Heat Output
73,800 BtuH
Heating Method
Fan Forced
Heating Capacity Input
90,000 BtuH
Vent Type
Power
Motor Type
SP
Gas Connection Type
NPT, Male
Motor Speed
1,050 RPM
Heat Exchanger Gauge
20 ga

Description

Gas Wall and Ceiling Unit Heater, Gas Type NG/LP, Combustion Type Field Convertible, Fan Type Propeller, BtuH Input 90,000, BtuH Output 72,900, 1,100 cfm Air Flow, 6.4 A Full Load Amps, Gas Connection 1/2 in, Flue Dia. 4 in, O.C. Mounting Adjustable, Height 22 5/8 in, Width 30 in, Depth 26 3/8 in, Indoor Air Discharge Height 22 5/8 in, Indoor Air Discharge Width 30 in, Heater Voltage 115 V AC, 60 Hz, Air Temp. Rise 60 Degrees F, Installation Height 8 ft, Ignition System Direct Spark
