Dayton

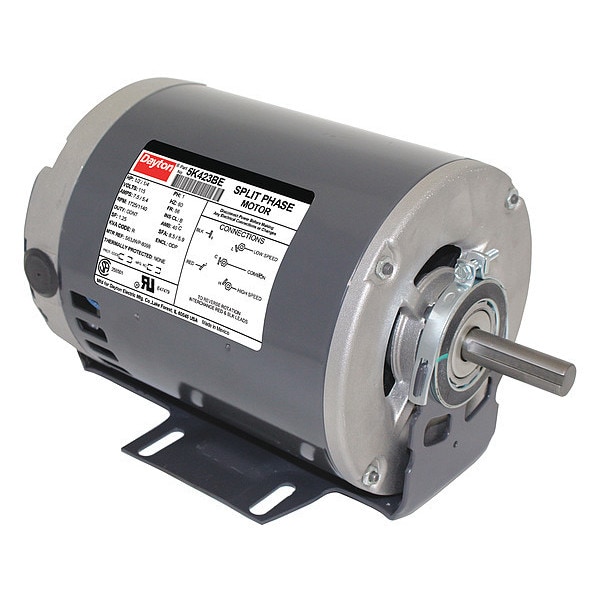

GP Mtr, Split Ph, ODP, 1/2 HP, 1725 rpm, 56

product price: $331.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Phase Single
  • Length Less Shaft 8 15/16 in
  • Motor Application General Application
  • Frame Material Rolled steel
  • Nameplate RPM 1,725/1,140
See all product information

Product Information

Dimensions

Length Less Shaft 8 15/16 in
Shaft Dia. 5/8 in
Overall Length 10 13/16 in
Shaft Length 1 7/8 in
Manufacturers Warranty Length 1 yr

Details

Phase Single
Motor Application General Application
Frame Material Rolled steel
Nameplate RPM 1,725/1,140
Voltage 115V AC
Motor Bearings Ball
Motor Enclosure Design Open Dripproof
Motor Mounting Type Cradle Base
Hz 60 Hz
Nominal Efficiency 63.9 %
RPM Group 1701-1800
Motor Service Factor 1.25
Frame 56
Motor Thermal Protection None
No. of Speeds 2
Motor Frame Material Rolled Steel
Footnotes 45
Full Load Amps 7.5/5.4 A
Ins. Class B
Motor Design Split-Phase
Max. Ambient Temp. 104 Degrees F
RPM Range 1,701-1,800
Voltage Compatibility 115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 120V AC
Motor Shaft Design Keyed
Standards CSA (156060), UL (E47479)
Motor Shaft Rotation CW/CCW
HP 1/2, 1/4
Duty Continuous
Item General Purpose Motor
Motor Efficiency Group Standard Efficient
Duty Cycle Continuous

Description

General Purpose Motor, Single Phase, Motor Design Split-Phase, 1/2, 1/4 HP, Nameplate RPM 1,725/1,140, No. of Speeds 2, Voltage 115V AC, Full Load Amps 7.5/5.4 A, 56 Frame, Hz 60 Hz, Motor Service Factor 1.25, Max. Ambient Temp. 104 Degrees F, Motor Thermal Protection None, Duty Cycle Continuous, Ins. Class B, Motor Enclosure Design Open Dripproof, Motor Shaft Rotation CW/CCW, Motor Mounting Type Cradle Base, Motor Shaft Design Keyed, Motor Frame Material Rolled Steel
