Shop DAYTON

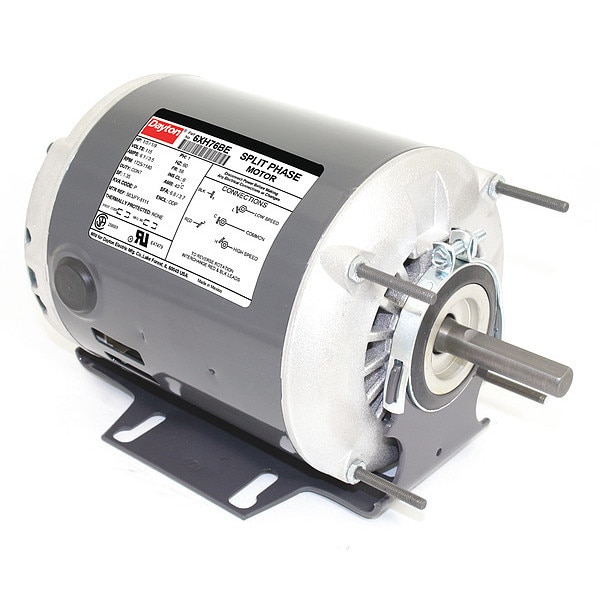

GP Mtr, Split Ph, ODP, 1/3 HP, 1725 rpm, 56

  • Mfr # 6XH76

  • Zoro # G0972711

product price:  $378.99
/ea
Free Shipping & Returns

Key Features

HP
1/3 hp, 1/9 hp
Shaft Dia.
5/8 in
Overall Length
10 5/16 in
No. of Speeds
2
Max. Ambient Temp.
40 Degrees C
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
6XH76
Zoro #
G0972711
UPC #
190735373224
Country of Origin
Mexico

Dimensions

Shaft Dia.
5/8 in
Overall Length
10 5/16 in
Shaft Length
1 7/8 in
Manufacturers Warranty Length
1 yr
Length Less Shaft
8 7/16 in
Shaft Diameter
5/8 in
Frame Size
56

Details

HP
1/3 hp, 1/9 hp
No. of Speeds
2
Max. Ambient Temp.
40 Degrees C
Motor Frame Material
Steel
Motor Mounting Type
Cradle Base
Motor Thermal Protection
None
Duty
Continuous
Motor Enclosure Design
Open Drip Proof
Phase
Single
Motor Bearings
Ball
Motor Application
General Purpose
Standards
CSA (156060), UL (E47479)
Motor Design
Split-Phase
Frame
56
Motor Efficiency Group
Standard Efficient
Motor Service Factor
1.35
Ins. Class
B
Hz
60 Hz
Voltage Compatibility
115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 120V AC
Nominal Efficiency
59 %
Item
General Purpose Motor
Voltage
115V AC
Motor Shaft Rotation
CW/CCW
Full Load Amps
6.1/3.5 A
Frame Material
Steel
Nameplate RPM
1,725/1,140 RPM
Motor Shaft Design
Keyed
RPM Range
1,701-1,800
Footnotes
41,45
RPM Group
1701-1800
Duty Cycle
Continuous
Shaft Design
Keyed
Nameplate Service Factor @ 60 Hz
1.35
Frequency
60 Hz
Product Type
General Purpose Motor
Insulation Class
B
Ambient Temperature - Maximum
40 Degrees C
Manufacturers Warranty
1 yr
Bearing Type
Ball
Full Load Current @ 60 Hz
6.1/3.5 A
Motor Enclosure Type
Open Drip Proof
Application
General Purpose
Efficiency Rating
Standard Efficiency (IE1)

Description

General Purpose Motor, Single Phase, Motor Design Split-Phase, 1/3 hp, 1/9 hp HP, Nameplate RPM 1,725/1,140 RPM, No. of Speeds 2, Voltage 115V AC, Full Load Amps 6.1/3.5 A, 56 Frame, Hz 60 Hz, Motor Service Factor 1.35, Max. Ambient Temp. 40 Degrees C, Motor Thermal Protection None, Duty Cycle Continuous, Ins. Class B, Motor Enclosure Design Open Drip Proof, Motor Shaft Rotation CW/CCW, Motor Mounting Type Cradle Base, Motor Shaft Design Keyed, Motor Frame Material Steel
