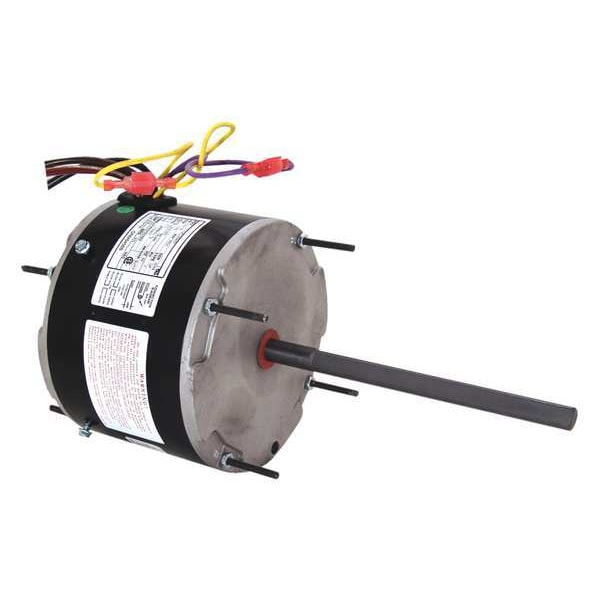

Condenser Fan Motor, 1/3 hp
Mfr # ORM5488B
Zoro # G0728655
product price:Â $166.99
/ea
Free Shipping & Returns
Key Features
Motor Design
Permanent Split Capacitor
Phase
Single
HP
1/3 to 1/8
RPM Range
0-1,000
No. of Speeds
1
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
MFR #
ORM5488B
Zoro #
G0728655
UPC #
-
Country of Origin
India
Dimensions
Body Dia.
5 5/8 in
Overall Length
12 7/16 in
Shaft Length
6 3/4 in
Length Less Shaft
5 3/4 in
Lead Length
48 in
Shaft Dia.
1/2 in
Stud Size
#8-32
Mounting Stud Length
1 3/16 in
Bolt Circle Dia.
5 1/8 in
Bolt Circle Diameter
5 1/8 in
Frame Size
48
Body Diameter
5.6 in
Shaft Diameter
1/2 in
Mounting Stud Thread Size
#8-32
Description
Condenser Fan Motor, Single Phase, Motor Design Permanent Split Capacitor, 1/3 hp HP, Nameplate RPM 825 RPM, No. of Speeds 1, Voltage 208-230V AC, 2.1 A Full Load Amps, 48 Frame, Output Watts 250 W, 60 Hz Hz, Replacement For Mfr. No. 3459, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Max. Ambient Temp. 70 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Air-Over
