Dayton

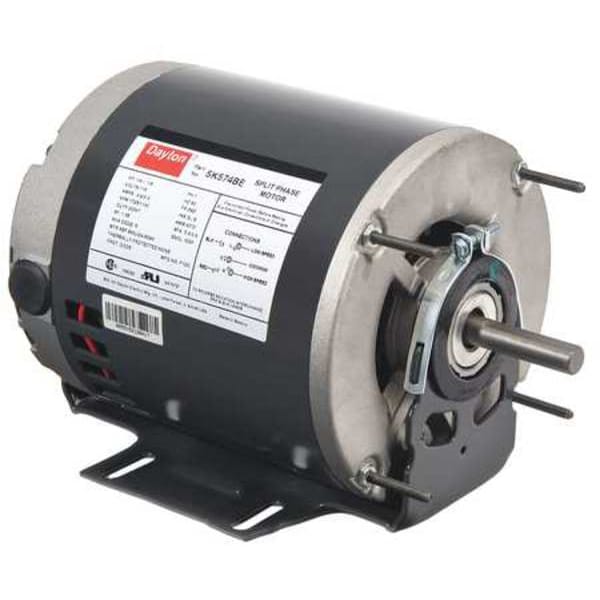

GP Mtr, Split Ph, ODP, 1/4 HP, 1725 rpm, 56Z

product price: $240.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • HP 1/4, 1/8
  • Motor Service Factor 1.35
  • Motor Shaft Design Keyed
  • Motor Shaft Rotation CW/CCW
  • Duty Continuous
See all product information

Product Information

Dimensions

Overall Length 10 5/16 in
Shaft Length 1 7/8 in
Length Less Shaft 8 3/8 in
Shaft Dia. 1/2 in
Manufacturers Warranty Length 1 yr

Details

HP 1/4, 1/8
Motor Service Factor 1.35
Motor Shaft Design Keyed
Motor Shaft Rotation CW/CCW
Duty Continuous
Motor Design Split-Phase
Footnotes 31,45,50
Voltage 115V AC
Standards CSA (156060), UL (E47479)
Full Load Amps 4.9/3.3 A
RPM Group 1701-1800
RPM Range 1,701-1,800
Motor Application General Application
Ins. Class B
Nominal Efficiency 53 %
No. of Speeds 2
Motor Frame Material Rolled Steel
Hz 60 Hz
Max. Ambient Temp. 104 Degrees F
Motor Bearings Ball
Motor Thermal Protection None
Nameplate RPM 1,725/1,140
Item General Purpose Motor
Frame 56Z
Frame Material Rolled steel
Motor Efficiency Group Standard Efficient
Voltage Compatibility 115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 120V AC
Motor Enclosure Design Open Dripproof
Motor Mounting Type Cradle Base
Phase Single
Duty Cycle Continuous

Description

General Purpose Motor, Single Phase, Motor Design Split-Phase, 1/4, 1/8 HP, Nameplate RPM 1,725/1,140, No. of Speeds 2, Voltage 115V AC, Full Load Amps 4.9/3.3 A, 56Z Frame, Hz 60 Hz, Motor Service Factor 1.35, Max. Ambient Temp. 104 Degrees F, Motor Thermal Protection None, Duty Cycle Continuous, Ins. Class B, Motor Enclosure Design Open Dripproof, Motor Shaft Rotation CW/CCW, Motor Mounting Type Cradle Base, Motor Shaft Design Keyed, Motor Frame Material Rolled Steel
