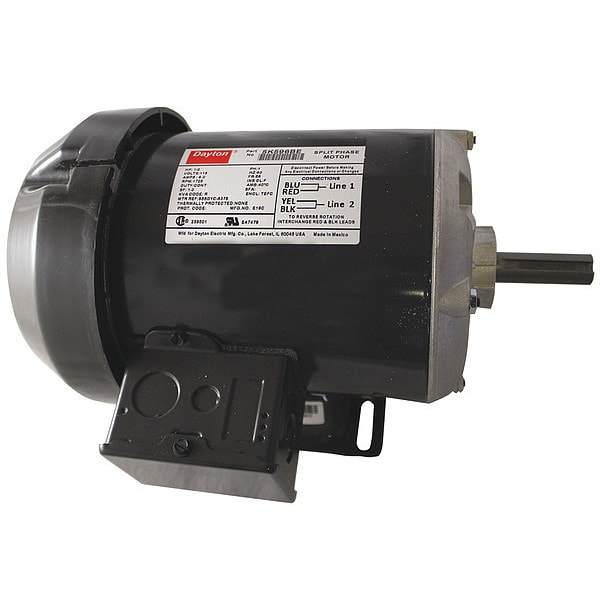

GP Mtr, Split Ph, TEFC, 1/2 HP, 1725 rpm, 56

DAYTON| Zoro #: G0536094| Mfr #: 5K596

$180.00 /ea

This item ships free. Details.Standard ground shipping.
Details:
No. of Speeds: 1
Overall Length: 11-1/2"
Voltage Compatibility: 115, 120, 115/208-230, 115/230, 120/240
Save 15%. Sign up for Z-mail.

Specifications

Zoro #: G0536094 Mfr #: 5K596
No. of Speeds: 1Overall Length: 11-1/2"
Voltage Compatibility: 115, 120, 115/208-230, 115/230, 120/240Motor Mounting Type: Rigid Base
Duty: ContinuousRPM Range: 1701-1800
Includes: Conduit BoxPhase: 1
Length Less Shaft: 9-10/16"Motor Thermal Protection: None
Frame Material: Rolled steelFrame: 56
Voltage: 115Motor Enclosure Design: Totally Enclosed Fan-Cooled
HP: 1/2Motor Shaft Design: Keyed
Motor Design: Split-PhaseShaft Length: 1-7/8"
Standards: UL (E47479), CSA (156060)RPM Group: 1701-1800
Max. Ambient Temp.: 40 Degrees CHz: 60
Motor Application: General ApplicationShaft Dia.: 5/8"
Nominal Efficiency: 63.9%Motor Service Factor: 1.00
Motor Bearings: BallManufacturers Warranty Length: 1 yr.
Nameplate RPM: 1725Motor Efficiency Group:
Full Load Amps: 8.0Motor Shaft Rotation: CW/CCW
Ins. Class: FCountry of Origin (subject to change): Mexico

Description

General Purpose Motor, Split-Phase, Totally Enclosed Fan-Cooled, 1/2 HP, Nameplate RPM 1725, 56 Frame, Voltage 115, 60 Hz, 1 Phase, 8.0 Full Load Amps, No. of Speeds 1, Motor Mounting Type Rigid Base, Motor Thermal Protection None, Ins. Class F, 1.00 Motor Service Factor, Ball Motor Bearings, Frame Material Rolled Steel, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Overall Length 11-1/2 In., Motor Shaft Design Keyed
