Shop All Split-Phase AC Motors
Dayton

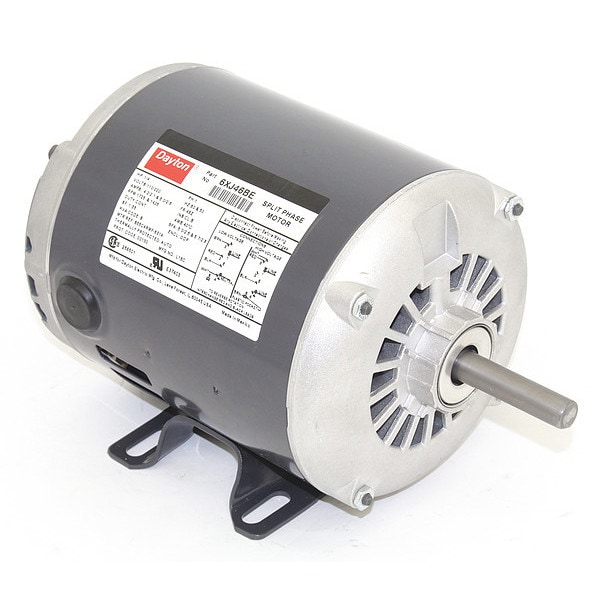

GP Mtr, Splt Ph, 1/4HP, 1725/1425rpm, 48

product price: $174.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Motor Shaft Rotation CW/CCW
  • Motor Shaft Design Flat
  • Full Load Amps 4.2/2.1 A
  • Motor Application General Application
  • Motor Efficiency Group Standard Efficient
See all product information

Product Information

Dimensions

Manufacturers Warranty Length 1 yr
Length Less Shaft 7 1/2 in
Shaft Dia. 1/2 in
Shaft Length 1 7/8 in
Overall Length 9 1/2 in

Details

Motor Shaft Rotation CW/CCW
Motor Shaft Design Flat
Full Load Amps 4.2/2.1 A
Motor Application General Application
Motor Efficiency Group Standard Efficient
Motor Enclosure Design Open Dripproof
Footnotes 6
Item General Purpose Motor
Nameplate RPM 1,725
No. of Speeds 1
HP 1/4
Frame Material Rolled steel
Ins. Class B
Max. Ambient Temp. 104 Degrees F
Voltage 110/220V AC
Hz 60/50 Hz
Motor Frame Material Rolled Steel
Nominal Efficiency 59.5 %
Motor Bearings Ball
Motor Thermal Protection Auto
RPM Range 1,701-1,800
RPM Group 1701-1800
Motor Service Factor 1.35
Motor Mounting Type Rigid Base
Voltage Compatibility 110/220-230V AC
Duty Continuous
Standards CSA (156060), UL (E47479)
Motor Design Split-Phase
Phase Single
Frame 48Z
Duty Cycle Continuous
RPM @ 50Hz 1,425

Description

General Purpose Motor, Single Phase, Motor Design Split-Phase, 1/4 HP, Nameplate RPM 1,725, No. of Speeds 1, Voltage 110/220V AC, Full Load Amps 4.2/2.1 A, 48Z Frame, Hz 60/50 Hz, Motor Service Factor 1.35, Max. Ambient Temp. 104 Degrees F, Motor Thermal Protection Auto, Duty Cycle Continuous, Ins. Class B, Motor Enclosure Design Open Dripproof, Motor Shaft Rotation CW/CCW, Motor Mounting Type Rigid Base, Motor Shaft Design Flat, Motor Frame Material Rolled Steel
