Shop DAYTON

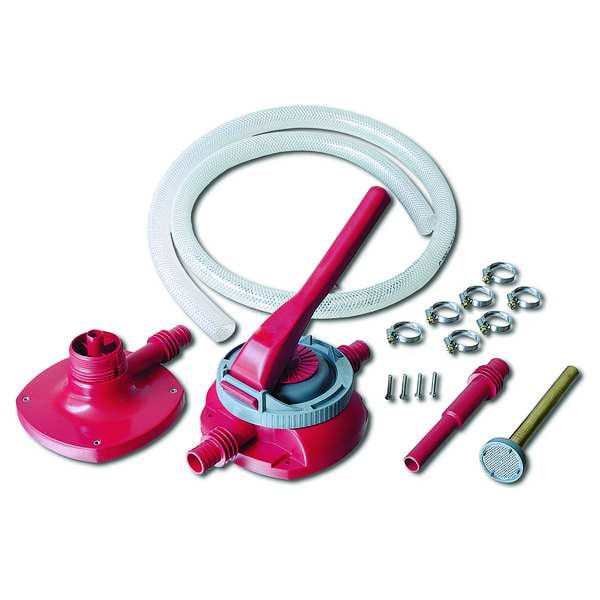

Hand Drum, Lever, Polyacetal, 1-1/4In OD

  • Mfr # 4AYD5

  • Zoro # G0400601

product price:
$
148.99
/ea
Free Shipping & Returns
Zoro's best price: not eligible for any other offers or promotions

Key Features

Action Type
Lever
For Media Type
Antifreeze, Automatic Transmission Fluid, Biodiesel, Diesel Fuel, Gasoline, Kerosene, Motor Oil, Water
For Container Size
55 gal
Max. Flow Rate
4.4 gal per 120 strokes
Max. Viscosity
1,680 SUS
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
4AYD5
Zoro #
G0400601
UPC #
190735321812
Country of Origin
India

Dimensions

For Container Size
55 gal
Adapter Dia.
2"
Overall Length
15 3/10 in
Discharge Tube Length
39-3/8"
Inlet Size
1"
Suction Tube Length
39.3750 in
Bung Connection Dia.
2 in
Overall Height
15 1/10 in
Inlet Diameter
3/4 in
Overall Width
6 89/100 in
Discharge Diameter
1 in
Manufacturers Warranty Length
1 yr
Wire Rope Length
15 3/10 in
Length
15 3/10 in

Details

Item
Hand Operated Drum Pump
Action Type
Lever
For Media Type
Antifreeze, Automatic Transmission Fluid, Biodiesel, Diesel Fuel, Gasoline, Kerosene, Motor Oil, Water
Max. Flow Rate
4.4 gal per 120 strokes
Max. Viscosity
1,680 SUS
Wetted Materials
Polyacetal, PVC, Stainless Steel, Polyurethane
Includes Suction Tube
Yes
For Use With
Water, Sea Water, Diesel, Kerosene, Gasoline, Mineral Oil, Heating Oil, Synthetic Oil, Antifreeze, Emulsion and Liquids With 1/16 in Diameter Solids
Discharge Tube Outlet ID
1 in
Discharge Tube Outlet OD
1 1/4 in
Type
Lever Action
Self-Priming
Yes
Adapter Material
Polyacetal
Includes
Delivery Nozzle, Discharge Hose, Drum Attachment, Hose Clamps, Hose for Drum Attachment, Screws(4), Stainless Steel Strainer, Suction Hose
Adapter Type
2" Bung
Discharge Tubing Material
PVC
Ounces per Stroke
Up to 4.4 GPM
Suction Tube Type
Hose
Metered
No
Piston Material
Thermoplastic Polyurethane
Features
Dimensions with Drum Attachment (in), 3/4 Inlet, Discharge Tube Length - 78 47/64, Suction Tube Length - 49 7/32, Suction Tube Outlet ID - 25/32, Suction Tube Outlet OD - 1 3/64
Max. Flow GPM
4.4
Housing Material - Pumps
Polyacetal
Compatible Chemicals
Antifreeze (Coolant), Automatic Transmission Fluid, Biodiesel, Deionized Water, Diesel Fuel, Fresh Water, Gasoline, Kerosene, Motor Oil, Salt Water
Max. Fluid Temp.
104 Degrees F
For Container Type
Drum
Includes Bung Adapter
Yes
Power Source
Hand Operated
Not Recommended Chemicals
DEF, Ethyl (Ethanol), Isopropyl (Isopropanol), Lithium Grease, Methyl Ethyl Ketone (MEK), Sodium Hypochlorite/Bleach (to 20%)
Includes Discharge Hose
Yes
Includes Nozzle
No
Suction Tube OD
1 1/4 in
Gear Lube
NT
Body Material
Polyacetal
Self-Priming Lift - Maximum
3.2 ft
Maximum Viscosity
1,680 SUS
Mounting Style
Portable
Inlet Standard
Hose Barbed
Flow Rate
4.385 gpm

Description

Hand Operated Drum Pump, Self-Priming Yes, Metered No, Includes Discharge Hose Yes, Piston Material Thermoplastic Polyurethane, Features Dimensions with Drum Attachment (in), 3/4 Inlet, Discharge Tube Length - 78 47/64, Suction Tube Length - 49 7/32, Suction Tube Outlet ID - 25/32, Suction Tube Outlet OD - 1 3/64, For Use With Water, Sea Water, Diesel, Kerosene, Gasoline, Mineral Oil, Heating Oil, Synthetic Oil, Antifreeze, Emulsion and Liquids With 1/16 in Diameter Solids..

Restrictions

WARNING: This product can expose you to chemicals including Lead, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
