  9. Hand Drum Pump, Polypropylene, 1/4In OD
Dayton

Hand Drum Pump, Polypropylene, 1/4In OD

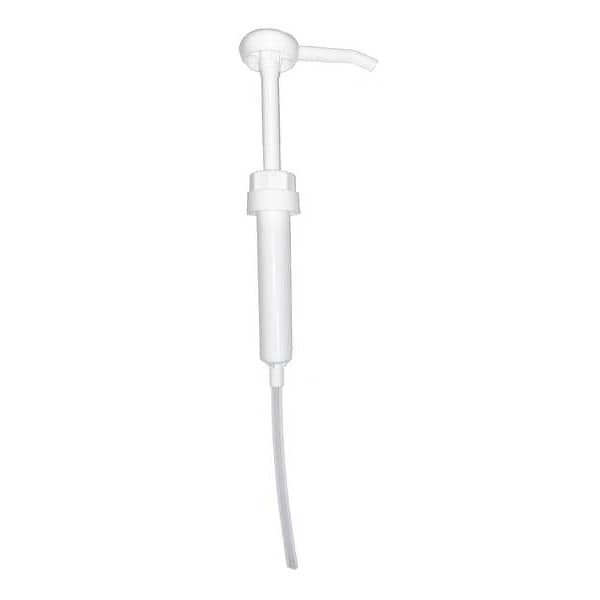

Dayton Hand Drum Pump, Polypropylene, 1/4In OD 5UWG4
Hover or click to zoom Tap to zoom
$3.78
  • Suction Tube Length: 11 in
  • Action Type: Piston
  • For Media Type: General Purpose
See full product details
Orders over $75 ship free.
Total: $3.78

Dayton #5UWG4 Specifications

  • Suction Tube Length: 11 in
  • Action Type: Piston
  • For Media Type: General Purpose
  • For Container Size: 1 gal
  • Max. Flow Rate: 1 oz per stroke
  • Max. Viscosity: 1,000 SUS
  • Wetted Materials: Polyethylene, Polypropylene
  • Max. Fluid Temp.: 120 Degrees F
  • Metered: No
  • Discharge Tube Outlet OD: 1/4 in
  • Includes Suction Tube: Yes
  • Housing Material: Polypropylene
  • Inlet Size: 1"
  • Adapter Material: Polypropylene
  • Self-Priming: Yes
  • Type: Piston Action
  • Item: Hand Operated Drum Pump
  • Manufacturers Warranty Length: 1 yr.
  • Discharge Tubing Material: Polyethylene
  • Pump Body Material: Polypropylene
  • Adapter Type: 38/400 NPT
  • Max. Liquid Temp.: 120 Degrees F
  • Ounces per Stroke: 1 oz.
  • Max. Temp.: 120 Degrees F
  • Discharge Tube Outlet OD Size: 1/4"
  • Overall Length: 4"
  • For Use With: Compatible Liquids
  • Discharge Tube Length: 2-1/4"
  • Height: 21-1/2"
  • Application: Compatible Liquids
  • Outlet Size: 1/4"
  • Power Source: Hand Operated
  • Housing Material - Pumps: Polypropylene
  • Includes Spout: Yes
  • For Container Type: Jug
  • Includes Nozzle: No
  • Includes Discharge Hose: No
  • Height Above Container: 5 1/2 in
  • Includes Bung Adapter: Yes
  • Country of Origin (subject to change): India

Description

Hand Operated Drum Pump, Action Type Piston, Pump Body Material Polypropylene, Wetted Materials Polyethylene, Polypropylene, Discharge Tubing Material Polyethylene, For Use On Most 1-gallon Jugs, Max. Temp. 120 Degrees F, Ounces per Stroke 1 oz., Max. Viscosity 1,000 SUS, Inlet Size 1 In., Outlet Size 1/4 In., Discharge Tube Outlet OD Size 1/4 In., Discharge Tube Length 2-1/4 In., Suction Tube Length 11 in, Overall Length 4 In., Metered No, Adapter Type 38/400 NPT, Adapter Material Polypropylene
