Shop DAYTON

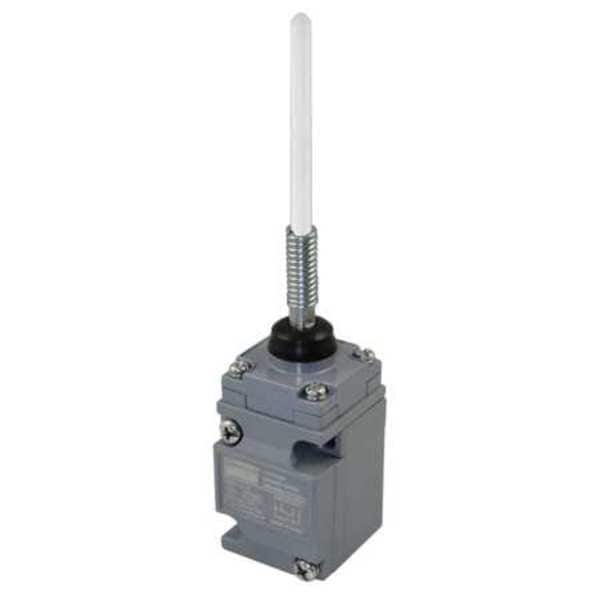

Heavy Duty Limit Switch, Wobble Stick, SPDT, 10A at 600V AC, Actuator Location: Top

  • Mfr # 11X450

  • Zoro # G4022462

product price:
$
251.99
/ea
Free Shipping & Returns

Key Features

Basic Actuator Style - Limit Switch
Wobble Stick
Actuator Style - Limit Switch
Wobble Stick
Contact Form- Switches
SPDT
Actuator Location - Limit Switch
Top
AC Contact Rating - Limit Switch
10A at 600V
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
11X450
Zoro #
G4022462
UPC #
190735111420
Country of Origin
China
Item
Heavy Duty Limit Switch
Basic Actuator Style - Limit Switch
Wobble Stick
Actuator Style - Limit Switch
Wobble Stick
Contact Form- Switches
SPDT
Actuator Location - Limit Switch
Top
AC Contact Rating - Limit Switch
10A at 600V
DC Contact Rating - Limit Switch
10A at 600V
Body Style - Limit Switch
Miniature
Mounting - Limit Switch
Surface
Operating Temp. Range
-20 Degrees to 185 Degrees F
Contact Form
SPDT
Actuator Style (Limit Switch)
Wobble Stick
IP Rating
IP67
Basic Actuator Style (Limit Switch)
Wobble Stick
Limit Switch Style
Heavy Duty Limit Switch
Mounting Hole - Limit Switch
(2) 0.20 in dia
Contact Form - Limit Switch
SPDT
Travel
Maximum Pre-Travel N/A, Minimum Over-Travel N/A
Wiring Entry
1/2 in NPT
Actuator Style
Wobble Stick
Boot Sealed Actuator - Limit Switch
No
Standards
CE, CSA, UL Listed
Electrical Connection
Screw Terminals
Actuator Location
Top
Series
Dayton
Operating Force
56.66 in-oz
DC Contact Rating
10 A @ 600 V
Mounting Hole Spacing - Limit Switch
1.46 in x 1.16 in
Number of Poles
1
Stem Thread - Limit Switch
No Stem
Voltage Rating
600VAC/DC
Body Style (Limit Switch)
Miniature
Actuator Location (Limit Switch)
Top
Boot Sealed Actuator (Limit Switch)
No
NEMA Rating
13, 3, 4, 4X, 6P
AC Contact Rating
10 A @ 600 V
Movement
Omnidirectional
Amps
10
Mounting Hole Pattern - Limit Switch
2 Hole Diagonal
NEMA Enclosure Rating
13, 3, 4, 4X, 6P
Operating Temperature - Maximum
185 Degrees F
Number of Mounting Holes
2
Boot Sealed Actuator
No Boot Included
Operating Torque - Maximum
3.54 in-lb
Mounting Hole Vertical Center to Center Distance
37 mm
Mounting Style
Surface
Mounting Hole Horizontal Center to Center Distance
29 mm
Directional Movement
Omnidirectional
Action
A
Operating Temperature - Minimum
-20 Degrees F

Description

Limit Switch, Actuator Style - Limit Switch Wobble Stick, Actuator Location - Limit Switch Top, AC Contact Rating - Limit Switch 10A @ 600V, DC Contact Rating - Limit Switch 10A @ 600V, Contact Form- Switches SPDT, Body Height - Limit Switch 2.46 in, Body Width - Limit Switch 1.65 in, Body Depth - Limit Switch 1.74 in, Boot Sealed Actuator - Limit Switch No, Body Style - Limit Switch Miniature, NEMA Rating 13, 3, 4, 4X, 6P, Mounting - Limit Switch Surface, Electrical Connection Screw Terminal
