  9. High Head Effluent Pump, 1/2hp, 230ft. Max

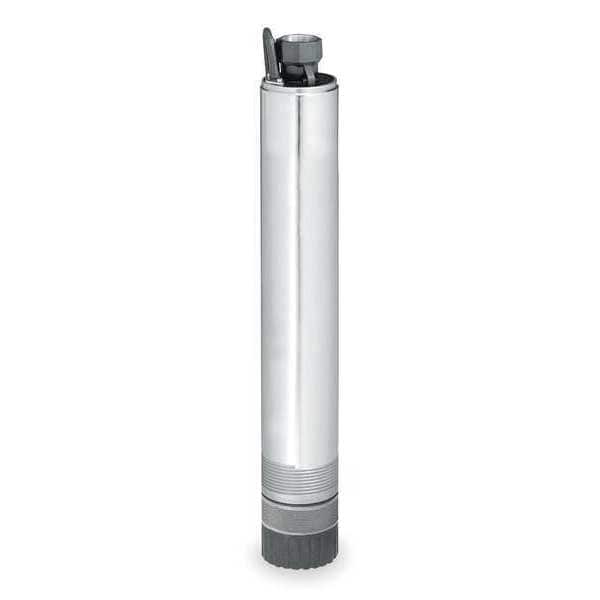

Dayton High Head Effluent Pump, 1/2hp, 230ft. Max 4NY25 - main

High Head Effluent Pump, 1/2hp, 230ft. Max

  • Mfr # 4NY25

  • Zoro # G2187595

product price: $491.99
/ea
Free Shipping & Returns

Key Features

Phase - Pumps
1
Cord Length
10 ft
HP
1/2
Impeller Material
Acetal
Amps
11 A
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
4NY25
Zoro #
G2187595
UPC #
190735331507
Country of Origin
Italy

Dimensions

Cord Length
10 ft
Max. Diameter Solids
1/16 in
Cord Length - Pumps
10 ft.
Diameter
4"
Height
22-1/2"
Max. Dia. Solids
1/16"
Manufacturers Warranty Length
1 yr
Min. Sump Pit Dia.
4 in
Discharge Dia.
1 1/4 in
Overall Height
22 1/2 in
Body Dia.
4 in
Sump Pit Diameter - Minimum
4 in
Solids Diameter - Maximum
1/8 in
Discharge Diameter
1 1/4 in
Body Diameter
4 in

Details

Item
Effluent Pump
Phase - Pumps
1
HP
1/2
Impeller Material
Acetal
Amps
11 A
Body Material
Stainless Steel
Max. Head
230 ft
Switch Actuation
No Switch Included
Switch Type
None
Voltage - Pumps
120VAC
GPM of Water @ 50 Ft. of Head
14.5
Shaft Seal
Buna-N
Input Phase AC
1
Voltage
115V
Duty
Continuous
GPM of Water @ 90 Ft. of Head
12
Amps - Pumps
11.00
GPM of Water @ 150 Ft. of Head
9
GPM of Water @ 200 Ft. of Head
5
Pump Body Material
Stainless Steel
GPM of Water @ 100 Ft. of Head
11.5
Shaft Seal Material - Pumps
Nitrile Rubber
Bearing Type
Ball
Motor RPM
3450
Discharge NPT
1-1/4" F
Phase
Single
GPM of Water @ 60 Ft. of Head
13.9
GPM of Water @ 80 Ft. of Head
12.5
Housing Material
Stainless steel
GPM of Water @ 70 Ft. of Head
13.5
Max. Liquid Temp.
86 Degrees F
Max. Head - Pumps
230 ft.
Pump HP
1/2
Base Material
Composite
Switch Type - Pumps
No Switch Included
Motor Type
PSC
Item - Effluent Pumps
High Head Filtered Submersible Effluent Pump
Impeller Material - Pumps
Composite
Thermal Protection
Auto
Flow Rate @ 80 Ft. of Head
13 gpm
Alarm Included
No
Flow Rate @ 150 Ft. of Head
9 gpm
Discharge Standard
NPT
Discharge Gender
Female
Switch Electrical Connection
No Switch Included
Duty Cycle
Continuous
Discharge
1 1/4 in FNPT
Flow Rate @ 60 Ft. of Head
14 gpm
RPM
3,450 RPM
Rated Voltage
120V AC
Flow Rate @ 100 Ft. of Head
11.5 gpm
Rotation Speed - Maximum
3,450 RPM
Power Source
Corded Electric
For Media Type
Effluent Water
Hazardous Location Class
Not Rated
Horsepower
1/2 hp
Motor Housing Material
Stainless Steel
Shaft Seal Material
Nitrile Rubber
Frequency
60 Hz
Impeller Design
Open
Volute Material
Stainless Steel
Liquid Temperature - Maximum
86 Degrees F
Includes Alarm
No Alarm Included
Feet of Head - Maximum
230 ft
Current
11 A

Description

Effluent Pump, HP 1/2, Rated Voltage 120V AC, Phase - Pumps 1, Amps 11 A, Body Material Stainless Steel, Impeller Material Acetal, Shaft Seal Material - Pumps Nitrile Rubber, Switch Actuation No Switch Included, Switch Electrical Connection No Switch Included, Flow Rate @ 60 Ft. of Head 14 gpm, Flow Rate @ 80 Ft. of Head 13 gpm, Flow Rate @ 100 Ft. of Head 11.5 gpm, Flow Rate @ 150 Ft. of Head 9 gpm, Max. Head 230 ft, Min. Sump Pit Dia. 4 in, Body Dia. 4 in, Overall Height 22 1/2 in
