Dayton

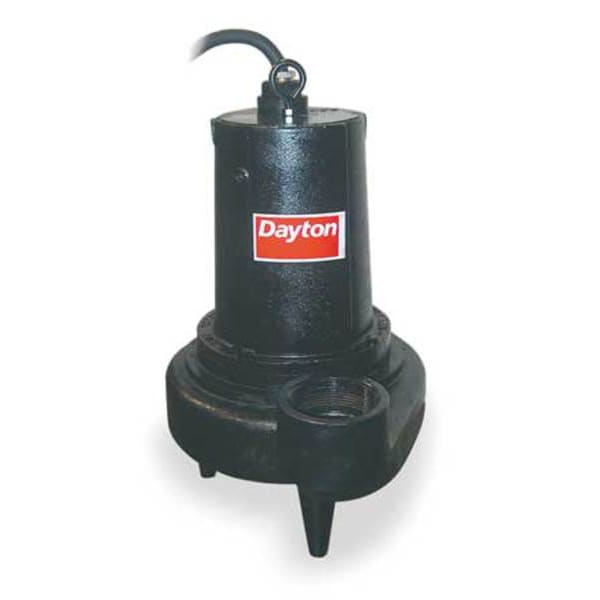

2 HP 3" Manual Submersible Sewage Pump 230V

product price: $1,416.99
/ea
Item requires special delivery charges. A $105.00 per item surcharge will be applied.
Free 30-Day Returns

Key Features

  • HP 2
  • Phase - Pumps 1
  • Switch Actuation No Switch Included
  • Body Material Cast Iron
  • Base Material 303 Stainless Steel
See all product information

Product Information

Dimensions

Max. Diameter Solids 2 1/2 in
Cord Length 25 ft
Diameter 16-23/32"
Max. Dia. Solids 2-1/2"
Cord Length - Pumps 25 ft.
Height 21-1/4"
Body Dia. 16 23/32 in
Overall Height 21 1/4 in
Discharge Dia. 3 in

Details

HP 2
Phase - Pumps 1
Switch Actuation No Switch Included
Body Material Cast Iron
Base Material 303 Stainless Steel
Flow Rate @ 10 Ft. of Head 375 gpm
Max. Head 46 ft
Impeller Material Cast Iron
Motor Type PSC
Item - Sewage Pumps Submersible Sewage Pump
GPM of Water @ 25 Ft. of Head 250
Housing Material Cast iron
Pump Body Material Cast Iron
GPM of Water @ 10 Ft. of Head 375
Amps 19.00
Voltage - Pumps 240VAC
GPM of Water @ 5 Ft. of Head 405
Discharge NPT 3"
Amps - Pumps 19.00
Agency Compliance CSA
GPM of Water @ 40 Ft. of Head 85.0
Impeller Material - Pumps Cast Iron
Shaft Seal Material - Pumps Carbon Ceramic
Max. Liquid Temp. 104 Degrees F
Pump Type Manual
Switch Type None
Input Phase AC 1
Bearing Type Ball
GPM of Water @ 20 Ft. of Head 290
Item Sewage Ejector Pump
Thermal Protection Yes
GPM of Water @ 15 Ft. of Head 335
Switch Type - Pumps No Switch Included
Motor RPM 1750
Shaft Seal Silicon Carbide
Max. Head - Pumps 46 ft.
GPM of Water @ 30 Ft. of Head 200
Voltage 230
Phase 1
Switch Electrical Connection No Switch Included
Flow Rate @ 40 Ft. of Head 85 gpm
Flow Rate @ 20 Ft. of Head 290 gpm
Flow Rate @ 15 Ft. of Head 335 gpm
RPM 1,750 RPM
Rated Voltage 240V AC
Discharge 3 in NPT
Discharge Standard NPT
Type Manual

Description

Sewage Ejector Pump, HP 2, Rated Voltage 240V AC, Phase - Pumps 1, Amps 19.00, Motor Type PSC, Body Material Cast Iron, Impeller Material Cast Iron, Shaft Seal Material - Pumps Carbon Ceramic, Switch Actuation No Switch Included, Switch Electrical Connection No Switch Included, Flow Rate @ 10 Ft. of Head 375 gpm, Flow Rate @ 15 Ft. of Head 335 gpm, Flow Rate @ 20 Ft. of Head 290 gpm, Flow Rate @ 40 Ft. of Head 85 gpm, Max. Diameter Solids 2 1/2 in, Body Dia. 16 23/32 in, Overall Height 21 1/4 in
