  6. High Torque Farm Duty Motor, Capacitor-Start, 1/2 HP, 115/230V AC, 1,725 Nameplate RPM, 56Z Frame

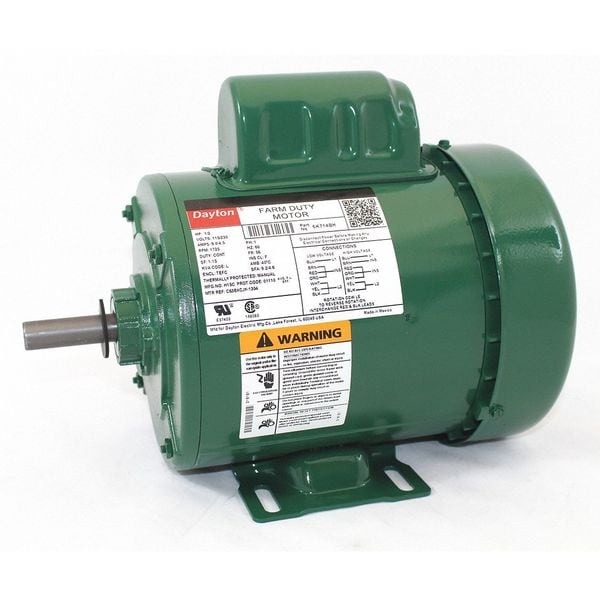

Dayton High Torque Farm Duty Motor, Capacitor-Start, 1/2 HP, 115/230V AC, 1,725 Nameplate RPM, 56Z Frame 6K714 - main

High Torque Farm Duty Motor, Capacitor-Start, 1/2 HP, 115/230V AC, 1,725 Nameplate RPM, 56Z Frame

  • Mfr # 6K714

  • Zoro # G0453717

product price:  $463.99
/ea
Free Shipping & Returns

Key Features

Motor Design
Capacitor-Start
Phase
Single
RPM Range
1,701-1,800
Voltage
115/230V AC
Frame
56Z
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
6K714
Zoro #
G0453717
UPC #
190735366349
Country of Origin
Mexico

Dimensions

Shaft Dia.
517/1000 in
Length Less Shaft
9 7/8 in
Shaft Length
2 1/4 in
Overall Length
11 3/4 in

Details

Item
High Torque Farm Duty Motor
Motor Design
Capacitor-Start
Phase
Single
HP
1/2
RPM Range
1,701-1,800
Voltage
115/230V AC
Frame
56Z
Motor Service Factor
1.15
Motor Thermal Protection
Manual
Motor Enclosure Design
Totally Enclosed Fan-Cooled
Nameplate RPM
1,725
Motor Application
Farm Duty
Motor Frame Material
Rolled Steel
Motor Mounting Position
All Angle
Motor Mounting Type
Rigid Base
Motor Shaft Design
Keyed
Motor Sub Application
High Torque
Motor Shaft Rotation
CW/CCW
Standards
CSA Certified (258501), UL Recognized (E37403)
Duty
Continuous
Ins. Class
F
Frame Material
Rolled steel
Nominal Efficiency
63.4 %
Max. Ambient Temperature
40 Degrees C
Item - Farm Duty Motors
High Torque Farm Duty Motor
Motor Bearings
Ball
Capacitor Required
Included
Full Load Amps
9.0/4.5 A
Voltage Compatibility
115/200-230V AC, 115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 230V AC, 240V AC
Finish
Green
Hz
60 Hz
Includes
Shaft Key, Gasketed Conduit Box and Shaft Slinger
Duty Cycle
Continuous
No. of Speeds
1
Max. Ambient Temp.
40 Degrees C

Description

Farm Duty Motor, Single Phase, Motor Design Capacitor-Start, 1/2 hp HP, Nameplate RPM 1,725 RPM, No. of Speeds 1, Voltage 115/230V AC, Full Load Amps 9.0/4.5 A, 56Z Frame, 60 Hz Hz, Motor Service Factor 1.15, Motor Thermal Protection Manual, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Fan Cooled, Motor Mounting Type Rigid Base, Motor Mounting Position All Angle, Motor Frame Material Steel, Finish Green
