Shop CENTURY

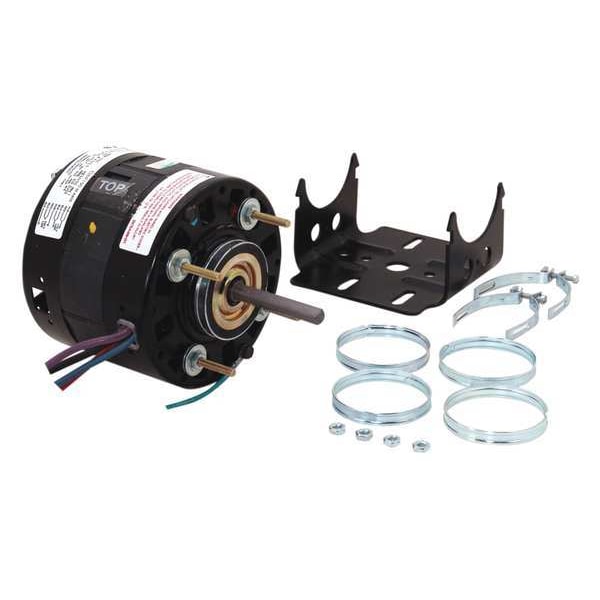

Mtr, Sh Pole, 1/10 HP, 1550,115/208-230, 42Y

  • Mfr # RF4401

  • Zoro # G2022641

product price:  $202.99
/ea
Free Shipping & Returns

Key Features

Motor Mounting Position
All Angle
Standards
CSA Certified, UL Recognized
Ins. Class
A
Shaft Dia.
3/8 in
RPM Range
1,501-1,600
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
RF4401
Zoro #
G2022641
UPC #
-
Country of Origin
Mexico

Dimensions

Shaft Dia.
3/8 in
Length Less Shaft
4 15/16 in
Shaft Length
2 1/4 in
Resilient Ring Dia.
2 1/4 in
Body Dia.
5 in
Bolt Circle Dia.
3 1/2 in
Stud Size
#10-32
Overall Length
7 3/16 in
Lead Length
29 in
Mounting Stud Thread Size
#10-32
Frame Size
42Y
Shaft Diameter
3/8 in
Resilient Ring Diameter
2 1/4 in
Body Diameter
5 in
Bolt Circle Diameter
3 1/2 in
Wire Rope Length
7 3/16 in

Details

Motor Mounting Position
All Angle
Standards
CSA Certified, UL Recognized
Ins. Class
A
Item
HVAC Motor
RPM Range
1,501-1,600
Motor Thermal Protection
Auto
Ring to Ring Center
4 9/16 in
Mounting Stud Pattern
2 1/2 in x 2 1/2 in
Motor Service Factor
1
Motor Mounting Type
Ring/Stud
Nameplate RPM
1,550
Motor Design
Shaded Pole
No. of Speeds
1
Motor Sub Application
Refrigerator/Freezer
Frame
42Y
Motor Shaft Rotation
CCWSE
Voltage
115/208-230V AC
Mounting Stud Location
4/Shaft End
Includes
Extended Studs, Hex Nuts, Mounting Clamps, Mounting Ring Adaptors, Resilient Rings
Voltage Compatibility
115/200-230V AC, 115/208-230V AC, 115V AC, 208-230V AC
HP
1/10
Full Load Amps
4.0/2.0 A
Motor Application
HVAC/R
Motor Enclosure Design
Open Air-Over
Motor Shaft Design
Flat
Motor Bearings
Sleeve
Max. Ambient Temp.
40 Degrees C
Application
Unit Heater
Phase
Single
Hz
60 Hz
Capacitor Required
Capacitor Not Required
Duty
Continuous
Usable @ 208V
Usable at 208V
Number of Shafts
1
Mounting Holes
(4) #10-32
Duty Cycle
Continuous
Weight
10 lb
Usable @ 200V
Not Usable at 200V
Stud Quantity
4
Number of Speeds
1
Mounting
Cradle Base
Nameplate Service Factor @ 60 Hz
1
Drive Type
Direct Drive
Shaft Design
Flat
Full Load Current @ 60 Hz
4.0/2.0 A
Frame Material
Steel
Sub Application
General Purpose
Ambient Temperature - Maximum
40 Degrees C
Wattage
70 W
Frequency
60 Hz
Mounting Position
All Angle
Bearing Type
Sleeve
Insulation Class
A
Motor Enclosure Type
Open Air Over

Description

HVAC Motor, Single Phase, Motor Design Shaded Pole, 1/10 hp HP, Nameplate RPM 1,550 RPM, No. of Speeds 1, Voltage 115/208-230V AC, 4.0/2.0 A Full Load Amps, 42Y Frame, Output Watts 70 W, 60 Hz Hz, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class A, Duty Cycle Continuous, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CCWSE, Motor Enclosure Design Open Air Over, Motor Mounting Type Stud
