  9. High Visibility High Visibility Industrial Fan, Ceiling, IBeam, Wall Mount, 30 in Blade Dia, 115V

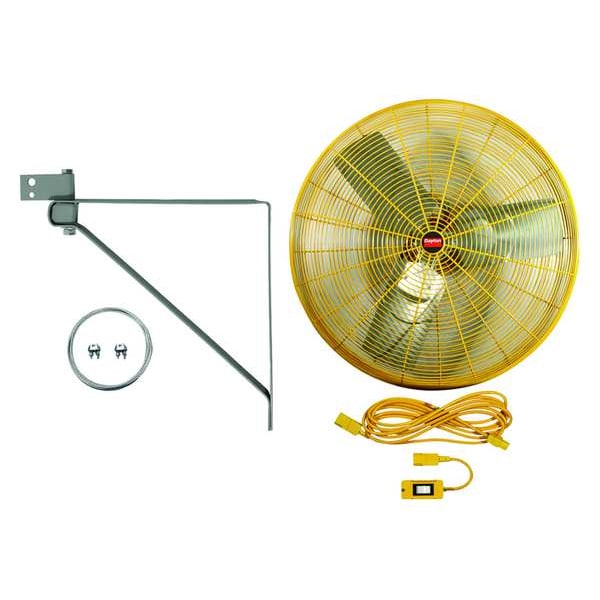

Dayton High Visibility High Visibility Industrial Fan, Ceiling, IBeam, Wall Mount, 30 in Blade Dia, 115V 7DJ31 - main

High Visibility High Visibility Industrial Fan, Ceiling, IBeam, Wall Mount, 30 in Blade Dia, 115V

  • Mfr # 7DJ31

  • Zoro # G2606517

product price: $524.99
/ea
Free Shipping & Returns

Key Features

Blade Diameter
30 in
Oscillation
Non-Oscillating
Number of Speeds
2
Voltage
115V
Phase
1
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
7DJ31
Zoro #
G2606517
UPC #
00194484318116
Country of Origin
China

Dimensions

Blade Diameter
30 in
Max. Depth
14-1/4 in
Outside Dia.
33 in
Shaft Dia.
1/2 in
Width
33 in
Height
33 in
Fan Cord Length
2 ft
Depth
14 1/4 in

Details

Oscillation
Non-Oscillating
Number of Speeds
2
Voltage
115V
Phase
1
Motor HP
1/2
Air Flow
8,712/9,375 cfm
Drive Type
Direct Drive
Blade Material
Mill Finish Aluminum
Sound Level
77 dBA
Item
High Visibility Industrial Fan
Mobile/Stationary
Stationary
Number of Blades
3
Motor Enclosure
Totally Enclosed Air Over
Application
Spot Cooling and People Cooling
Wire Guard Finish
Polyester Powder Coated Yellow
Standards
UL, cUL, OSHA
Includes
15 ft. Extension Cord, 3 Position Drop Cord Switch, (1) 1ZCP6 Mounting Bracket
Hz
60 Hz
Air Velocity @ 40 Ft.
320 fpm
CFM High
9375
Fan Mounting Location
Ceiling, IBeam, Wall
Bearing Type
Ball
Motor RPM
1,075/750 RPM
Air Velocity @ 60 Ft.
140 fpm
Fan Style
High Visibility
Environmental Applications
Industrial
Assembled
Yes
Motor Insulation
Class B
Fan Accessory Style
High Visibility
Thermal Protection
Auto
CFM Low
8712
Air Velocity @ 20 Ft.
615/330 fpm
Air Velocity @ 10 Ft.
865/465 fpm
Max. Ambient Temp.
104 Degrees F
Guard Material
Steel
Housing Material
Steel
Assembly Required
No
Amps
3.7/3.12
Fan Housing Material
Steel
RPM
1075/750
Wheeled Base
Stationary
Material
Steel
Color
Yellow
Motor hp
1/2 hp

Description

Mounted Fan, Blade Dia. 30 in, Stationary, Non-Oscillating, 2 Speeds, Voltage 115V AC, 1 Phase, CFM High 9375, CFM Low 8712, Air Velocity @ 20 Ft. 615/330 fpm, Motor HP 1/2 hp, Motor RPM 1075/600, Operating Amps 3.7/3.12, Fan Mounting Location Ceiling, Post, Wall, Fan Accessory Style High Visibility, Fan RPM 1075/750, Sound Level 77 dBA, Max. Ambient Temp. 104 Degrees F, Hz 60 Hz, Drive Type Direct Drive, Outside Dia. 33 In., Height 33 in, Width 33 in, Max. Depth 14-1/4 In., Cord Length 2 ft.
